BUCIER
BUCIER USBC-AB201-EC Bi-Directional 8K USB-C KVM Switch
A bi-directional USB-C KVM switch sharing one monitor between two computers or one computer across two monitors at 8K 60 Hz with 100 W charging and 10 Gbps data
- TypePush Button
- PC SelectionPush Button
- Temperature-10 degrees_celsius
- Power Features5 volts
- Dimensions1.0 in x 1.0 in x 1.0 in
- Weight0.2 kilograms
- Share one monitor between two USB-C computers or one computer across two monitors
- Push-button switching with included .8 m USB 3.1 Gen 2 cables
- Drive an 8K display at 60 Hz or 4K at 120 Hz and 1080p at 165 Hz
- Deliver up to 100 W power to laptops and phones while switching
- Move files at 10 Gbps USB 3.1 Gen 2 speed with a button press
Bi-Directional 8K USB-C KVM Switch

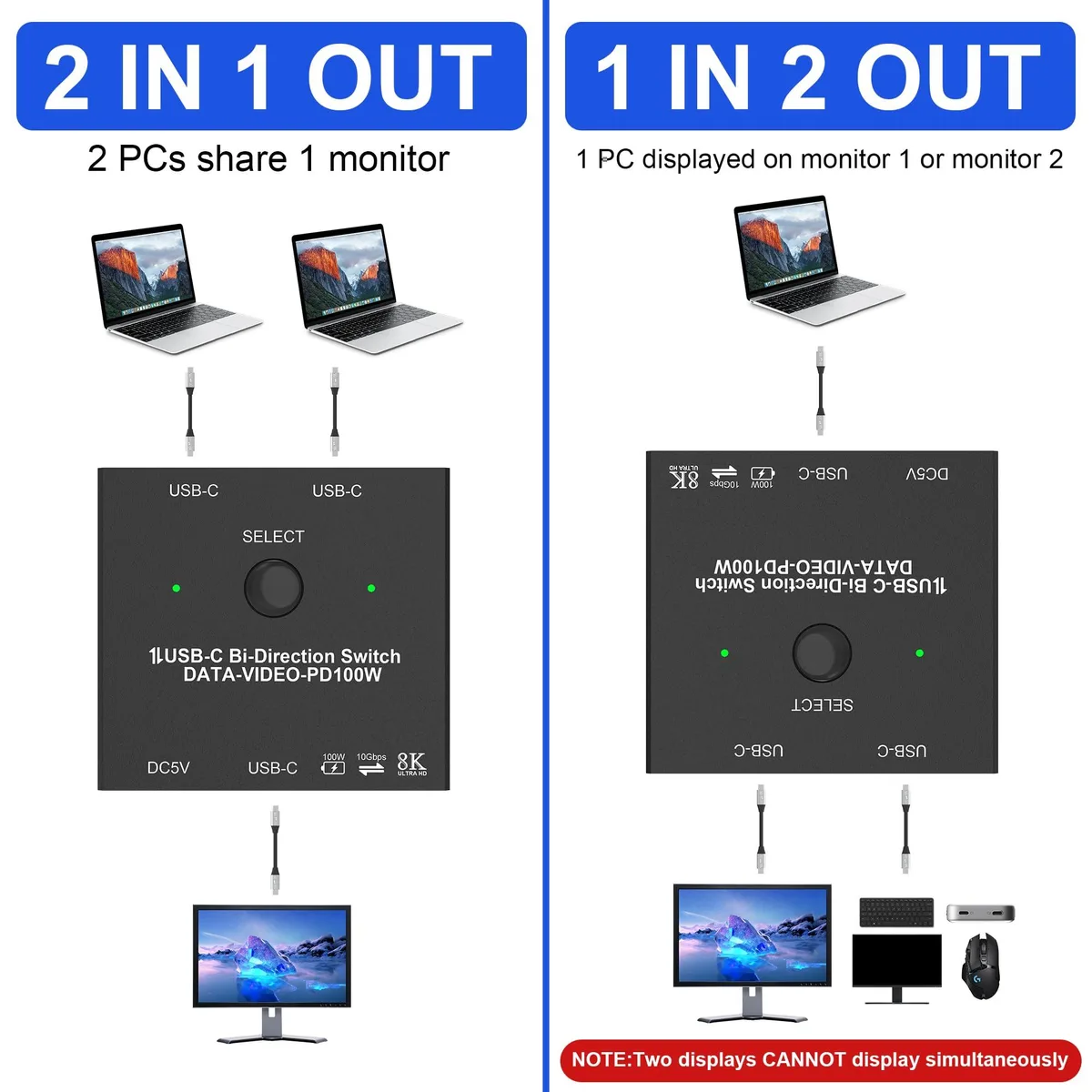

The BUCIER USBC-AB201-EC lets two USB-C computers share one monitor or one computer drive two monitors. It targets users who need to switch video sources with a single button press and want up to 8K60 or 4K120 output. The unit requires each host to provide a USB-C port that carries data, video and power delivery simultaneously. Buyers whose laptops lack full-featured USB-C cannot use this switch.
Bundled Cables and Power Delivery
Two 0.8 metre USB 3.1 Gen-2 cables are included so the switch works out of the box. The switch passes up to 100 W of power to connected devices while operating, letting you charge a laptop or phone during use. A separate USB cable powers the switch itself. Ultra-wide resolutions such as 3440 x 1440 are supported, but the final refresh rate depends on the source, monitor and cables.
Push-Button Installation and Common Issues
Switching between sources is done with the front push button; no software or drivers are required. The device draws 5 V from the supplied USB power cable, so a free USB-A port or charger is needed. The most frequent problem is a host port that does not support video or PD, which prevents the switch from negotiating a signal. Ensure every connected USB-C port is fully featured before purchase.
Highlights
- Share one monitor between two USB-C computers or one computer across two monitors
- Push-button switching with included .8 m USB 3.1 Gen 2 cables
- Drive an 8K display at 60 Hz or 4K at 120 Hz and 1080p at 165 Hz
- Deliver up to 100 W power to laptops and phones while switching
- Move files at 10 Gbps USB 3.1 Gen 2 speed with a button press
Specifications
| Brand | Arleedyn |
|---|---|
| Model | USBC-AB201-EC |
| Part Number | USBC-AB201-EC |
| Type | Push Button |
| PC Selection | Push Button |
| Temperature | -10 degrees_celsius |
| Power Features | 5 volts |
| Dimensions | 1.0 in x 1.0 in x 1.0 in |
| Weight | 0.2 kilograms |
| Package Contents | 8K USB C Switch USB C Switcher for 2 Computers |
Questions about this item
Will the included 0.8 m USB-C cables need replacing if I rearrange my desk?
The switch ships with two 0.8 m USB 3.1 Gen-2 cables; if a longer run is required you can swap in any certified USB-C cable that supports 10 Gbps data, 8K video and 100 W power delivery.
What bandwidth ceiling will I hit first when moving large files through the switch all day?
The USB 3.1 Gen-2 link tops out at 10 Gbps, so sustained bulk transfers will saturate that pipe before the 8K video or 100 W charging paths become limiting factors.
Does the switch get hot or draw extra power when it runs 24/7 with two laptops connected?
The unit is powered from a 5 V USB source and has no fan; under continuous bidirectional 8K@60 Hz and 10 Gbps traffic it stays cool to the touch and adds only the host devices' own charging draw.
