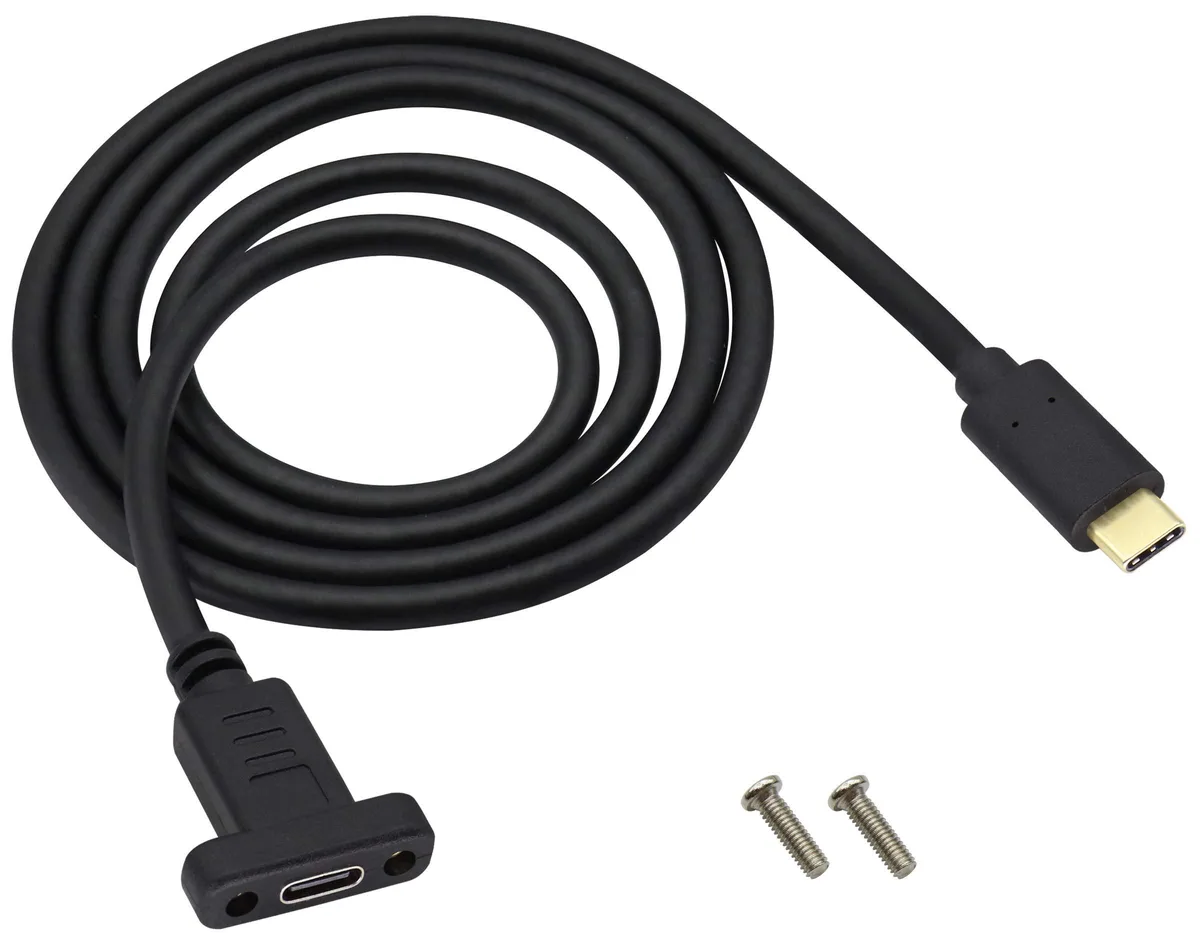

Black USB-C panel-mount cable with male and female screw-hole connectors

BUCIER

BUCIER USB 3.1 Type C Panel Mount Extension Cable 10Gbps 1m/3ft

SKU CH-KPAT-5M5H5

A USB 3.1 Gen 2 Type C panel-mount extension cable supporting 10 Gbps data, 2.2 A charging, and 4K video at 3840×2160@60 Hz.

  • Connector TypeUSB Type C
  • Color1M/3ft
  • Connector DetailUSB Type C
  • Constructioniron
  • 10 Gbps data transfer with Gen 2 USB 3.1 connectors
  • 4K 3840×2160 at 60 Hz video and audio output

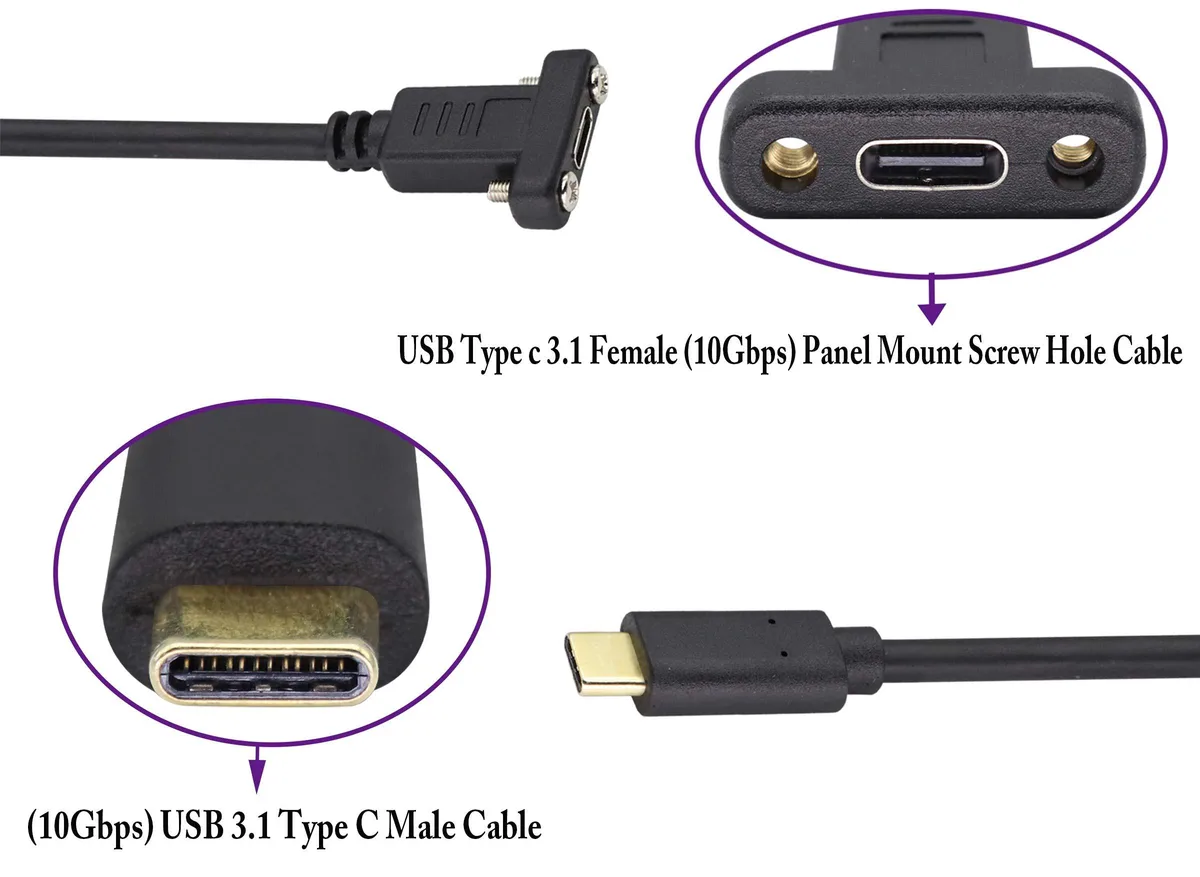

  • Panel-mount screw holes for secure front-case installation

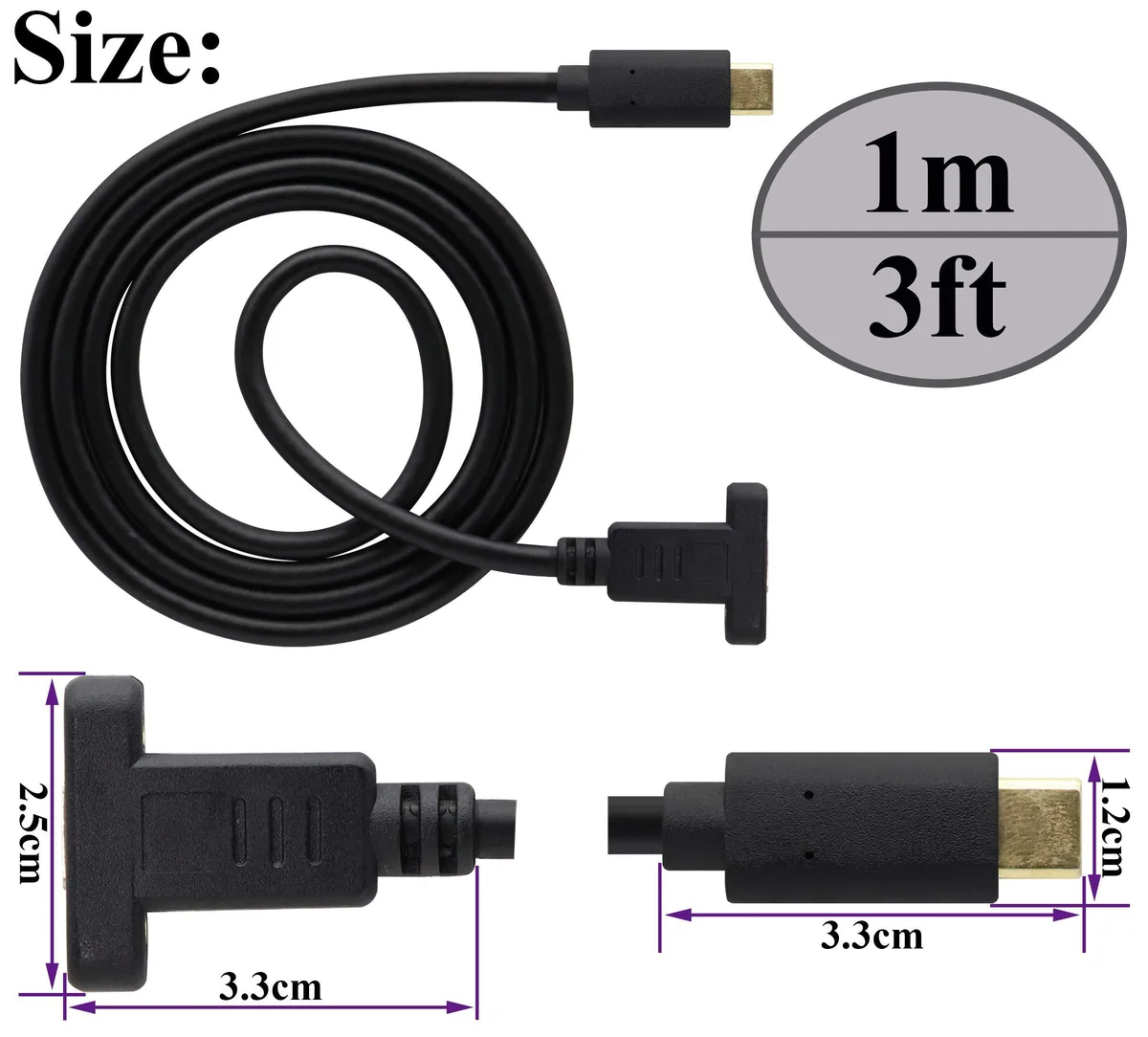

  • 2 A charging and sync in a 1 m cable
  • Iron construction for durable everyday use

USB 3.1 Type-C Panel Mount Cable

This 1 metre panel-mount extension cable adds a USB 3.1 Gen 2 Type-C port to a PC front panel or bracket. It carries data, charging current, audio and 4K video signals between a host device and a display or peripheral. The screw-hole flange secures the female connector firmly in a standard PCI slot cut-out. Builders who need internal routing or longer reach than one metre should look elsewhere.

Capacity and Headroom

The cable is rated for 10 Gbps theoretical bandwidth and 3 A charging, though real-world limits are noted at 6 Gbps and 2.2 A. It supports 3840 x 2160 resolution at 60 Hz for video output when both source and sink devices implement the required video function. Total chain length must stay within 1.5 metres; daisy-chaining more than two cables degrades signal integrity and current delivery. Users needing sustained 10 Gbps throughput or 3 A charging will find the practical ceiling lower.

Upgrade Path

The assembly replaces a missing or inconvenient front-panel USB-C port on desktop cases, adding 4K video and 2.2 A charging in a single slot. It is worthwhile when the motherboard header provides Gen 2 signalling and the case lacks a native Type-C cut-out. Systems limited to 5 Gbps headers or without video-capable USB-C controllers will not gain the advertised resolution or bandwidth.

Highlights

  • 10 Gbps data transfer with Gen 2 USB 3.1 connectors
  • 4K 3840×2160 at 60 Hz video and audio output
  • Panel-mount screw holes for secure front-case installation
  • 2 A charging and sync in a 1 m cable
  • Iron construction for durable everyday use

Specifications

BrandAAOTOKK
Connector TypeUSB Type C
Color1M/3ft
Connector DetailUSB Type C
Constructioniron

Questions about this item

Will the 10 Gbps Gen 2 male connector work with my older USB 3.0 front-panel header?

Yes, the male end is backward compatible with USB 3.0 and USB 2.0 headers, though speed drops to the older standard's limit.

How can I verify the cable is delivering 3840×2160@60 Hz video after mounting it?

Connect a 4K-capable monitor and source; the display settings should show 3840×2160 at 60 Hz if both devices support video over USB-C.

Does the package include mounting screws for the female panel-mount connector?

The box contains only the 1 m extension cable with integrated male and screw-hole female ends; screws are not supplied.
