Six small green circuit boards with USB-C ports and DIP switches

BUCIER

BUCIER SY070 USB-C PD Trigger Module 6PCS 5V-20V 100W

SKU CH-1QAH-0J91K

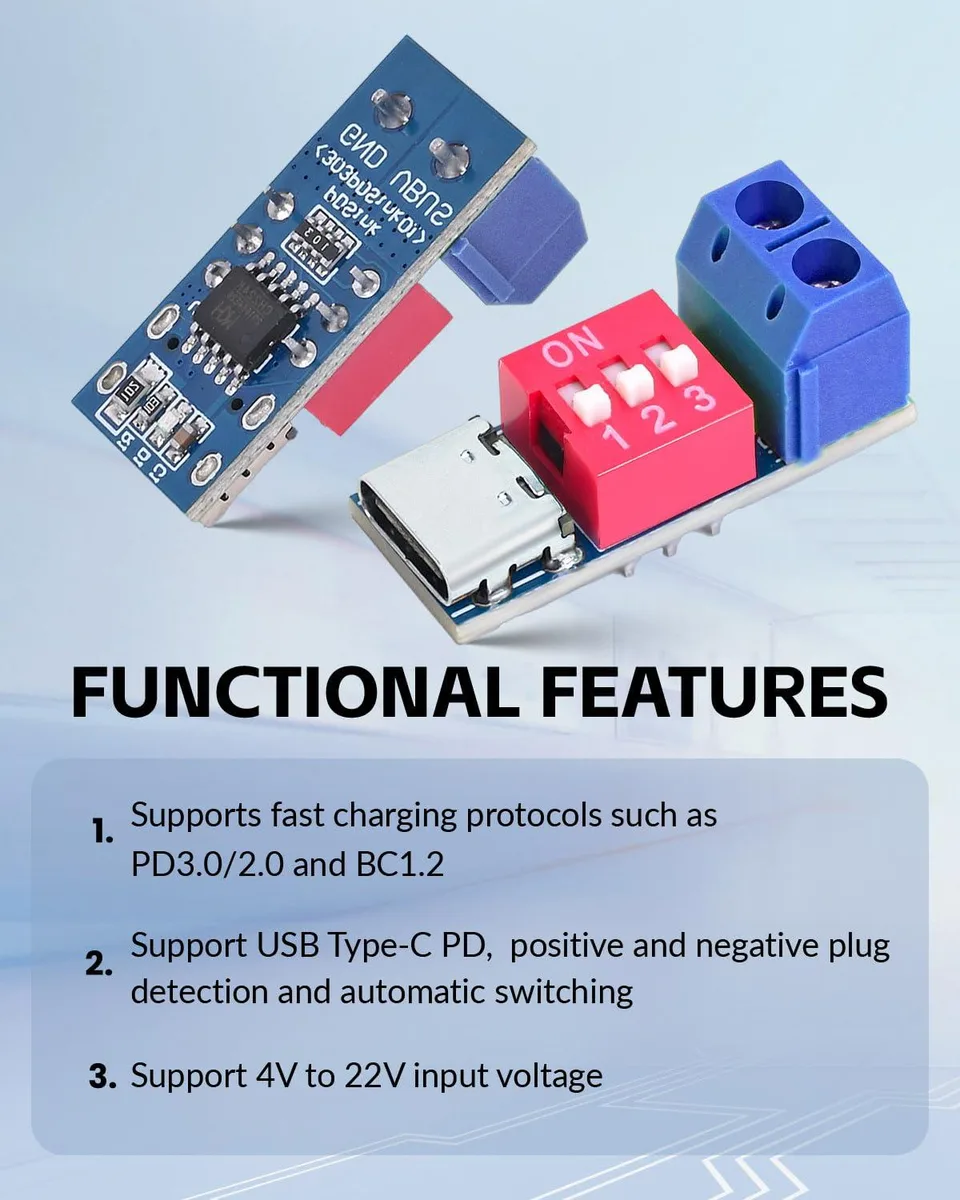

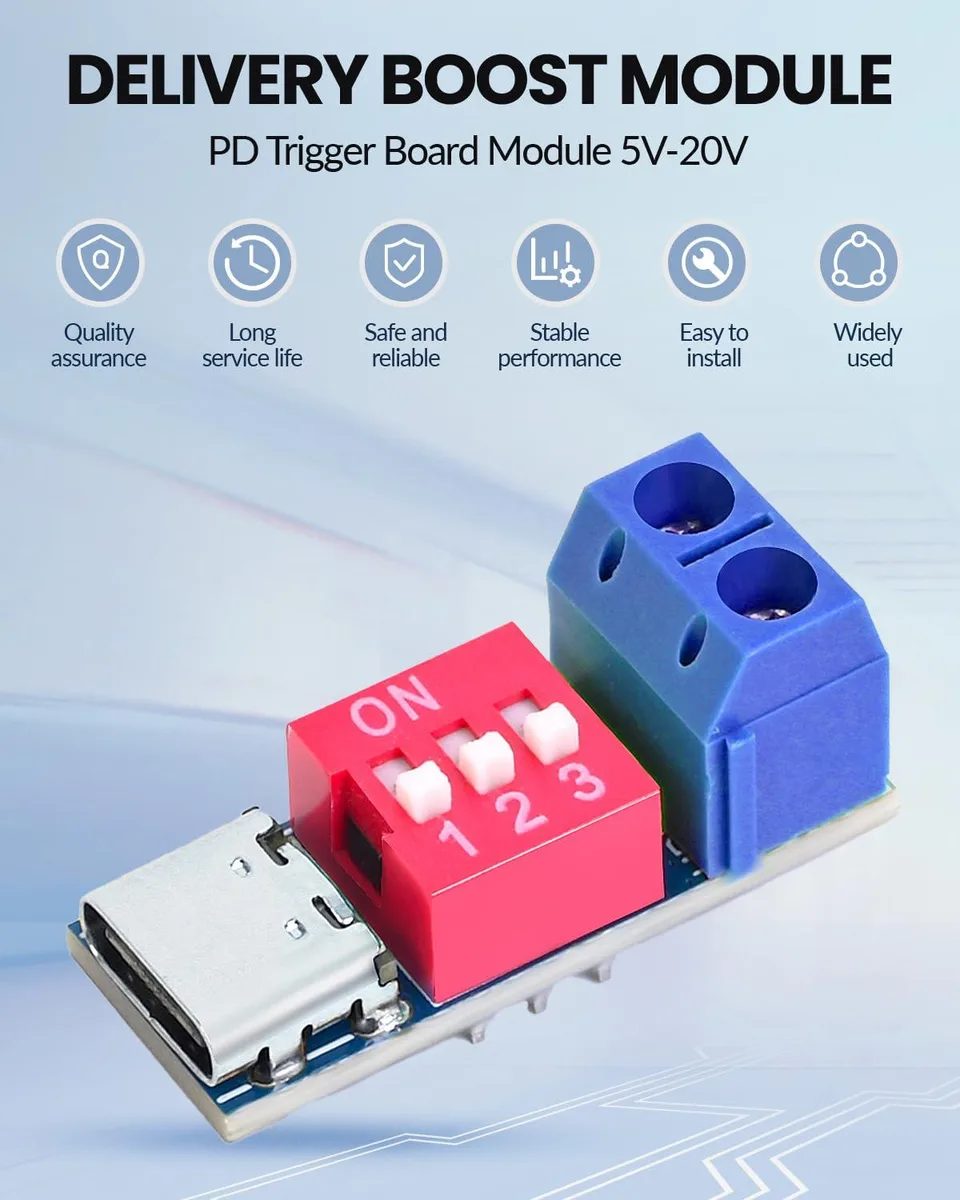

Six USB-C PD trigger modules with DIP-switch voltage selection from 5 V to 20 V, supporting 100 W output and protection features

  • Type6PCS
  • Versatile PD testing up to 100W with PD3.0/2.0 and BC1.2 support
  • Adjustable voltage from 5V to 20V via convenient DIP switch
  • Wide compatibility across PD3.0/2.0 and BC1.2 fast charging protocols
  • USB Type-C PD support with automatic forward and reverse insertion switching
  • Reliable power delivery featuring over-temperature and over-voltage protection

Versatile PD tester module

This BUCIER SY070 module acts as a USB-C PD trigger board supporting PD3.0, PD2.0 and BC1.2 protocols with a maximum output of 100W. It provides a practical way to test and verify the charging performance of various devices safely.

Sustained load behaviour

Built-in over-temperature and over-voltage protection helps maintain reliable operation during extended testing sessions. The board accepts input voltages between 4V and 22V while delivering adjustable output from 5V to 20V via the DIP switch.

Installation and common issues

A USB Type-C connector with reversible insertion simplifies connection to power sources, while screw terminals allow secure wire attachment for the output side. Users should confirm their target device accepts the selected voltage before applying power.

Highlights

  • Versatile PD testing up to 100W with PD3.0/2.0 and BC1.2 support
  • Adjustable voltage from 5V to 20V via convenient DIP switch
  • Wide compatibility across PD3.0/2.0 and BC1.2 fast charging protocols
  • USB Type-C PD support with automatic forward and reverse insertion switching
  • Reliable power delivery featuring over-temperature and over-voltage protection

Specifications

BrandSeloky
ModelSY070
Part NumberSY070
Type6PCS

Questions about this item

Does the SY070 module generate noticeable heat when running continuously at 100W?

The board includes over-temperature protection that activates if the module becomes too hot during sustained high-power operation.

What power source must I already have to use these trigger boards?

You need a USB-C power adapter or power bank that supports PD 3.0 or PD 2.0 and can supply up to 20V.

Will the SY070 work with a legacy charger that only offers 12V fixed output?

Yes, the DIP switch can be set to 12V and the board negotiates via PD 2.0 or BC 1.2, so it will trigger that voltage from compatible older chargers.
