Green printed circuit board with straight gold PCIe x16 edge connector and low-profile bracket

BUCIER

BUCIER PA17 PCIe 5.0 x16 Riser Adapter Card

SKU CH-1SCM-80X1E

PCIe 5.0 x16 riser raises slot height by 200 mm for 1U/2U server builds

  • StandardsPCIe
  • ConnectorsPCIe
  • Interfacepci_x_16
  • BUSpci_x_16
  • FeaturesServer
  • Weight0.05 kilograms

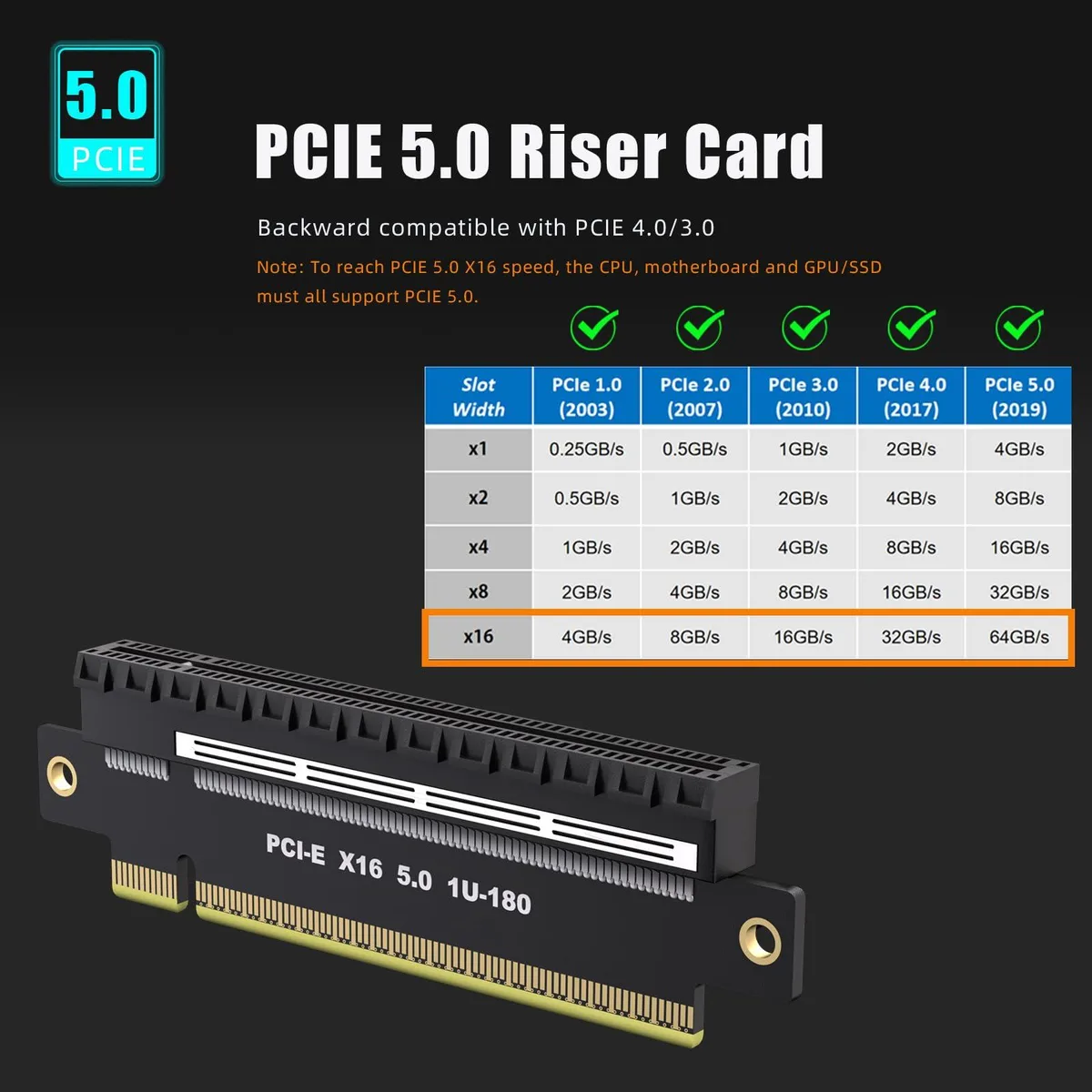

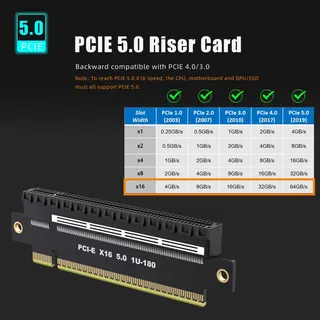

  • PCIe 5.0 x16 bandwidth with 4.0/3.0 backward compatibility
  • Raises slot height by 200 mm for 1U/2U server fit
  • Straight and low-profile design enables compact chassis installation
  • Pure x16 signal pass-through with no conversion or enhancement
  • Weighs 0.05 kg for minimal load on motherboard

PCIe 5.0 x16 Riser Adapter

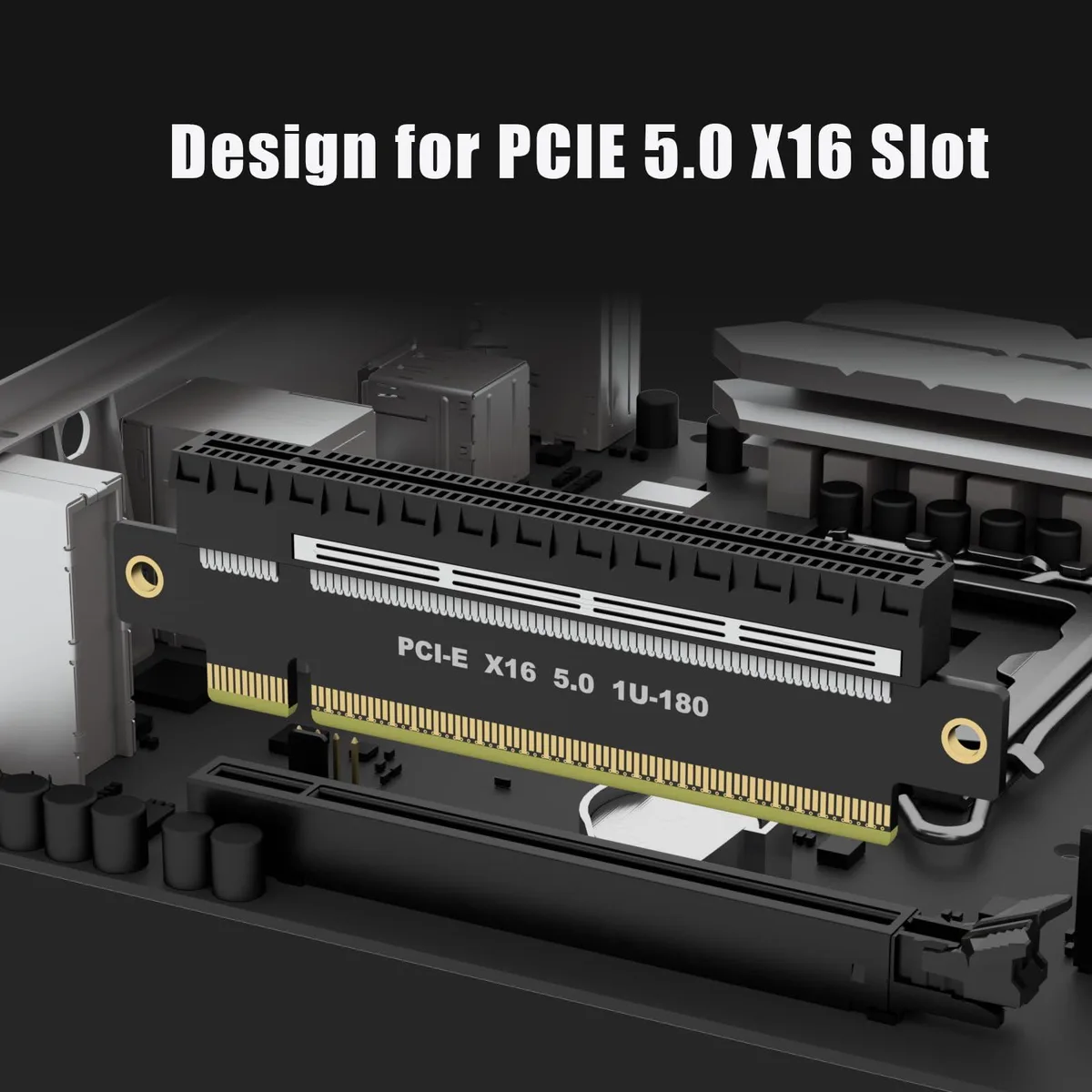

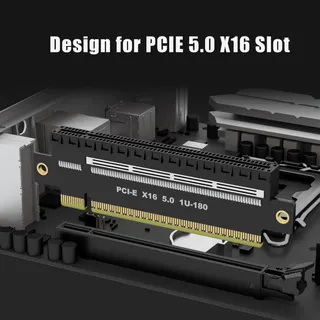

The BUCIER PA17 is a PCIe 5.0 x16 riser adapter card designed for server installations. It raises the motherboard slot height by 200 mm while maintaining a straight signal pass-through. The card is backward compatible with PCIe 4.0 and 3.0 x16 devices. It weighs 0.05 kg.

Upgrade Path for Server Builders

This adapter replaces a direct motherboard connection when physical clearance prevents full-length card installation in 1U or 2U chassis. The jump is worth it when the CPU, motherboard slot and target GPU or SSD all support PCIe 5.0 x16 functionality. No signal conversion or enhancement occurs.

Suits Rackmount Integrators

Builders fitting full-height accelerators or storage cards into low-profile servers will find the 200 mm lift essential. Buyers who need hot-plug capability should look elsewhere because power must be off before any physical operation. The part does not convert lower-generation signals to PCIe 5.0 speeds.

Highlights

  • PCIe 5.0 x16 bandwidth with 4.0/3.0 backward compatibility
  • Raises slot height by 200 mm for 1U/2U server fit
  • Straight and low-profile design enables compact chassis installation
  • Pure x16 signal pass-through with no conversion or enhancement
  • Weighs 0.05 kg for minimal load on motherboard

Specifications

BrandBUCIER
ModelPA17
Part NumberPA17-180D
StandardsPCIe
ConnectorsPCIe
Interfacepci_x_16
BUSpci_x_16
FeaturesServer
Weight0.05 kilograms

Questions about this item

Does the PA17 riser fit a 1U or 2U server chassis with a 200 mm height raise?

Yes, the card raises the motherboard PCIe 5.0 x16 slot by 200 mm and includes straight and low-profile brackets for 1U and 2U server installation.

What is the correct installation sequence to avoid damaging the PA17?

Power off the system completely, align the riser with the motherboard PCIe x16 slot, secure the bracket to the chassis, then attach the GPU or SSD to the riser — never hot-plug.

Will the gold-finger contacts on the PA17 need periodic cleaning or replacement?

The riser is a passive signal pass-through with no active components; the gold-finger contacts do not require scheduled cleaning or replacement under normal use.
