Short black Micro USB male-to-female cable with down-angled plug and screw-lock mounting holes

BUCIER

BUCIER Micro USB 5 Pin Extension Cable 0.3 m Down Angle Screw Lock

SKU CH-A96H-XZ7TX

A 0.3 m Micro USB 5-pin extension cable with a down-angle male connector, screw-lock mounting holes and 480 Mbps data plus 2 A charging

  • TypeUSB
  • Connector TypeMicro USB
  • ColorBlack
  • Cable Length12
  • Length12
  • Connector DetailMicro USB
  • 3 m down-angle extender fits tight spaces
  • screw-lock flange with two mounting holes secures the cable
  • 480 Mbps data and 2 A charging over copper conductors
  • 28 AWG data pair plus 24 AWG power cores for reliable signal
  • works with any Micro USB phone, tablet or peripheral

Panel-Mount Micro USB Extender

This 0.3 m Micro USB 5-pin extension cable adds a panel-mount female port with two screw holes for secure installation. The down-angle male connector reduces strain in tight spaces while supporting 480 Mbps data and 2 A charging. It is intended for builders who need a fixed, vibration-resistant USB connection on an enclosure or bracket.

Replaces Loose Dongles

Standard plug-in extenders can work free under vibration or repeated insertion cycles. This cable is worth the jump when the port must stay aligned and mechanically locked in a panel cut-out. It is not for users who only need a temporary desk-length cable or who require a straight or upward-angled connector orientation.

Build Integration

The male end plugs into an existing Micro USB header or device port; the female end mounts through a panel using the two supplied screws. Wrapped 28 AWG data pair and 24 AWG power conductors handle the specified current and speed. No extra drivers or power adapters are needed, freeing up internal header space for other connections.

Highlights

  • 3 m down-angle extender fits tight spaces
  • screw-lock flange with two mounting holes secures the cable
  • 480 Mbps data and 2 A charging over copper conductors
  • 28 AWG data pair plus 24 AWG power cores for reliable signal
  • works with any Micro USB phone, tablet or peripheral

Specifications

BrandKework
TypeUSB
Connector TypeMicro USB
ColorBlack
Cable Length12
Length12
Connector DetailMicro USB
Terminal GenderMale-to-Female
Speed480 megabits_per_second
ConstructionCopper
FeaturesScrew Mount Extender Cable

Questions about this item

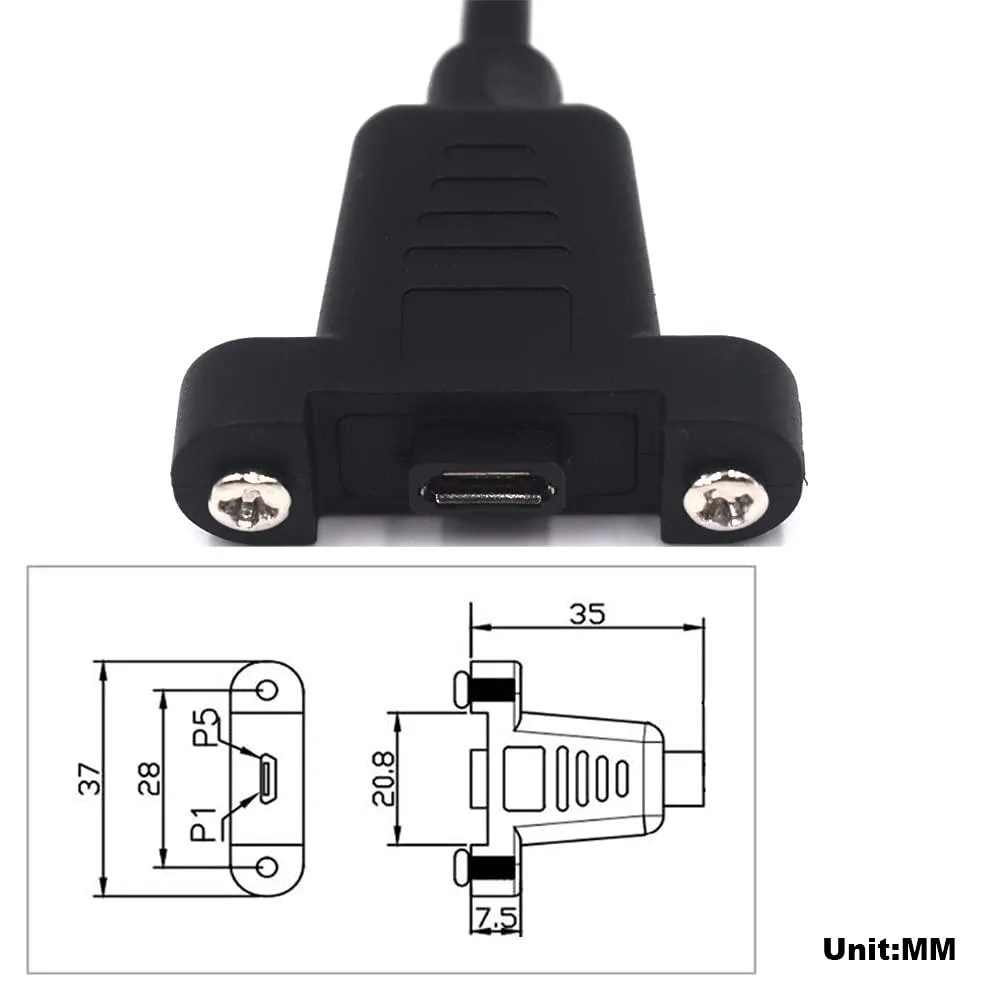

What are the mounting-hole dimensions for the down-angle Micro USB female connector?

The female connector has two mounting holes on one plane and the package includes two screws to secure it.

How do I install the screw-lock extender without damaging the panel?

Align the two holes, insert the supplied screws and tighten them evenly so the cable sits flush without stress on the connector.

When should I replace this 0.3 m Micro USB extension cable?

Replace it if the copper conductors show wear, the screw threads strip or the connector no longer holds a firm 2 A charge and 480 Mbps data link.
