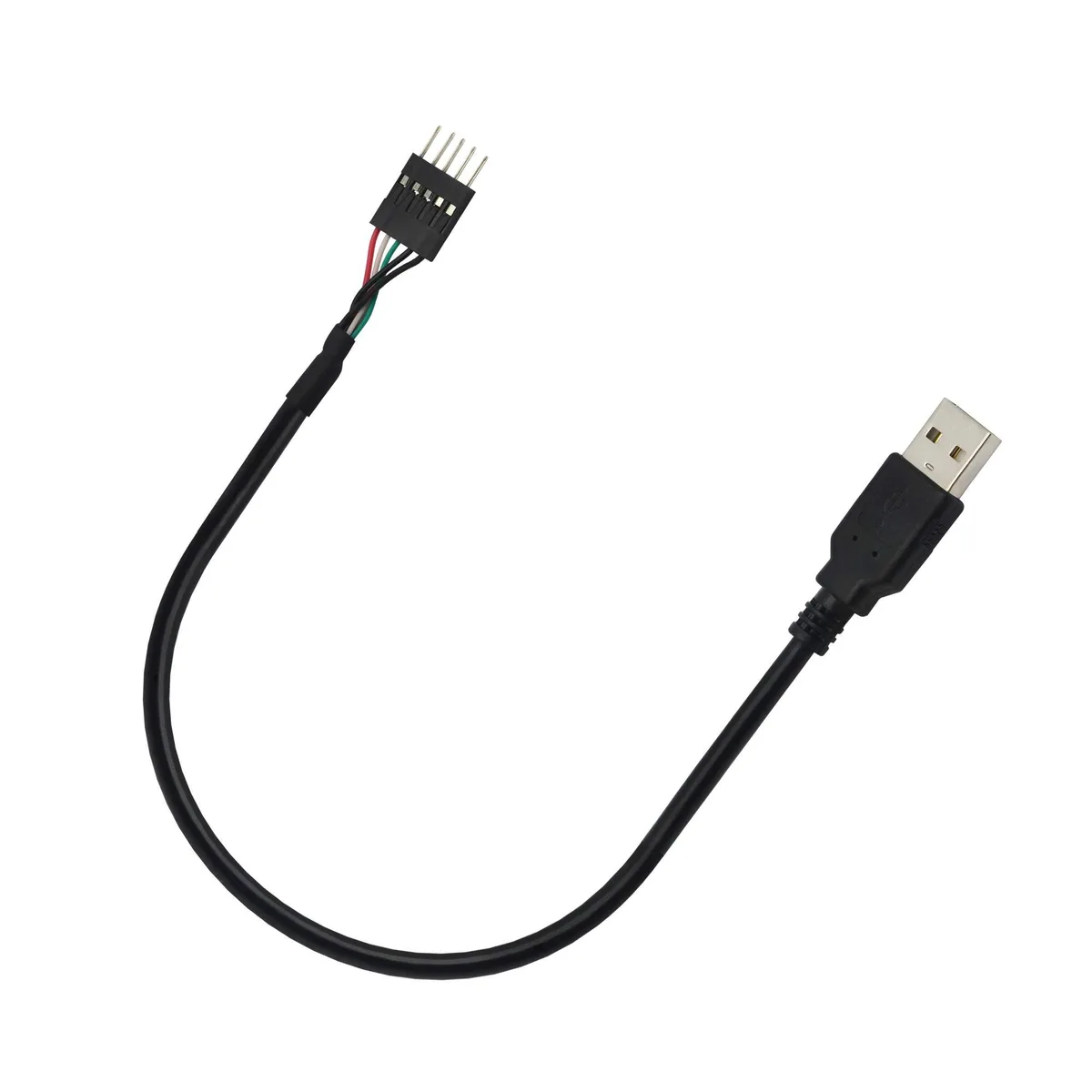

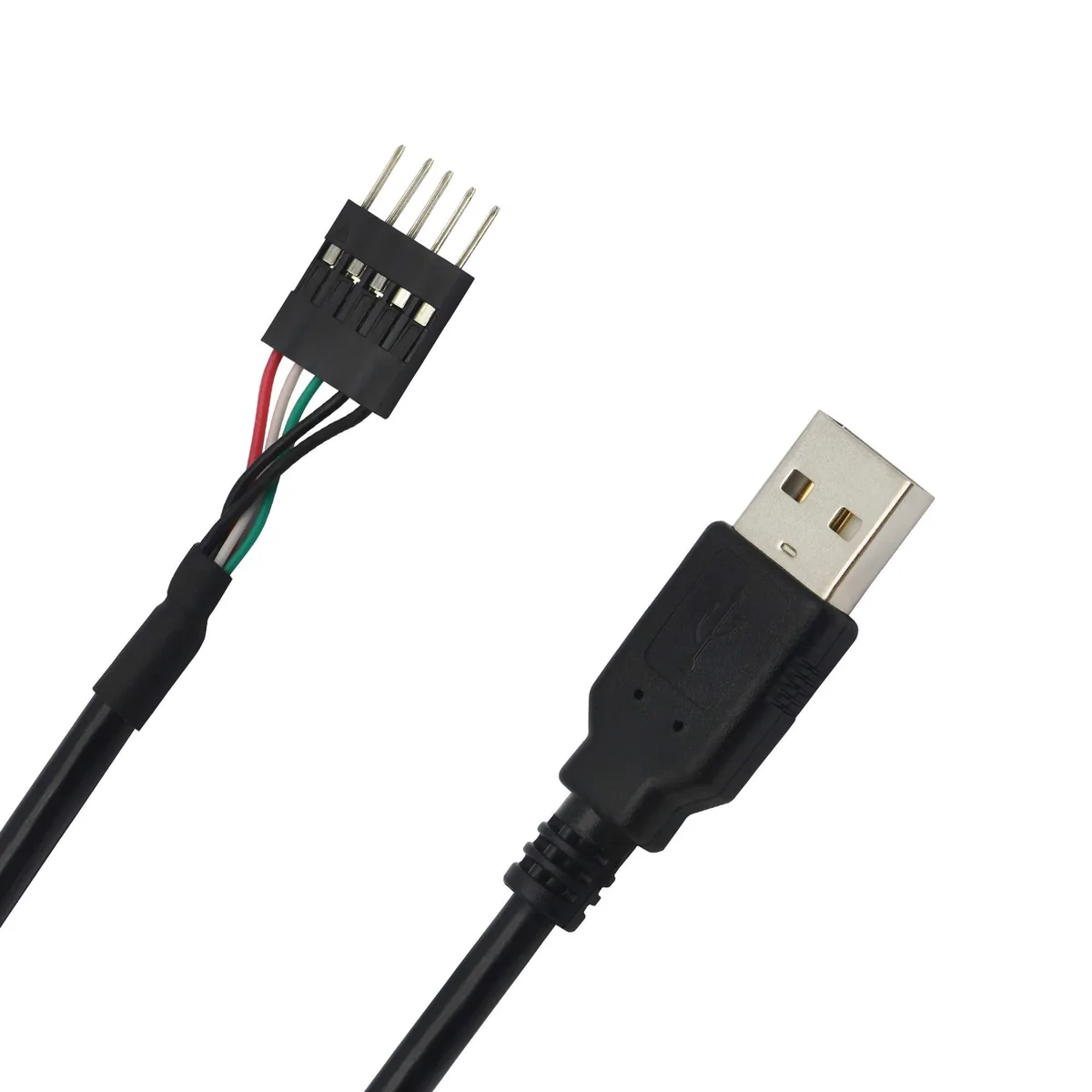

Two green and white 5-pin to USB-A adapter cables, 1 ft each, black PVC jackets

BUCIER

BUCIER 5-Pin Motherboard Header to USB 2.0 Type A Adapter Cable 2-Pack 1 ft

SKU CH-SH4M-AGH1J

Two 33 cm cables connect a motherboard 5-pin header to a USB 2.0 Type A port for internal peripheral expansion

  • TypeUSB
  • Connector TypeUSB Type A
  • ColorGreen,White
  • Cable Length1 ft
  • Length1 ft
  • Connector Number5
  • Adds a rear USB 2.0 port via 5-pin motherboard header
  • 28 AWG bare copper with foil shield cuts signal loss
  • Black PVC jacket stays flexible for tight case routing
  • Two 1 ft cables included for dual-port expansion
  • Hot-swap ready, no driver installation required

Internal USB 2.0 header adapter

This BUCIER adapter cable connects a standard 5-pin motherboard header to a USB 2.0 Type A male port. It is intended for builders who need to add an internal USB connection for front-panel ports, card readers or other peripherals. The pack includes two cables, each measuring 33 cm (about 1 ft). The DuPont connector carries V+, D-, D+, GND and shield pins in a fixed order.

Pin-out and voltage limits

The single specification that decides compatibility is the 5-pin DuPont header layout: red V+, white D-, green D+, black GND and black shield GND. The cable must be inserted in the correct orientation; reversing the connector will prevent function. The assembly is rated for a maximum of 30 V and an operating temperature not exceeding 80 °C. No driver installation is required.

Thermals and power in use

The 28 AWG bare copper conductors with aluminium foil shielding are designed for low-loss USB 2.0 signalling. In normal operation the cable runs at low voltage and draws minimal current, so it produces no noticeable heat. The black PVC jacket remains flexible and does not require active cooling. Noise is non-existent because the assembly contains no moving parts.

Highlights

  • Adds a rear USB 2.0 port via 5-pin motherboard header
  • 28 AWG bare copper with foil shield cuts signal loss
  • Black PVC jacket stays flexible for tight case routing
  • Two 1 ft cables included for dual-port expansion
  • Hot-swap ready, no driver installation required

Specifications

BrandGINTOOYUN
Model5 Pin Motherboard Header to USB A
TypeUSB
Connector TypeUSB Type A
ColorGreen,White
Cable Length1 ft
Length1 ft
Connector Number5
Connector DetailUSB Type A
Terminal GenderMale-to-Male
ConstructionPVC
FeaturesHigh Speed

Questions about this item

What USB speed will I actually get when this cable is plugged into a motherboard header?

The cable carries USB 2.0 signals, so real-world throughput is limited to the 2.0 specification once connected to a standard header.

Which motherboard header standard does the 5-pin Dupont connector follow?

It uses the common 5-pin Dupont layout (red V+, white D-, green D+, black GND, black shield GND) found on many USB 2.0 front-panel headers.

How much clearance do I need to route the 1 ft cable inside a case?

Each cable is 33 cm (about 1 ft) long with a flexible PVC jacket, so it fits tight routing behind motherboards or drive cages.
