Short left-angled Micro USB male-to-female extension cable with screw-lock panel mount, 0.3 m

BUCIER

BUCIER 0.3 m Micro USB 5 Pin Extension Cable, Left Angle Male to Female Bolt Screw Lock Mount

SKU CH-V86R-WZ1R0

Micro USB extension cable with screw-lock mounting panel and 480 Mbps data transfer

  • TypeUSB
  • Connector TypeMicro USB
  • Connector DetailMicro USB
  • Speed0.48 gigabits_per_second
  • Apple CompatibleCellular Phones
  • ConstructionCopper
  • Panel-mount design with two screws for secure installation
  • Left-angle male connector fits tight spaces and reduces strain
  • Supports 2 A charging and 480 Mbps data transfer
  • Copper construction with 28 AWG data pair and 24 AWG power cores
  • Rated for 30 V and 80 °C operating environment

Micro USB Extension with Screw Mount

This 0.3 metre Micro USB 5-pin extension cable adds reach between a host port and a Micro USB device. A left-angle male plug reduces strain in tight spaces while the female end includes two mounting holes for panel attachment. It suits anyone needing a short, secure link for charging and data sync.

Check Port Orientation and Panel Thickness

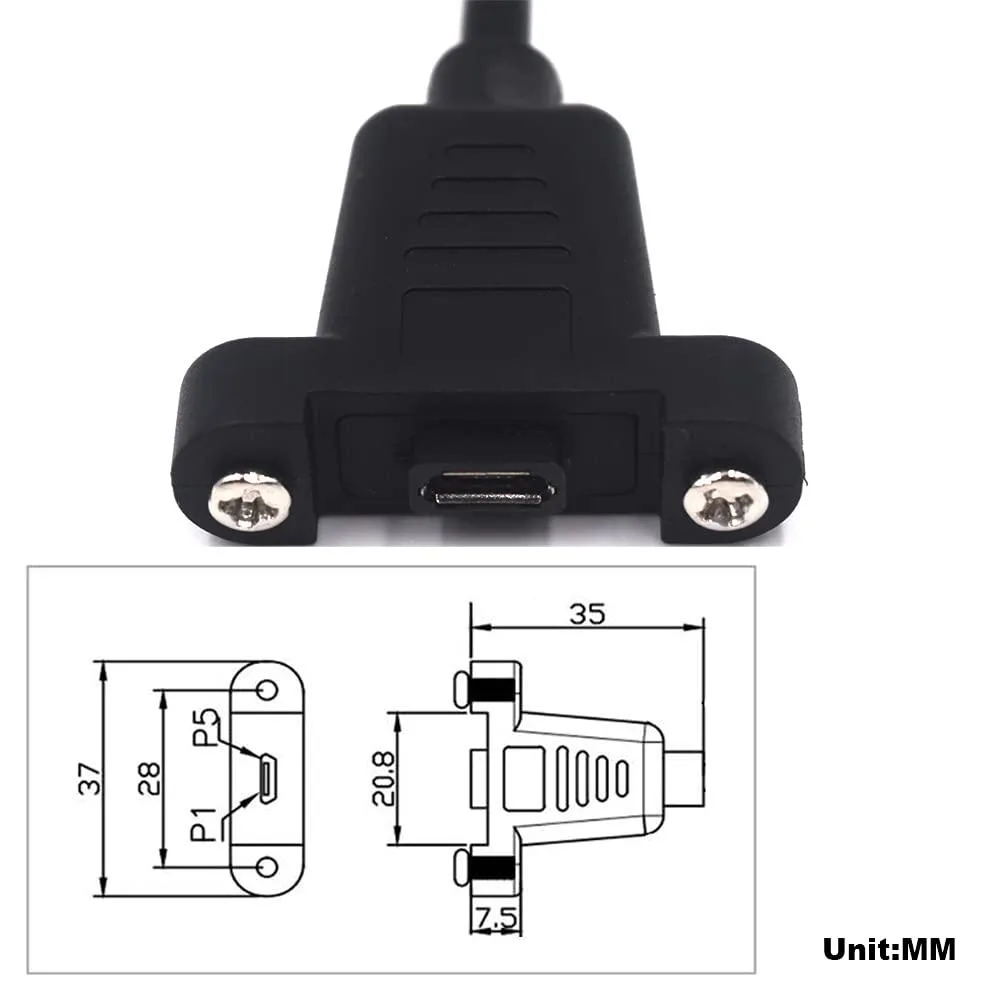

Verify that your device uses a standard Micro USB 5-pin socket and that the left-angle plug clears adjacent connectors or case walls. The mounting holes accept two screws (included) so confirm the panel material is thick enough to hold threads and that hole spacing matches the cable flange.

Panel-Mount Convenience for Fixed Installs

The screw-lock flange lets you bolt the female port to an enclosure, dashboard or bracket, turning a loose cable into a permanent bulkhead connector. Copper conductors (28AWG/1P + 24AWG/2C) carry up to 2A for charging and 480Mbps for data. Rated for 30V and 80°C operation.

Highlights

  • Panel-mount design with two screws for secure installation
  • Left-angle male connector fits tight spaces and reduces strain
  • Supports 2 A charging and 480 Mbps data transfer
  • Copper construction with 28 AWG data pair and 24 AWG power cores
  • Rated for 30 V and 80 °C operating environment

Specifications

BrandKework
TypeUSB
Connector TypeMicro USB
Connector DetailMicro USB
Speed0.48 gigabits_per_second
Apple CompatibleCellular Phones
ConstructionCopper

Questions about this item

What comes in the box and do I need to buy mounting hardware separately?

The package includes the 0.3 m Micro USB extension cable and two screws for the female connector’s mounting holes, so no extra hardware is required for panel installation.

How do I choose between the data and charging capabilities listed?

The same cable delivers both 480 Mbps data transfer and up to 2 A charging current simultaneously; there are no separate versions to select.

What does the 480 Mbps figure mean when the cable is connected to my device?

It is the maximum USB 2.0 high-speed data rate the cable supports, so actual throughput will depend on the host controller and the peripheral you attach.
