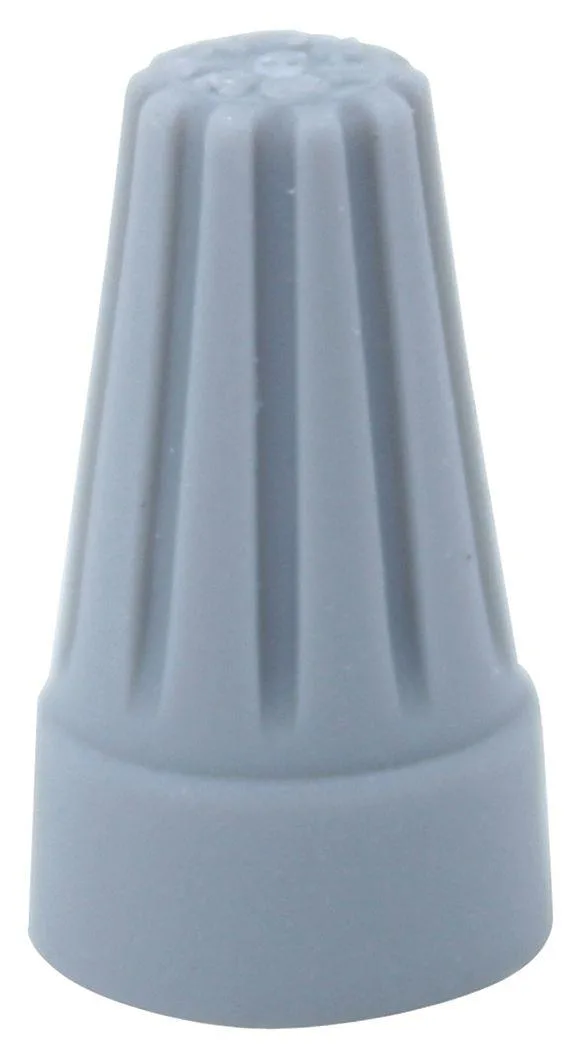

Gray twist-on wire connectors, 500 pack

Buchanan

Buchanan WT1-B Twist-On Wire Connectors 22-14 AWG Pack 500

SKU CH-3Q56-08X3V

Twist-on wire connectors join 22-14 AWG copper conductors up to 300 V and 221 °F in a 500-piece pack

  • Length0.58"
  • TypeTwist-On
  • Safe copper connections up to 14 AWG
  • UL Listed and CSA Certified for code compliance
  • Handles 300 V and 221 °F operating limits
  • V-2 flame-rated polypropylene insulation resists fire
  • Pack of 500 gray twist-on connectors included

Buchanan WT1-B Twist-On Connectors

Buchanan WT1-B twist-on wire connectors join solid copper conductors from 22 to 14 AWG. The pack contains 500 gray units for high-volume electrical work. Each connector accepts up to five wires with a maximum combination of two 16 AWG conductors. UL listed and CSA certified for 300 volts maximum.

Ideal for residential and light commercial wiring

Electricians pulling multiple circuits through junction boxes will appreciate the bulk quantity and standard twist-on action. The 0.58 inch length fits typical box fill allowances. Installers needing push-in connectors, higher temperature ratings above 221 degrees F, or voltage ratings above 300 V should select a different style.

Fits standard electrical boxes and copper wiring

The polypropylene insulation and zinc-plated steel springs install with a simple twist, no special tools required. UL 94 V-2 flammability rating meets common code requirements. The connectors free up box space compared to larger wire-nut styles while accommodating up to five conductors per connection.

Highlights

  • Safe copper connections up to 14 AWG
  • UL Listed and CSA Certified for code compliance
  • Handles 300 V and 221 °F operating limits
  • V-2 flame-rated polypropylene insulation resists fire
  • Pack of 500 gray twist-on connectors included

Specifications

BrandBuchanan
Length0.58"
TypeTwist-On

Questions about this item

What wire gauge range and maximum conductor count does the WT1-B connector support?

The WT1-B accepts copper conductors from 22 AWG up to 14 AWG and can join a maximum of five conductors inside the polypropylene shell.

Will the gray WT1-B connectors work with the existing 16 AWG wiring in my older harness?

Yes, the connector’s maximum wire combination is rated for two 16 AWG conductors, so it will splice into that older harness without exceeding its capacity.

How can I verify the WT1-B connection is secure after twisting it on?

After twisting the connector onto the stripped wires, tug each conductor gently; a firm hold with no exposed copper and the gray insulation fully covering the splice confirms a proper connection.
