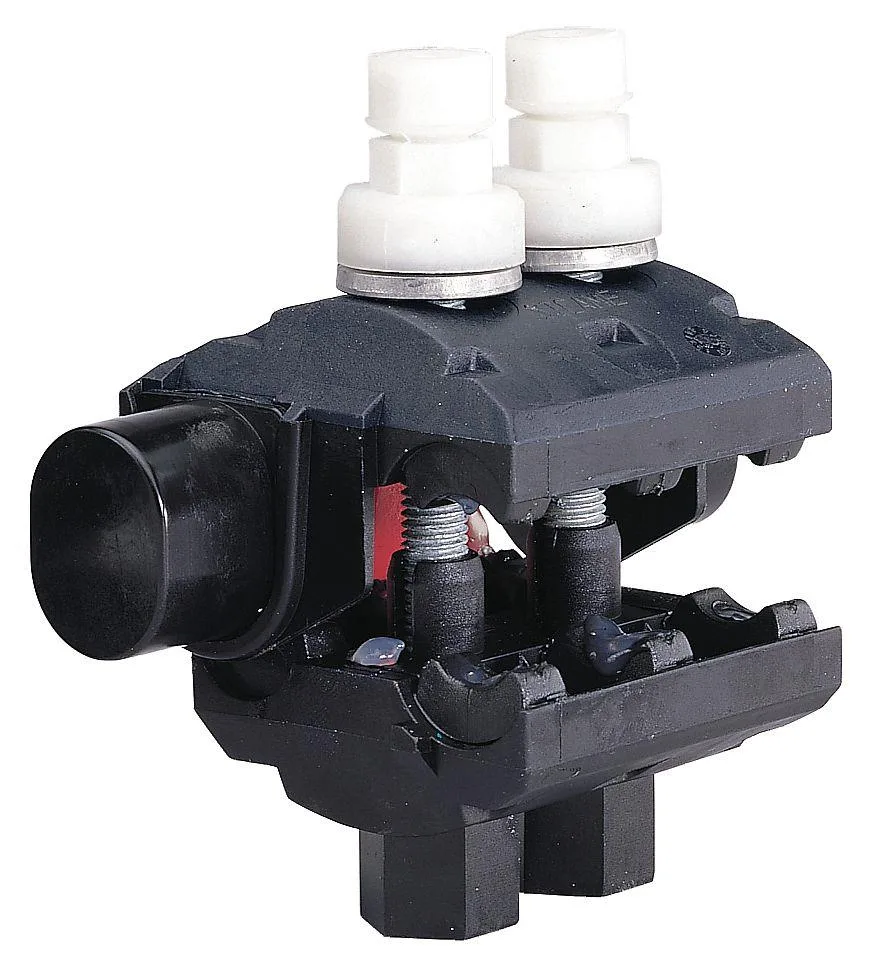

Black insulation displacement connector 2.2 inches long for 10 to 14 AWG wire

Buchanan

Buchanan BTC500-14 Insulation Displacement Connector 10-14 AWG Black

SKU CH-ZNZ1-0VPSQ

Insulation-displacement connector joins 10-14 AWG tap wire to 3/0-750 kcmil run wire at 600 V

  • Length2.2"
  • TypeInsulation-Piercing
  • Insulation-displacement design removes need for stripping
  • Accepts 10-14 AWG tap wires for flexible splicing
  • UV-stable polymer housing resists outdoor degradation
  • Rated 600 V and 194 °F for demanding circuits
  • Compact 2.2" length fits tight enclosures

Buchanan BTC500-14 Connector Overview

The Buchanan BTC500-14 is an insulation displacement connector designed for electrical and industrial wiring applications. It features a black UV-stable polymer housing and a 2.2 inch length. This connector uses insulation-piercing technology to create secure connections without stripping wires. It is suitable for professionals making run and tap wire connections.

Target Users and Limitations

This connector suits installers joining a single run conductor from 3/0 AWG to 750 kcmil with a single tap conductor from 14 AWG to 10 AWG. It supports a maximum voltage of 600 V and operates up to 194 degrees F. Buyers needing multiple conductors per port or tap wires larger than 10 AWG should look at alternative connection methods.

Critical Specification Decider

The maximum run wire insulation diameter is 1.277 in while the maximum tap wire insulation diameter is 0.101 in. These two figures determine whether your specific cables will fit the connector body. Verify your wire insulation outer dimensions against these limits before purchasing to ensure a proper seal and connection.

Highlights

  • Insulation-displacement design removes need for stripping
  • Accepts 10-14 AWG tap wires for flexible splicing
  • UV-stable polymer housing resists outdoor degradation
  • Rated 600 V and 194 °F for demanding circuits
  • Compact 2.2" length fits tight enclosures

Specifications

BrandBuchanan
Length2.2"
TypeInsulation-Piercing

Questions about this item

Does the connector generate heat when running at 600 V all day?

The connector is rated for a maximum operating temperature of 194 Degrees F and handles up to 600 V, so normal continuous use stays within its thermal limits.

What wire sizes must I already have for the run and tap sides to use this connector?

The run side accepts 3/0 AWG to 750 kcmil conductors with insulation up to 1.277 in, while the tap side takes 14 AWG to 10 AWG with insulation up to .101 in.

Will this connector work with older aluminium wire I have in the panel?

The insulation-piercing design contacts the conductor directly, so it works with both copper and aluminium conductors as long as the wire gauge falls within the 3/0 AWG to 750 kcmil run and 14 AWG to 10 AWG tap ranges.
