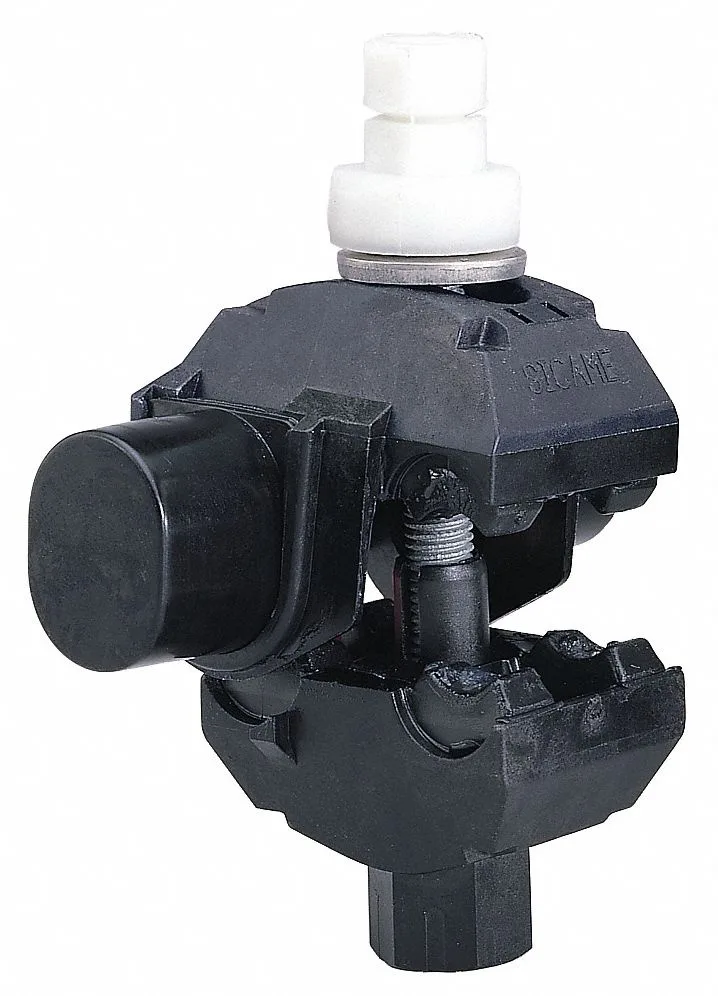

Black insulation displacement connector 2.2 inches long with two ports

Buchanan

Buchanan BTC4/0-10 Insulation Displacement Connector Black 2.2" 2-10 AWG 600V

SKU CH-92ST-X7DEN

An insulation-piercing connector joins a 3 AWG to 4/0 AWG run wire with a 10 AWG to 2 AWG tap wire at up to 600 V

  • Length2.2"
  • TypeInsulation-Piercing
  • Insulation displacement eliminates stripping for faster installs
  • UV-stable polymer housing resists sunlight for outdoor durability
  • 600 V rating handles standard service voltages safely
  • Runs 4/0 to 3 AWG with taps 2 to 10 AWG for versatile splicing
  • Compact 2.2" length fits tight enclosures and panels

Buchanan BTC4/0-10 Connector

This Buchanan insulation displacement connector joins a run conductor from 3 AWG to 4/0 AWG with a tap conductor from 10 AWG to 2 AWG. It accepts a maximum run insulation diameter of .46 in and a maximum tap insulation diameter of .257 in. The UV-stable polymer housing is rated for 600 V and a maximum operating temperature of 194 Degrees F.

Electrical installers needing a quick tap connection

The two-port run-tap design suits maintenance crews adding a branch circuit without stripping the main conductor. It is not suited for applications requiring more than one tap per run, for conductors outside the stated AWG ranges, or for voltages above 600 V.

Fits standard hand tools for insulation-piercing

The connector requires no special crimping dies; a common hand tool pierces the insulation to complete the joint. Its compact 2.2 in length leaves room in tight junction boxes and frees up space for additional wiring.

Highlights

  • Insulation displacement eliminates stripping for faster installs
  • UV-stable polymer housing resists sunlight for outdoor durability
  • 600 V rating handles standard service voltages safely
  • Runs 4/0 to 3 AWG with taps 2 to 10 AWG for versatile splicing
  • Compact 2.2" length fits tight enclosures and panels

Specifications

BrandBuchanan
Length2.2"
TypeInsulation-Piercing

Questions about this item

What maximum run wire size does the BTC4/0-10 connector accept?

The connector handles run wires up to 4/0 AWG with insulation diameter up to 0.46 in.

Can the tap port on this connector accommodate a 10 AWG wire?

Yes, the tap port accepts wires from 10 AWG up to 2 AWG with insulation diameter up to 0.257 in.

How can I verify the connection is secure after installing the insulation displacement connector?

After installation, inspect that the connector body is fully seated and the insulation-piercing contacts have engaged both the run and tap conductors.
