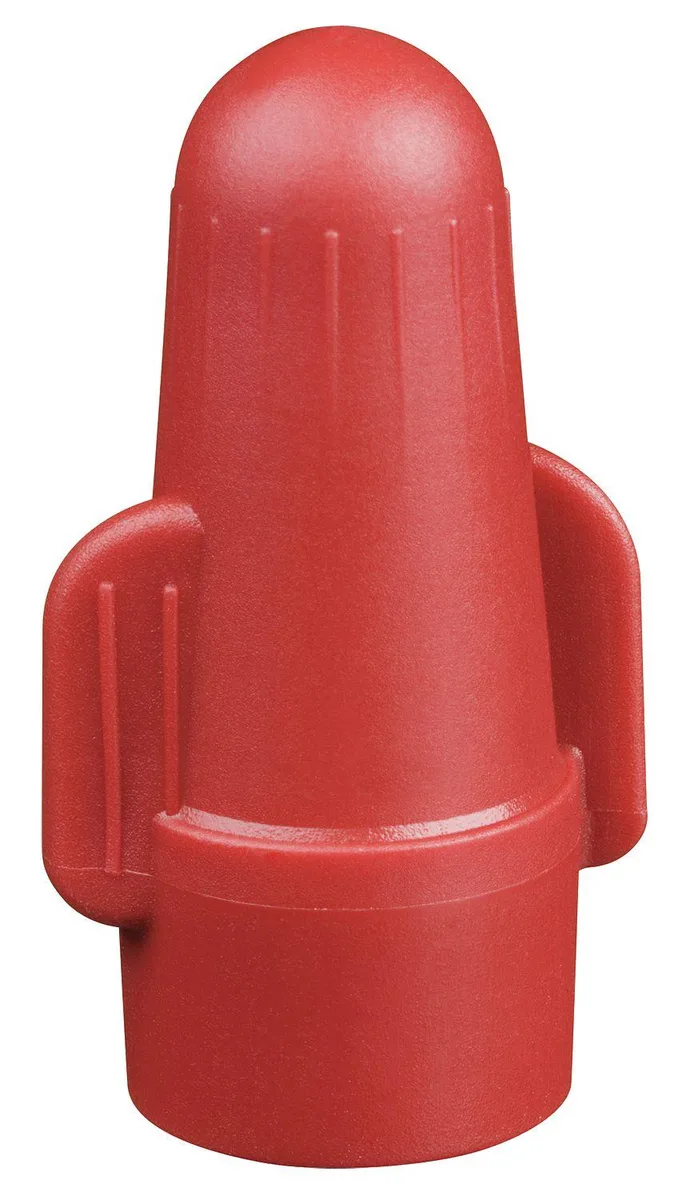

Red wing-style wire connectors, pack of 100

Buchanan

Buchanan BT2-1 B-Twist Wire Connector Red 18-8 AWG PK100

SKU CH-C5ZN-QN58N

Red B-Twist wire connectors join 18 to 8 AWG copper conductors at up to 600 V and 221 °F, supplied in a pack of 100

  • Length1.32"
  • TypeB-Twist
  • Handles 18–8 AWG copper wires for versatile splicing
  • Wing-style B-Twist design enables fast tool-free installation
  • Rated 600 V and 221 °F for demanding circuits
  • UL Listed and CSA Certified for code-compliant safety
  • Pack of 100 connectors covers large wiring jobs

Red B-Twist Connector for Copper Wire

This Buchanan BT2-1 connector joins solid or stranded copper conductors from 18 AWG up to 8 AWG. The red polypropylene shell holds up to six wires and is rated for 600 volts maximum. It is designed for electrical and industrial wiring tasks where a secure twist-on connection is required. UL listed and CSA certified with a UL 94 V-2 flammability rating.

Voltage and Temperature Limits

The connector operates at a maximum of 600 volts and withstands temperatures up to 221 degrees Fahrenheit. These ratings define the safe electrical and thermal envelope for the installation. Exceeding either limit can compromise the connection integrity. The steel contact material and polypropylene insulation are tested to meet these specific boundaries.

18 to 8 AWG Wire Range Decides Fit

The single specification that determines suitability is the conductor size range of 18 AWG minimum to 8 AWG maximum. Minimum combination requires two 18 AWG wires while maximum combination accepts two 8 AWG wires. If your conductors fall outside this range, this connector will not provide a code-compliant connection.

Highlights

  • Handles 18–8 AWG copper wires for versatile splicing
  • Wing-style B-Twist design enables fast tool-free installation
  • Rated 600 V and 221 °F for demanding circuits
  • UL Listed and CSA Certified for code-compliant safety
  • Pack of 100 connectors covers large wiring jobs

Specifications

BrandBuchanan
Length1.32"
TypeB-Twist

Questions about this item

Red or another colour — which Buchanan BT2-1 fits 18-8 AWG copper?

The red BT2-1 is specified for 18 AWG minimum up to 8 AWG maximum with copper conductors, so this colour matches the stated wire range.

What does the 600 V rating mean once the connector is installed?

The 600 V listing is the maximum voltage the connector is rated for under UL and CSA standards.

Wing-style twist-on — what wire combinations does the B-Twist design accept?

It accepts a minimum of two 18 AWG wires and a maximum of two 8 AWG wires, with up to six conductors total per connector.
