Bryant

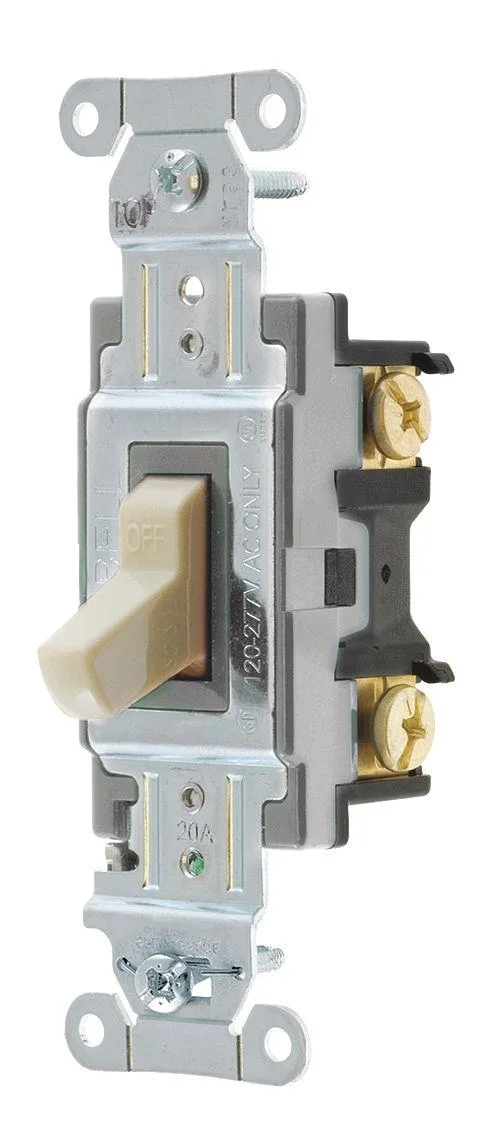

Bryant CSB120BI 20A Toggle Switch Ivory 120/277VAC
A 20 A single-pole toggle switch rated for 120/277 V AC with screw terminals and 1.7 in height
- 20 A rating handles heavy commercial loads
- 120/277 V AC dual-voltage fits standard circuits
- CSA certified for code-compliant installations
- Back and side wiring with screw terminals speeds termination
- 7 in overall height suits standard wall boxes
Commercial Toggle Switch
The Bryant CSB120BI is a single-pole toggle switch rated for 20 A at 120/277V AC. Its ivory finish and maintained action suit commercial lighting and motor circuits. Screw terminals accept back and side wiring for straightforward installation. The unit carries CSA certification for code-compliant work.
Thermals and Power Draw
The switch body measures 1.7 in overall height and fits standard commercial boxes. During normal operation the contacts carry up to 2 hp motor loads without excessive temperature rise. No active cooling or fan is required and the mechanical toggle produces only a faint click. Power consumption is limited to the connected load itself.
Wiring Flexibility
Back and side wiring methods give installers routing options in crowded junction boxes. Screw terminals secure solid or stranded conductors without special tools. The single-pole mechanism controls one circuit from a single location. No additional accessories or software are bundled with the device.
Highlights
- 20 A rating handles heavy commercial loads
- 120/277 V AC dual-voltage fits standard circuits
- CSA certified for code-compliant installations
- Back and side wiring with screw terminals speeds termination
- 7 in overall height suits standard wall boxes
Specifications
| Brand | BRYANT |
|---|
Questions about this item
How do I install the Bryant CSB120BI toggle switch using the screw terminals?
Connect wires to the screw terminals using either back or side wiring methods; ensure the power is off and tighten each terminal screw firmly to prevent loose connections.
What maintenance or replacement will the Bryant CSB120BI toggle switch need over time?
The switch is a maintained-contact mechanical device with no user-serviceable parts; replace the entire unit if the toggle mechanism wears out or the screw terminals become damaged.
What is the first limit reached when the Bryant CSB120BI toggle switch runs under sustained load?
The 20 A current rating at 120/277V AC is the primary limit; exceeding this amperage causes overheating and potential failure before the 2 hp motor rating becomes relevant.
