Ivory nylon duplex receptacle with straight blades, flush mount, no cover

Bryant

Bryant BRY5462I 20 A 250V AC 6-20R Receptacle

SKU CH-PP75-228WS

A grounded 20 A, 250V AC duplex receptacle with NEMA 6-20R configuration, CSA certified and UL listed

  • TypeWiring Devices
  • 20 A 250 V AC rating powers high-demand circuits
  • NEMA 6-20R configuration fits 2-pole 3-wire grounded plugs
  • Nylon housing resists corrosion for long service life
  • UL 498 listed and CSA certified for code compliance
  • Flush-mount single-gang design installs in standard boxes

Straight-blade receptacle for 20 A 250 V circuits

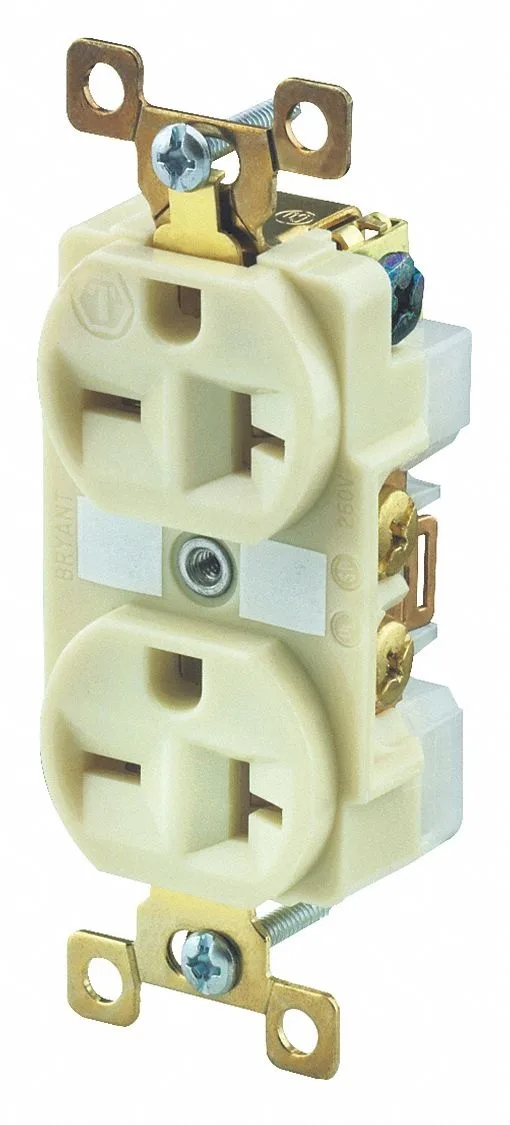

This Bryant BRY5462I is a NEMA 6-20R duplex receptacle rated 20 A at 250 V AC, two-pole, three-wire, single-phase. It suits residential or light-commercial wiring where a grounded 250 V outlet is required. The ivory nylon housing is corrosion-resistant and UL Listed to UL 498, CSA certified, and compliant with Federal Specification W-C-59 and NEMA WD-1 and WD-6.

Flush-mount installation with standard box fit

The device mounts flush in a single-gang box using captive mounting screws. Terminals accept back and side wiring for solid or stranded conductors. Common issues include loose terminal screws after thermal cycling and misaligned cover plates if the box is set too deep; verify torque and box depth before energising. No GFCI protection is built in, so downstream protection must be provided separately where code requires it.

Stable under continuous 20 A loading

The nylon body and corrosion-resistant contacts maintain consistent contact resistance during sustained 20 A loads at 250 V AC. Temperature rise stays within UL 498 limits for continuous duty, and the polarized, grounded design prevents neutral-ground reversal under long-term operation. No cover is included, so install an appropriate weather-resistant or indoor cover plate for the environment.

Highlights

  • 20 A 250 V AC rating powers high-demand circuits
  • NEMA 6-20R configuration fits 2-pole 3-wire grounded plugs
  • Nylon housing resists corrosion for long service life
  • UL 498 listed and CSA certified for code compliance
  • Flush-mount single-gang design installs in standard boxes

Specifications

BrandBRYANT
TypeWiring Devices

Questions about this item

How do I confirm the receptacle is working as intended after installation?

Verify that the connected equipment receives 250V AC at up to 20 A, the duplex slots accept NEMA 6-20R plugs securely, and the ivory nylon housing shows no discolouration or heat marks under load.

What comes in the box and what must be purchased separately?

The package contains the single-gang 2-pole 3-wire duplex receptacle with corrosion-resistant terminals; a matching wall plate, mounting screws, and wire connectors are not included and must be bought separately.

Which version should I choose for a 20 A 250V AC circuit?

Select the BRY5462I model with NEMA 6-20R configuration, CSA certification, and compliance with UL 498, Federal Specification W-C-59, and NEMA WD-1 and WD-6 standards for this voltage and current rating.
