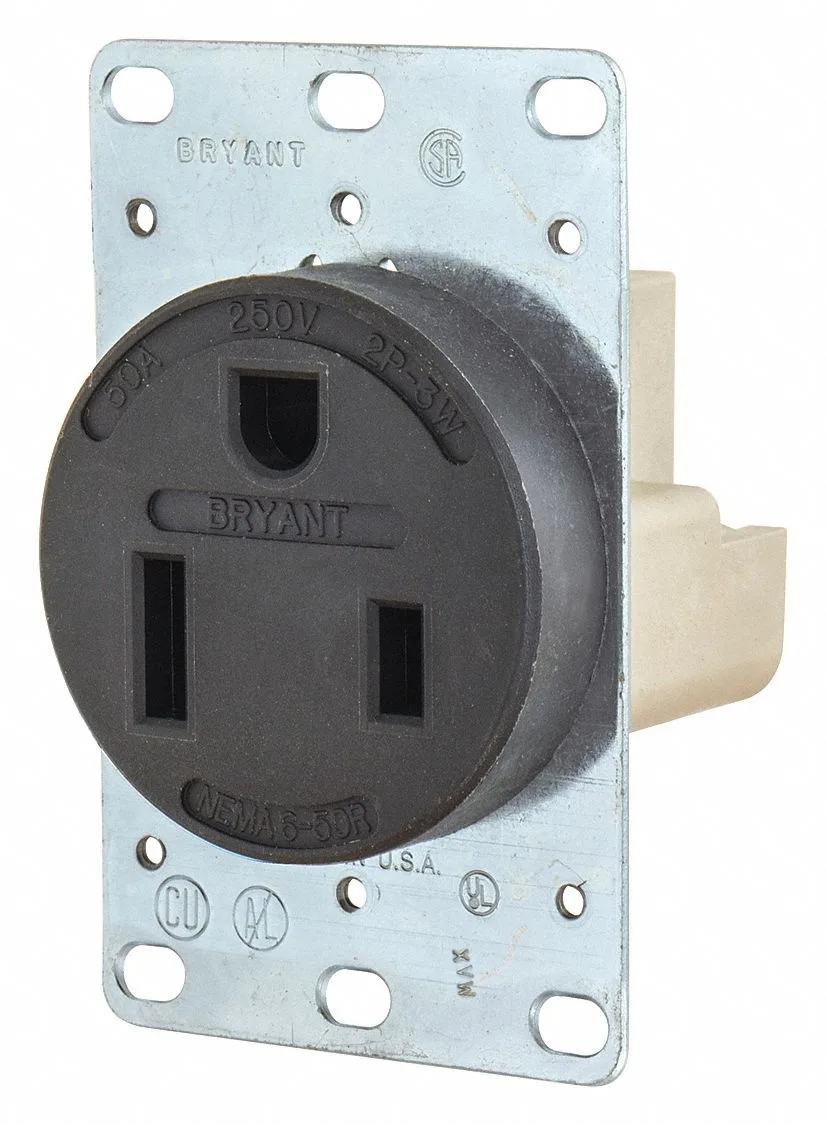

Black thermoplastic single receptacle with screw terminals

Bryant

Bryant 9650FR 6-50R 50 A 250V AC 2 Pole 3 Wire electrical box

SKU CH-83M6-MT95B

A 50 A, 250 V AC straight-blade receptacle with a 6-50R NEMA configuration, two poles and three wires for flush mounting

  • TypeWiring Devices
  • Rated 50 A at 250 V AC for heavy-duty circuits
  • NEMA 6-50R configuration fits welders and EV chargers
  • UL Listed and CSA Certified for code compliance
  • Impact-resistant thermoplastic housing withstands job-site abuse
  • Flush-mount single-gang design installs cleanly in standard boxes

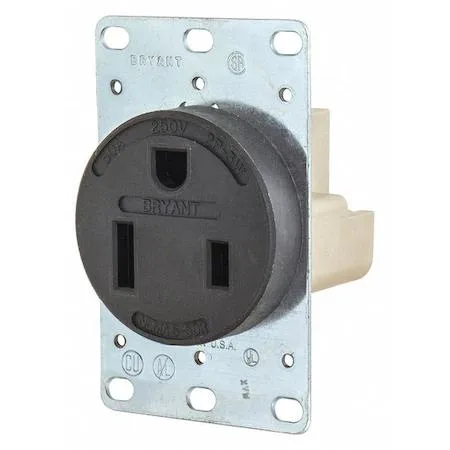

Bryant 9650FR receptacle for 50 A circuits

The Bryant 9650FR is a straight-blade receptacle rated for 50 amps at 250 volts AC. It uses a NEMA 6-50R configuration with two poles and three wires for grounded single-phase connections. The black thermoplastic housing is impact-resistant and designed for flush mounting in a single-gang box.

NEMA 6-50R configuration matches high-draw equipment

The single deciding specification is the NEMA 6-50R receptacle configuration, which accepts only matching 6-50P plugs. This 2-pole, 3-wire grounding layout delivers 250 V AC single-phase power at 50 A. Equipment with a different blade pattern or voltage requirement will not connect to this device.

Screw terminals and back wiring handle continuous

Under sustained load the screw-terminal connections and back-wiring method maintain secure contact without loosening. The impact-resistant thermoplastic housing resists heat deformation during prolonged 50 A operation. UL and CSA certifications confirm the device meets safety standards for continuous-duty use in flush-mount installations.

Highlights

  • Rated 50 A at 250 V AC for heavy-duty circuits
  • NEMA 6-50R configuration fits welders and EV chargers
  • UL Listed and CSA Certified for code compliance
  • Impact-resistant thermoplastic housing withstands job-site abuse
  • Flush-mount single-gang design installs cleanly in standard boxes

Specifications

BrandBRYANT
TypeWiring Devices

Questions about this item

What does the 50 A rating mean when the receptacle is wired in a real circuit?

It indicates the maximum continuous current the device is designed to carry safely when properly installed on a circuit protected by a 50 A breaker.

How does the NEMA 6-50R configuration limit what can be plugged in?

The 6-50R layout accepts only matching 6-50P plugs rated for 250 V AC, 2-pole, 3-wire grounded connections.

What mounting depth and box size are required for this flush-mount receptacle?

It fits a standard single-gang flush box with screw-terminal wiring accessed from the back.
