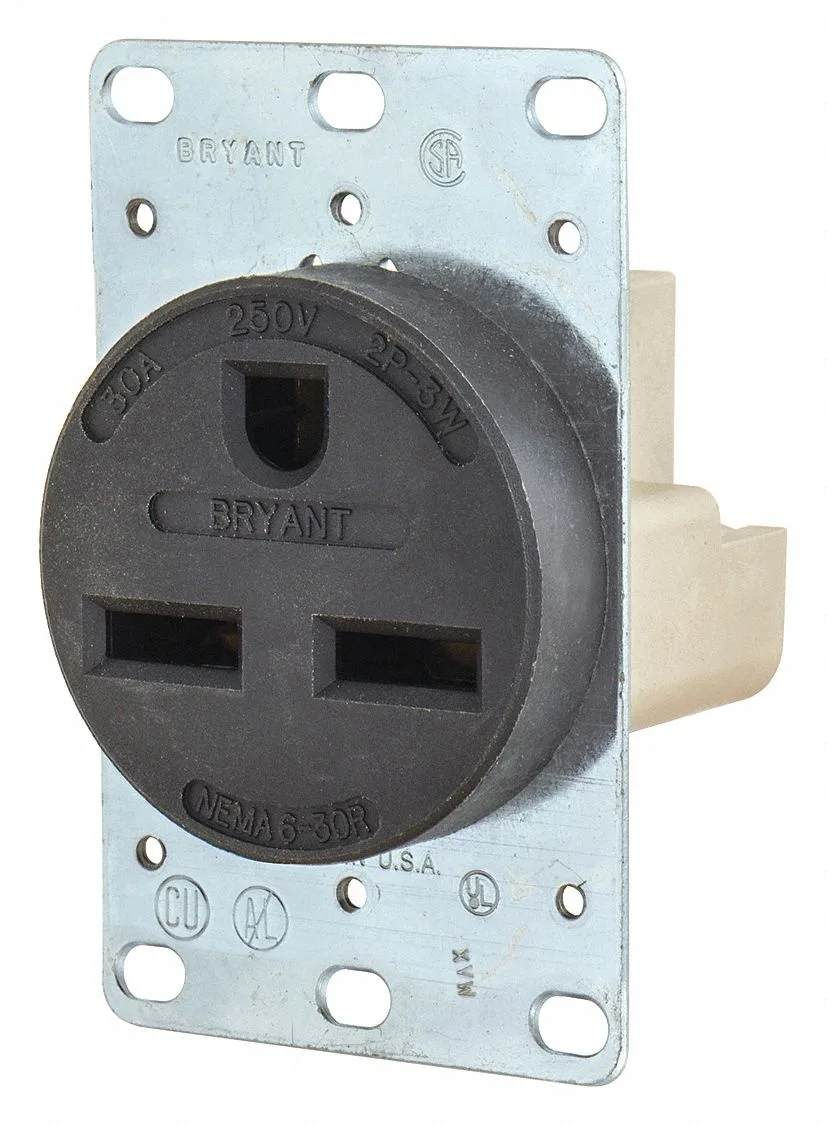

Black thermoplastic flush-mount receptacle with straight-blade slots, single gang, no cover

Bryant

Bryant 9630FR 30 A 250 V AC 6-30R receptacle

SKU CH-G5B3-WPHJ8

A 30 A, 250 V AC grounded receptacle with a NEMA 6-30R configuration for flush mounting

  • TypeWiring Devices
  • 30 A 250 V AC rating powers heavy-duty equipment
  • NEMA 6-30R configuration matches standard 30 A 250 V plugs
  • UL Listed and CSA Certified for verified safety compliance
  • Impact-resistant thermoplastic housing withstands job-site abuse
  • Flush-mount single-gang design fits standard electrical boxes

Bryant 9630FR 30 A Receptacle

The Bryant 9630FR is a single-gang, straight-blade receptacle rated for 30 A at 250 V AC. It features a NEMA 6-30R configuration with two poles and three wires, including a grounding path. The housing uses black impact-resistant thermoplastic and mounts flush without a cover. Screw terminals accept back-wired connections for secure installation.

Suited for 250 V equipment circuits

This receptacle suits installers wiring 250 V AC loads such as welders, compressors or EV chargers that require a 30 A, grounded connection. It is not for buyers who need GFCI or AFCI protection, as the device lacks both features. It is also not for circuits requiring a neutral conductor, since the 6-30R configuration provides two hot poles and ground only. Users needing a cover plate or surface-mount box must source those separately.

NEMA 6-30R configuration decides fit

The single specification that decides compatibility is the NEMA 6-30R receptacle configuration, which defines the blade geometry for 30 A, 250 V AC, two-pole, three-wire service. Only plugs matching this exact pattern will engage correctly and safely. Verifying the plug on the equipment against this NEMA code confirms whether the Bryant 9630FR is the right part for the circuit.

Highlights

  • 30 A 250 V AC rating powers heavy-duty equipment
  • NEMA 6-30R configuration matches standard 30 A 250 V plugs
  • UL Listed and CSA Certified for verified safety compliance
  • Impact-resistant thermoplastic housing withstands job-site abuse
  • Flush-mount single-gang design fits standard electrical boxes

Specifications

BrandBRYANT
TypeWiring Devices

Questions about this item

What does the 30 A rating mean when the receptacle is installed in a circuit?

It indicates the maximum continuous current the device can carry safely when wired to a properly protected 30 A branch circuit at 250 V AC.

What does the NEMA 6-30R configuration cap in practice?

The 6-30R standard defines a 2-pole, 3-wire, 250 V AC, 30 A receptacle that accepts only matching 6-30P plugs, preventing mismatched voltage or amperage connections.

What does the flush-mount design need to fit in a wall box?

A standard single-gang electrical box with screw terminals accessible from the back for 3-wire connection.
