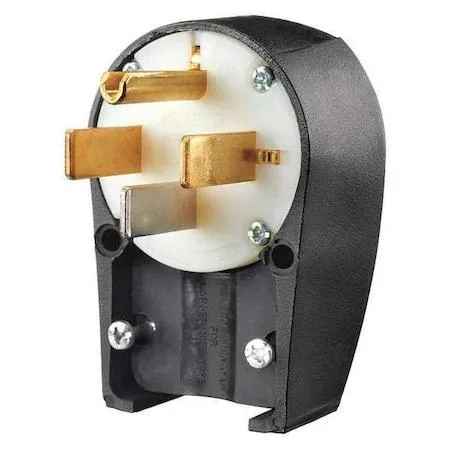

Black angled 4-wire straight blade plug, 14-50P, 50A 125/250V AC

Bryant

Bryant 9452ANPB 4 Wire Angle Straight Blade Plug 125/250VAC 50A electrical box

SKU CH-MXHE-GHS31

Angled 4-wire straight-blade plug rated 50 A at 125/250 V AC with screw terminals for cables from .625 in to 1.38 in

  • TypeStraight Blade Devices
  • Size/Dimensions0.625" to 1.380"
  • 50 A rated for heavy-duty 125/250 V AC loads
  • NEMA 14-50P four-blade layout matches common high-power outlets
  • Angled housing eases insertion in tight panels
  • Screw terminals accept cable from .625 in to 1.38 in
  • Chemical- and impact-resistant body built for industrial use

Industrial 4-wire 50 A plug

The Bryant 9452ANPB is a grounded straight-blade plug rated for 50 amps at 125/250 volts AC. Its NEMA 14-50P configuration suits industrial equipment and high-draw appliances that require a secure angled connection. The housing is black and built to resist chemicals and impact.

Cable and wiring checks

Verify that the supply cable diameter falls between 0.625 and 1.380 inches so the cord grip seals correctly. The device uses screw terminals for a standard four-wire connection; confirm the conductor gauge matches the 50-amp rating and that the installation provides a proper ground path. The plug is single-phase and polarized.

Sustained-load behaviour

Rated for two horsepower at 125 volts and three horsepower at 250 volts, the plug maintains its electrical and mechanical integrity under continuous rated current. Chemical-resistant and impact-resistant materials protect the housing during prolonged industrial use. No IP rating is assigned, so the unit should be shielded from direct liquid exposure.

Highlights

  • 50 A rated for heavy-duty 125/250 V AC loads
  • NEMA 14-50P four-blade layout matches common high-power outlets
  • Angled housing eases insertion in tight panels
  • Screw terminals accept cable from .625 in to 1.38 in
  • Chemical- and impact-resistant body built for industrial use

Specifications

BrandZORO SELECT
TypeStraight Blade Devices
Size/Dimensions0.625" to 1.380"

Questions about this item

What comes with the 9452ANPB plug and what must I buy separately?

The plug itself is supplied; you must purchase a compatible cable with an outer diameter between .625 in and 1.38 in and wire it to the screw terminals.

Which NEMA configuration should I choose for a 50 A 125/250 V AC circuit?

The 14-50P configuration matches a 50 A, 125/250 V AC, single-phase, three-pole, four-blade grounded receptacle.

What does the 50 A rating mean when the plug is installed in a real machine?

It indicates the maximum continuous current the plug can carry at 125/250 V AC in a single-phase, grounded circuit when wired with cable within the .625–1.38 in range.
