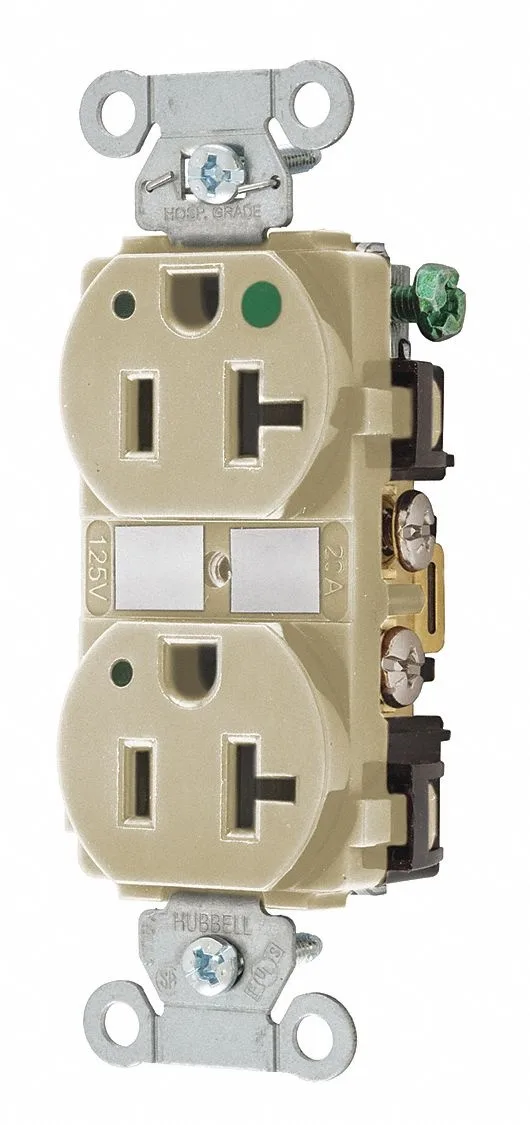

Ivory nylon duplex receptacle, flush-mount, grounded, impact-resistant

Bryant

Bryant 8300HBIL 20 A 125V AC Straight Blade Receptacle

SKU CH-6P75-CNART

A 20 A, 125V AC duplex receptacle with NEMA 5-20R configuration, impact-resistant nylon housing, and CSA, UL 498, and Federal Specification W-C-596 compliance

  • TypeWiring Devices
  • 20 A / 125 V AC rating powers heavy-duty equipment
  • NEMA 5-20R configuration ensures correct plug fit
  • Impact-resistant nylon housing withstands jobsite abuse
  • CSA C22.2, UL 498 and Federal Spec W-C-596 certified
  • Single-gang flush mount simplifies standard box installation

Straight-blade 5-20R receptacle for 20 A circuits

The Bryant 8300HBIL is a 20 A, 125V AC duplex receptacle built to NEMA 5-20R configuration. It suits residential or light-commercial wiring where a grounded, polarised outlet is required on a single-gang flush mount.

Impact-resistant nylon housing holds up under

The ivory-coloured nylon body is rated impact resistant and meets CSA C22.2, UL 498, Federal Specification W-C-596 and NEMA WD-6. These certifications confirm the device withstands repeated insertion cycles and mechanical stress without cracking or degrading.

Flush-mount design simplifies rough-in

The single-gang, two-pole, three-wire layout fits standard boxes and accepts back or side wiring. No cover is included, so a matching wall plate must be sourced separately; the absence of GFCI means downstream protection must be provided elsewhere if code requires it.

Highlights

  • 20 A / 125 V AC rating powers heavy-duty equipment
  • NEMA 5-20R configuration ensures correct plug fit
  • Impact-resistant nylon housing withstands jobsite abuse
  • CSA C22.2, UL 498 and Federal Spec W-C-596 certified
  • Single-gang flush mount simplifies standard box installation

Specifications

BrandBRYANT
TypeWiring Devices

Questions about this item

Does the nylon housing stay cool when the 20 A receptacle runs continuously?

The nylon housing is impact resistant and rated for 20 A at 125V AC, so it handles normal continuous loads without overheating.

What wiring must already be in place for this 5-20R duplex to install?

You need a single-phase 125V AC circuit with three wires — hot, neutral and ground — and a standard flush-mount box for the single-gang mount.

Will this CSA-certified 5-20R receptacle fit in the same flush box as older NEMA devices?

Yes, the single-gang flush mount follows NEMA WD-6 dimensions, so it fits standard boxes used by older NEMA receptacles.
