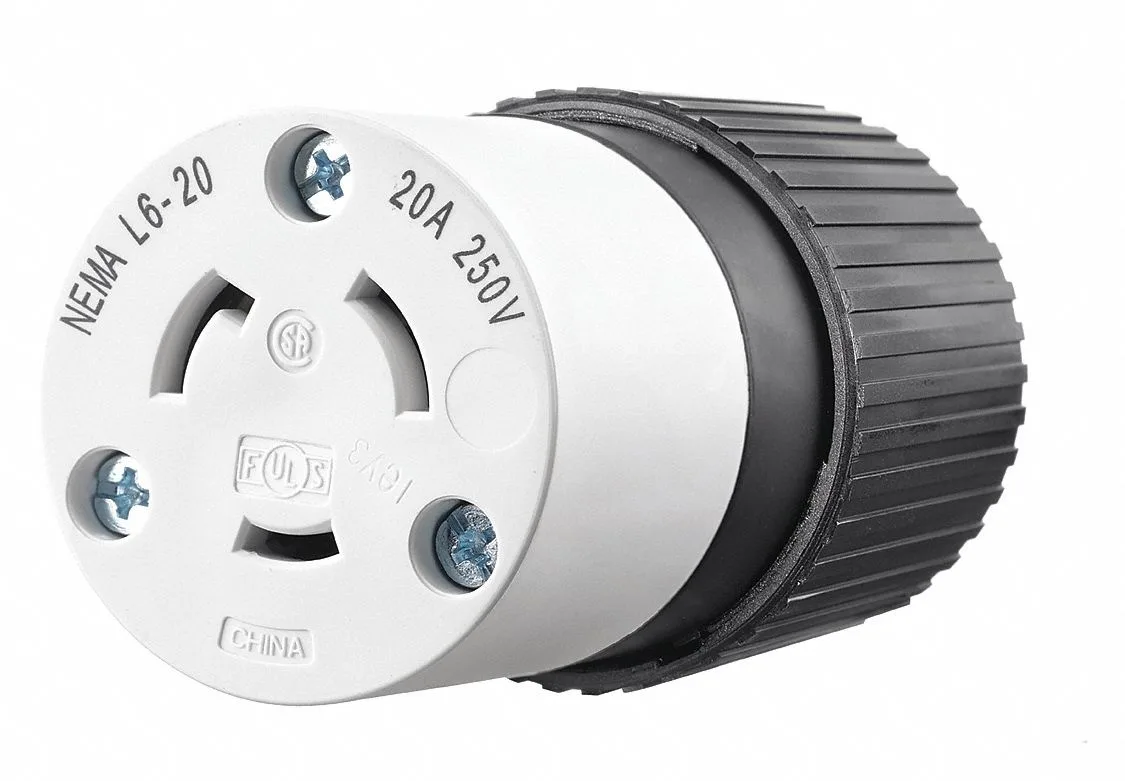

Bryant 70620NC nylon locking wire cap connector black white .300 to .655 inches

Bryant

Bryant 70620NC Locking Wire Cap Connector Nylon 20A 250V

SKU CH-C1F5-E2Y0X

Nylon locking wire cap connector rated 20 A at 250 VAC, accepts wire sizes from .300" to .655"

  • Size/Dimensions0.300" to 0.655"
  • Color MappingBlack/White
  • MaterialNylon
  • TypeDisconnect Terminal & Tab Electrical Connectors
  • Rated for 20 amps and 250 volts AC
  • Locking mechanism secures the connection
  • Nylon housing resists heat and impact
  • Accepts wire diameters from .300 to .655 inches
  • Two-pole disconnect terminal and tab design

What This Connector Does

The Bryant 70620NC is a locking wire cap connector built from nylon. It accepts wire diameters from .300" to .655" and carries a 20 A, 250 VAC rating across two poles. Electricians and automotive technicians use it for quick-disconnect terminal and tab connections that must stay secure under vibration.

Thermals Noise Power

The nylon housing insulates the contacts and resists heat generated at the rated 20 A load. No moving parts or active cooling are present, so the connector adds no audible noise to the circuit. Power draw is determined entirely by the downstream device, not by the connector itself.

Deciding Specification

The two-pole, 20 A, 250 VAC rating is the single figure that determines fit. Buyers who need more poles, a higher current rating or a different voltage class cannot use this part.

Highlights

  • Rated for 20 amps and 250 volts AC
  • Locking mechanism secures the connection
  • Nylon housing resists heat and impact
  • Accepts wire diameters from .300 to .655 inches
  • Two-pole disconnect terminal and tab design

Specifications

BrandBryant
Size/Dimensions0.300" to 0.655"
Color MappingBlack/White
MaterialNylon
TypeDisconnect Terminal & Tab Electrical Connectors

Questions about this item

How do I install the Bryant 70620NC locking wire cap connector and what step is often missed?

Strip each wire to the correct length, insert into the connector until the internal metal tab clicks into the locking detent, then tug gently to confirm the lock has engaged; the click is the step most people skip.

What maintenance or replacement will the Bryant 70620NC connector need over time?

Inspect the nylon body for heat-related cracking or discolouration and check that the locking tab still springs back firmly; replace the connector if the latch no longer holds or the insulation shows degradation.

What is the first limit reached when the Bryant 70620NC connector runs at continuous load?

The 20 A / 250 VAC rating is the primary limit; sustained current above 20 A will cause the nylon housing to overheat before any other failure mode appears.
