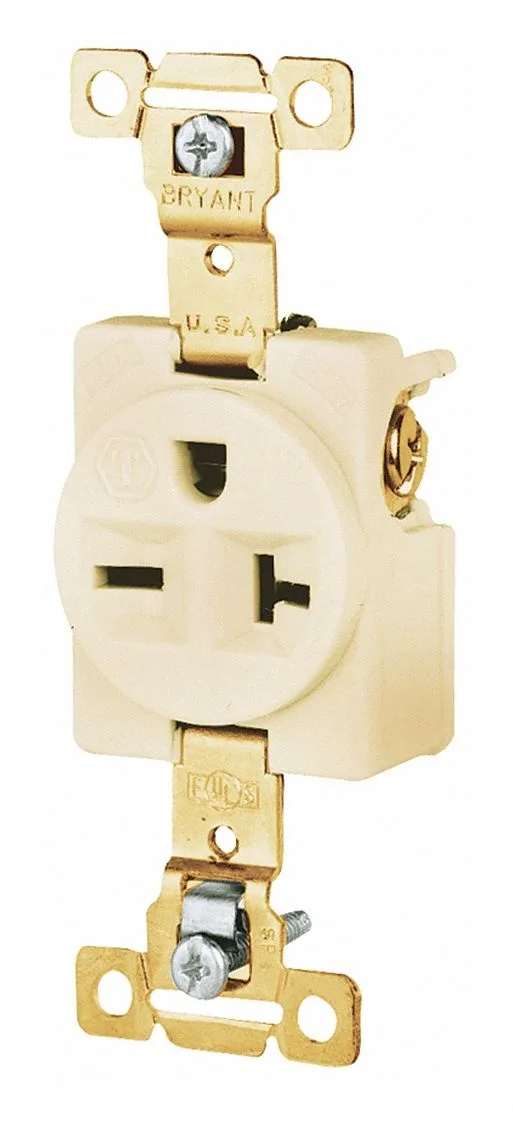

Ivory nylon flush-mount receptacle with screw terminals

Bryant

Bryant 5461I 6-20R 20 A 250V AC electrical box

SKU CH-XPEP-6W58E

A 20 A, 250 V AC single receptacle with NEMA 6-20R configuration, flush-mount ivory nylon housing and screw-terminal wiring

  • TypeWiring Devices
  • 20 A 250 V AC rating powers heavy-duty 250 V equipment
  • NEMA 6-20R configuration accepts matching 20 A 250 V plugs
  • Nylon housing resists corrosion and impact in demanding locations
  • UL Listed and CSA Certified for code-compliant installations
  • Screw terminals with back and side wiring simplify secure connections

Bryant 5461I 6-20R Receptacle

The Bryant 5461I is a straight-blade receptacle rated at 20 A and 250V AC with a NEMA 6-20R configuration. It provides a single grounded outlet using a 2-pole, 3-wire design suitable for dedicated high-power circuits in residential or commercial settings. The ivory nylon housing fits a standard single-gang flush-mount box.

Sustained-load behaviour

Rated for continuous duty at 20 A, the device uses corrosion-resistant contacts and screw-terminal connections for both back and side wiring methods. CSA Certified and UL Listed construction ensures the receptacle maintains its electrical integrity under prolonged heating cycles without nuisance tripping, as no GFCI or AFCI protection is integrated.

Installation notes

Flush mounting into a single-gang box is straightforward with the screw-terminal layout accepting back or side entry. The polarized slots enforce correct plug orientation, while the grounded design requires an equipment-ground conductor. No cover is included, so a compatible wall plate must be sourced separately.

Highlights

  • 20 A 250 V AC rating powers heavy-duty 250 V equipment
  • NEMA 6-20R configuration accepts matching 20 A 250 V plugs
  • Nylon housing resists corrosion and impact in demanding locations
  • UL Listed and CSA Certified for code-compliant installations
  • Screw terminals with back and side wiring simplify secure connections

Specifications

BrandBRYANT
TypeWiring Devices

Questions about this item

Does the Bryant 5461I receptacle generate noticeable heat when carrying a continuous 20 A load at 250V AC?

The device is rated for 20 A at 250V AC with UL and CSA listings, so normal operation at full load stays within certified temperature limits.

What wiring method and wire gauge must the installer already have to terminate the screw terminals on this 6-20R receptacle?

It accepts back and side wiring via screw terminals; use copper conductors sized for 20 A circuits per local code.

Will the ivory nylon housing of the Bryant 5461I match older Bryant receptacles already mounted in the same wall box?

The housing is ivory-coloured nylon; colour consistency with earlier Bryant units of the same finish is typical but not guaranteed.
