Bryant

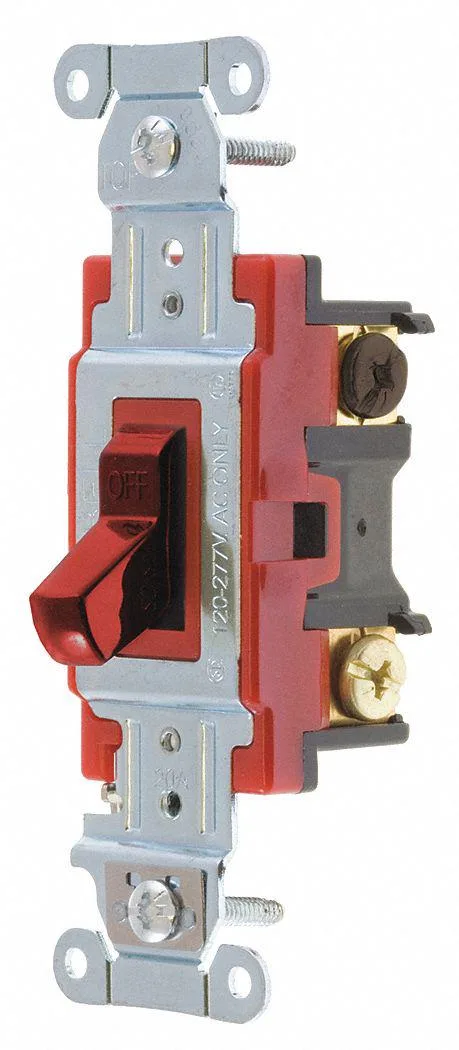

Bryant 4904BRED 20 A Red Toggle 4-Way Switch
A red 4-way toggle switch rated 20 A at 120/277 V AC with screw terminals and a 1.7 in height
- 20 A rating handles heavy-duty circuits
- Red toggle provides clear visual identification
- 4-way switching controls lighting from multiple locations
- 120/277 V AC rating suits commercial systems
- Brass and nickel-plated ground terminal resists corrosion
20 A Red Toggle 4-Way Switch
The Bryant 4904BRED is a 20 A red toggle switch designed for 4-way lighting circuits in industrial and commercial settings. It carries UL and CSA listings and is rated for 120/277 V AC with a 2 hp motor load capacity. The single-gang device uses a maintained toggle action for multi-location control.
Brass Ground Terminal and Screw Connections
Installation uses back or side wiring with screw terminals that accept solid or stranded conductors. The brass and nickel-plated steel ground terminal provides a secure grounding point. Common issues include misidentifying traveller wires in a 4-way layout and over-tightening terminal screws, which can damage the conductor.
Verify Circuit Voltage and Box Depth
Before ordering, confirm the circuit operates at 120/277 V AC and that the existing box can accommodate the switch’s 1.7 in overall height. Ensure the wiring method matches back or side entry and that a 4-way configuration is actually required, not a 3-way or single-pole application.
Highlights
- 20 A rating handles heavy-duty circuits
- Red toggle provides clear visual identification
- 4-way switching controls lighting from multiple locations
- 120/277 V AC rating suits commercial systems
- Brass and nickel-plated ground terminal resists corrosion
Specifications
| Brand | BRYANT |
|---|
Questions about this item
How can I confirm the Bryant 4904BRED toggle is wired correctly after installation?
With power off, use a continuity tester across the two brass traveler terminals in each toggle position; the circuit should close only when the lever is flipped.
What components are included with the 4904BRED and what must I supply?
The switch body with red toggle, brass traveler screws, nickel-plated steel ground screw and mounting screws are provided; you must supply 120/277 V AC wire and wire connectors.
Which Bryant 4904BRED variant should I select for a 20-amp lighting circuit?
Choose the single 20 A, 120/277 V AC, 4-way toggle model listed; no other amperage, voltage or style options exist for this part number.
