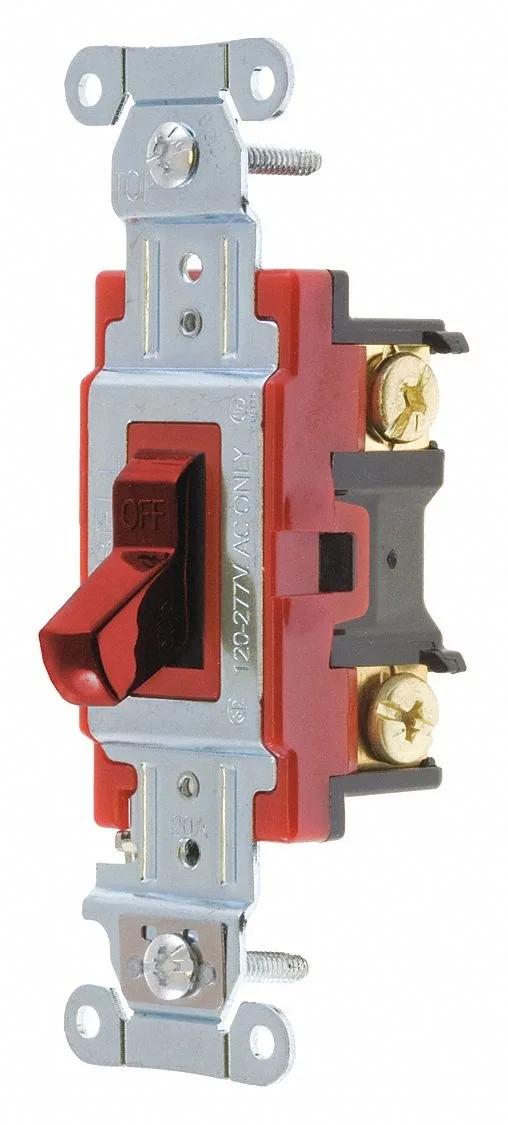

Bryant 4901BRED 20 A Toggle Wall Switch Red
20 A single-pole toggle switch rated 120/277 V AC with 2 hp motor capacity and screw terminals
- 20 A rating handles heavy-duty industrial loads
- 2 hp motor control suits machinery applications
- 120/277 V AC compatibility fits standard circuits
- Back and side wiring offers flexible installation
- UL/CSA standards ensure code-compliant safety
Industrial Toggle Switch
The Bryant 4901BRED is a single-pole toggle switch rated for 20 A at 120/277V AC. It is built for industrial control panels and machinery where a maintained contact is required. The red actuator provides clear visual identification in busy electrical enclosures. This switch suits electricians and maintenance crews wiring motor starters or lighting circuits.
Back and Side Wiring Limits
The device accepts both back and side wiring with screw terminals for secure conductor retention. Voltage rating is fixed at 120/277V AC, so it cannot be used on higher voltage systems. The 2 hp motor rating at this voltage defines the maximum inductive load it can handle. Installers must not exceed the 20 A current rating on resistive or motor loads.
Standard Box Installation
Overall height is 1.7 in, allowing fit in standard industrial wall boxes. Brass and nickel-plated steel ground terminal simplifies grounding compliance with UL/CSA standards. Common issues include over-tightening terminal screws which can damage the brass contacts. Ensure the toggle moves freely after mounting to confirm proper alignment.
Highlights
- 20 A rating handles heavy-duty industrial loads
- 2 hp motor control suits machinery applications
- 120/277 V AC compatibility fits standard circuits
- Back and side wiring offers flexible installation
- UL/CSA standards ensure code-compliant safety
Specifications
| Brand | BRYANT |
|---|
Questions about this item
Which version of the Bryant 4901BRED toggle switch should I choose for a 20 A circuit?
This model is a single-pole switch rated at 20 A and 2 hp, so it fits a standard 20 A branch circuit.
What does the 20 A rating mean once the switch is installed?
It indicates the maximum continuous current the contacts can carry at 120/277 V AC without overheating.
What wiring standard does the screw-terminal connection follow, and what does it cap in practice?
The UL/CSA-listed screw terminals accept back and side wiring for solid or stranded conductors up to the device’s 20 A rating.
