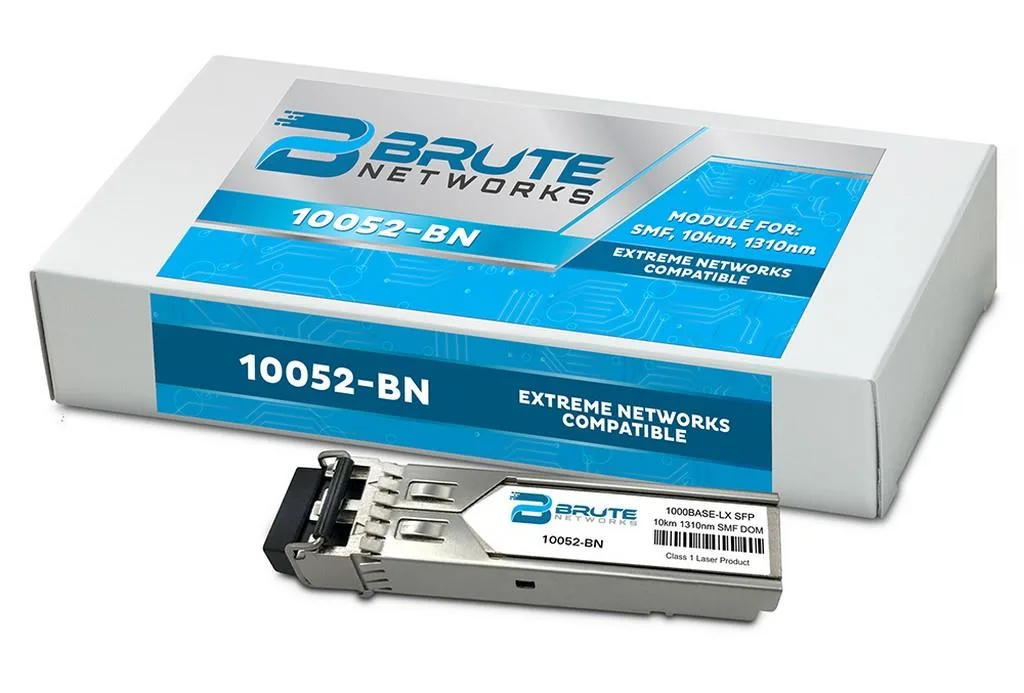

Small rectangular SFP transceiver module with LC duplex connector and metallic finish

Brute Networks

Brute Networks 10052 1000BASE-LX 10km 1310nm SFP transceiver

SKU CH-B5C4-5D815

A 1 Gbps SFP transceiver for single-mode fibre at 1310 nm wavelength with a 10 km reach and commercial temperature rating up to 70 °C

  • Device TypeTransceiver
  • StandardsSMF
  • Wavelength1310nm
  • Fiber CableSingle-mode Optical Fiber
  • Ports1000Base-LX
  • Max Distance10km
  • 10 km reach on single-mode fibre at 1310 nm
  • 1 Gbps transfer rate for gigabit Ethernet links
  • Commercial temperature range from 0 to 70 °C
  • MSA compliant and 100 % Extreme Networks compatible
  • Digital optical monitoring provides real-time link diagnostics

1000BASE-LX SFP transceiver for 10 km links

This module provides a single-mode fibre uplink at 1 Gbps over distances up to 10 kilometres. It operates at a 1310 nm wavelength using an LC duplex connector. The unit is coded for full compatibility with Extreme Networks equipment carrying part number 10052. It suits network administrators extending switched infrastructure across campus or metro spans.

Practical limits of the SFP interface

The transceiver supports a commercial temperature range from 0 to 70 degrees Celsius. Maximum reach is 10 km on single-mode fibre; performance beyond that distance is not guaranteed. Digital optical monitoring is built in for real-time link diagnostics. The SFP form factor restricts use to devices with an available SFP slot and matching 1000BASE-LX optics on the far end.

Replaces an OEM Extreme Networks 10052 module

This third-party unit meets or exceeds the original MSA specifications and initialises identically in the host device. It is a direct, cost-effective substitute when an OEM transceiver fails or when additional ports must be populated. The jump is worth it when the buyer needs a lifetime-warranted replacement that interoperates with existing Extreme Networks gear without reconfiguration.

Highlights

  • 10 km reach on single-mode fibre at 1310 nm
  • 1 Gbps transfer rate for gigabit Ethernet links
  • Commercial temperature range from 0 to 70 °C
  • MSA compliant and 100 % Extreme Networks compatible
  • Digital optical monitoring provides real-time link diagnostics

Specifications

BrandExtreme Networks
Model10052
Device TypeTransceiver
StandardsSMF
Wavelength1310nm
Fiber CableSingle-mode Optical Fiber
Ports1000Base-LX
Max Distance10km
Transfer Rate1 Gbps
LEDsPower, Link/Activity, Full-Duplex, and Speed
Temperature0? ~ 70? C
Weight1 oz.
DisclaimerThird Party product. Part number 10052 is property of Extreme Networks.

Questions about this item

Which SFP transceiver do I need for a 10 km single-mode link at 1310 nm?

This module is a 1000BASE-LX SFP rated for 10 km over single-mode fibre at 1310 nm with an LC duplex connector.

What does the 1 Gbps transfer rate mean when the transceiver is installed in a switch?

It provides a full-duplex 1 Gbps Ethernet link over the fibre pair, limited by the port speed of the host equipment.

What MSA standard does the SFP follow and what does that guarantee?

It is 100 % MSA compliant, so it fits any standard SFP slot and initialises with the correct OEM configuration data for Extreme Networks gear.
