Brother
Brother PTH300 handheld thermal transfer label printer 180 dpi 20 mm/s
Handheld thermal transfer label printer printing 18 mm wide labels at 20 mm/s with 180 dpi resolution, QWERTY keyboard and Vivid Bright display
- Print TechnologyThermal Transfer Printer
- Printer TypeMobile
- Print Speed20 mm / sec.
- Max Resolution(B&W)180 dpi
- Memory30 MB
- Fonts IncludedFont Sizes: Small, Medium, Large, Extra Large Number of Font
- Prints crisp 180 dpi labels up to 18 mm wide
- Produces labels fast at 20 mm per second

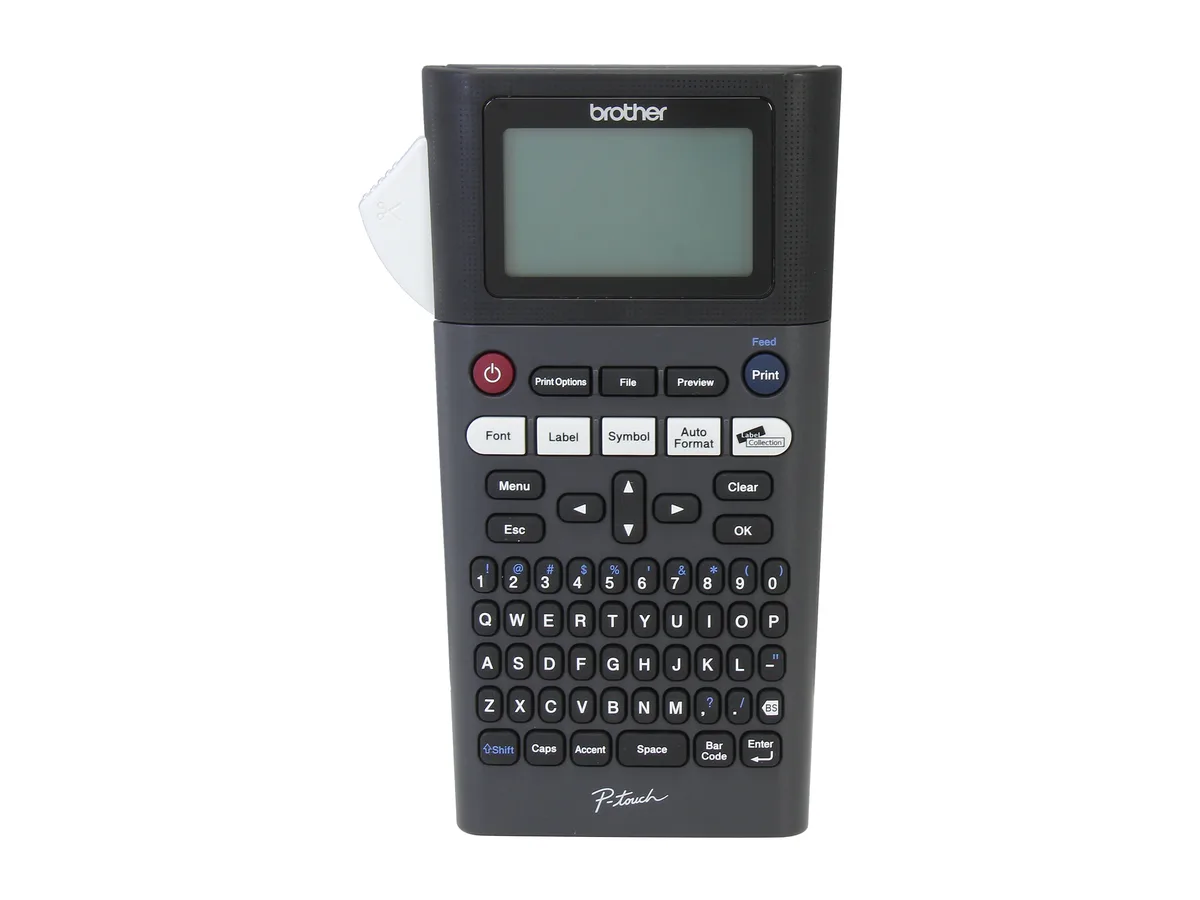

- Types comfortably on full QWERTY keyboard with 14 font styles
- Works anywhere on 6 AA batteries weighing 1.47 lbs
- Creates durable indoor or outdoor labels with 9 barcode types
Handheld thermal transfer label printer
The Brother PTH300 is a portable thermal transfer label printer designed for professionals who create labels on site. It prints at 20 mm/s with a maximum resolution of 180 dpi and supports tape widths from 3.50 mm to 18.00 mm. The unit includes a QWERTY keyboard, a Vivid Bright graphical display, and 30 MB of memory for label storage.
Suits mobile labelling tasks
This model suits electricians, warehouse staff, and retail workers who need durable laminated, flexible, or iron-on labels in the field. It is not for buyers who require automatic cutting, network connectivity, or print widths exceeding 18 mm. The manual cutter and battery operation limit throughput for high-volume stationary workflows.
Sustained use on battery power
Under continuous operation the printer maintains its 20 mm/s speed while running on six AA alkaline cells, though output will pause when the included 4.00 m starter tape is depleted. The 15.80 mm maximum print height and two-line limit keep each label short, so the mechanism does not accumulate heat during extended labelling sessions.
Highlights
- Prints crisp 180 dpi labels up to 18 mm wide
- Produces labels fast at 20 mm per second
- Types comfortably on full QWERTY keyboard with 14 font styles
- Works anywhere on 6 AA batteries weighing 1.47 lbs
- Creates durable indoor or outdoor labels with 9 barcode types
Specifications
| Brand | Brother |
|---|---|
| Model | PTH300 |
| Print Technology | Thermal Transfer Printer |
| Printer Type | Mobile |
| Print Speed | 20 mm / sec. |
| Max Resolution(B&W) | 180 dpi |
| Memory | 30 MB |
| Fonts Included | Font Sizes: Small, Medium, Large, Extra Large Number of Font Styles: 14 Font Styles: Normal, Italic Solid, Bold, Outline, Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Solid Fonts: Helsinki, Brussels, US, Florida, Belgium, San Diego, Los Angeles, Calgary, Adams, Atlanta, Brunei, Germany, Sofia, Letter Gothic |
| Barcode Type | 9 kinds: CODE39, ITF 2/5, EAN13, EAN8, UPC-A, UPC-E, CODABAR, GS1-128(UCC/EAN128), CODE128 |
| Cutter | Manual |
| Media Type | Tape Types: Standard Laminated, Flexible ID, Extra Strength Adhesive, Iron-on Fabric, Acid Free, Tamper Evident, Non-Laminated Iron-on Fabric |
| Media sizes supported | Compatible Tape Widths: 12.00 mm, 9.00 mm, 6.00 mm, 3.50 mm, 18.00 mm Compatible Tape Length: 26.20 ft. |
| Print Size | Maximum Print Height: 15.80 mm Maximum Print Lines: 2 |
| Features | Preview your work on the large Brother Vivid Bright display Create and preview work in most any lighting situation Familiar, keyboard-style layout Create labels for indoor or outdoor use Create detailed labels with up to 5 lines of text and graphics Intuitive one-touch keys support quick, easy label formatting Fast print speeds and pre-designed labels support efficient labeling Works with 6 x AA batteries (included) and rechargeable battery or AC adapter (both optional) Hundreds of built-in symbols, fonts, frames and barcodes |
| Dimensions | 5.20" x 8.40" x 2.60" |
| Weight | 1.47 lbs. |
| Package Contents | PT-H300 Label Printer Black on White Standard Laminated TZe Starter Tape 0.70" (18.00 mm) x 13.10 ft. (4.00 m) 6 x AA Alkaline Batteries Wrist Strap User's Guide |
| Shipping weight | 1.81 kg |
| Package size | 345 × 249 × 102 mm |
Questions about this item
What TZe tape widths can I load into the PT-H300?
The printer accepts TZe tapes in 3.5 mm, 6 mm, 9 mm, 12 mm and 18 mm widths, each up to 26.2 ft long.
Can I use the starter tape supplied with the printer for outdoor or industrial labelling?
Yes, the included 18 mm black-on-white standard laminated tape is designed for indoor and outdoor use and resists water, chemicals and abrasion.
How do I confirm the PT-H300 is printing correctly after inserting batteries and tape?
Power on the unit, check the Vivid Bright display for text, then press the Print key; a label should feed out cleanly cut by the manual cutter.
