Brother

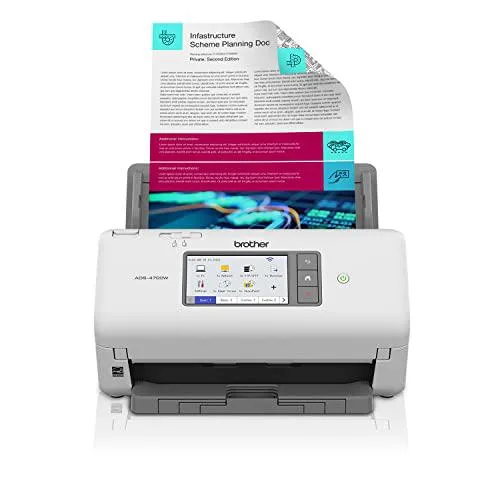

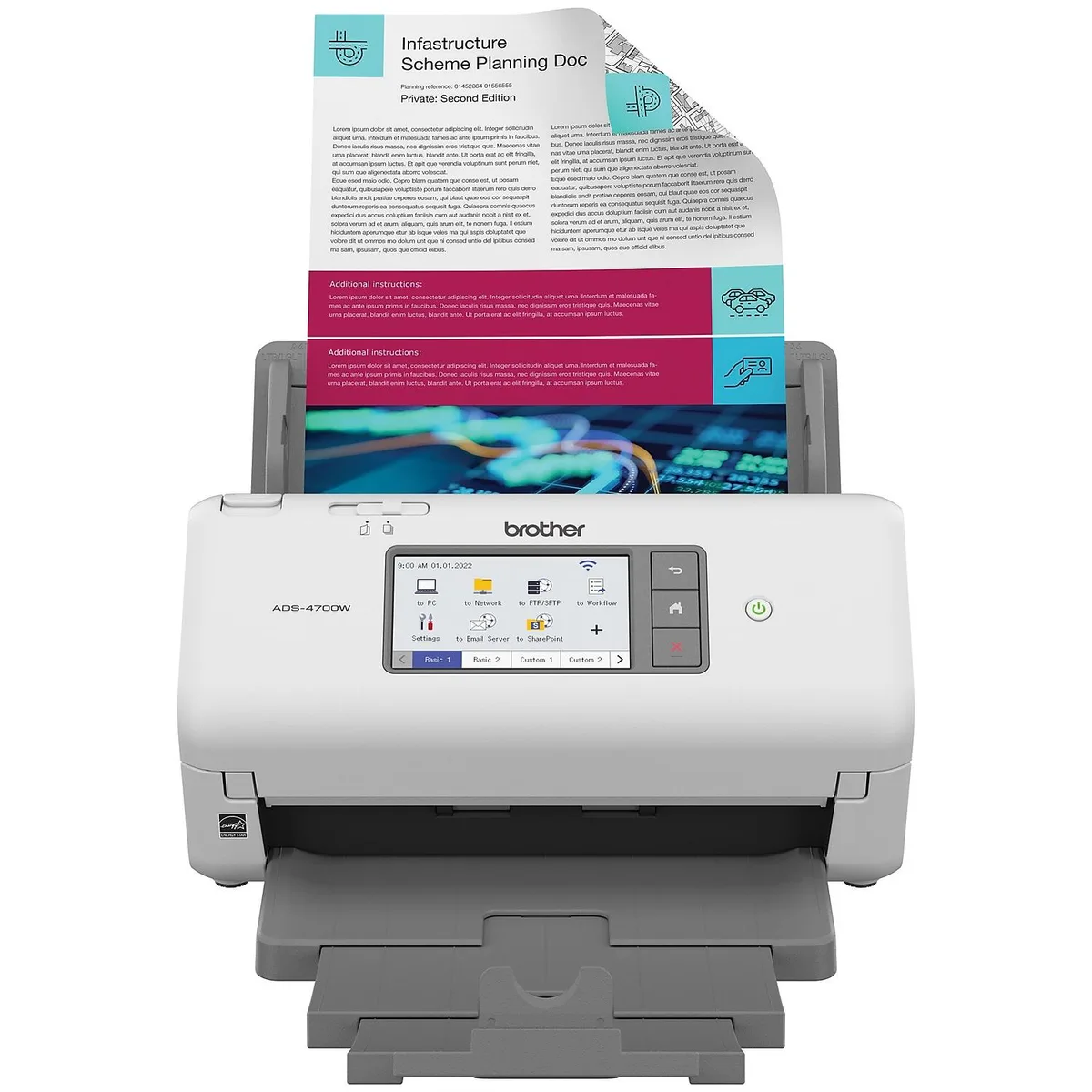

Brother ADS4700W document scanner
Sheet-fed desktop scanner with dual CIS sensors, 80-page automatic feeder, and wireless, Ethernet and USB 3.0 connectivity
- TypeSheet Fed
- Element TypeDual CIS
- Scanning SpeedMax 80 ipm
- Optical Resolution600 x 600 dpi
- Interpolated Resolution1200 x 1200 dpi
- Max. Document Size8.5" x 14"
- Scans up to 80 images per minute with dual CIS sensors
- Captures fine detail at 600 x 600 dpi optical resolution
- Feeds 80 pages automatically for batch scanning without reloading
- Connects via USB 3.0, wireless 802.11 b/g/n or Ethernet
- Handles receipts, cards and photos up to 8.5 x 14 inches
Professional desktop scanner for office workflows
The Brother ADS-4700W is a sheet-fed document scanner built for offices that need fast, two-sided capture in a compact desktop form. It handles plain paper, receipts, business cards, plastic cards and index cards, with a carrier sheet available for photos. An 80-page automatic document feeder supports unattended batch scanning for archives, expense processing or records management.
USB 3.0, Wi-Fi 802.11 b/g/n
SuperSpeed USB 3.0 provides a direct high-speed link compatible with USB 2.0 ports, while wireless 802.11 b/g/n and wired Ethernet let the scanner sit anywhere on the network. The dual CIS sensor delivers 600 x 600 dpi optical resolution and 1200 x 1200 dpi interpolated resolution, with a maximum document width of 8.5 inches and length of 14 inches.
Check OS version and network environment before
Supported systems include Windows 7 SP1, 8.1, 10 Home, Pro, Education, Enterprise and Windows Server 2012, 2012 R2, 2016 and 2019, plus macOS 10.14 through 12. Verify that your router or access point operates on a compatible 802.11 b/g/n band if you plan to use wireless scanning. A USB 3.0 cable and AC adapter are included in the box.
Highlights
- Scans up to 80 images per minute with dual CIS sensors
- Captures fine detail at 600 x 600 dpi optical resolution
- Feeds 80 pages automatically for batch scanning without reloading
- Connects via USB 3.0, wireless 802.11 b/g/n or Ethernet
- Handles receipts, cards and photos up to 8.5 x 14 inches
Specifications
| Brand | Brother |
|---|---|
| Model | ADS4700W |
| Type | Sheet Fed |
| Element Type | Dual CIS |
| Scanning Speed | Max 80 ipm |
| Optical Resolution | 600 x 600 dpi |
| Interpolated Resolution | 1200 x 1200 dpi |
| Max. Document Size | 8.5" x 14" |
| Media Type | Plain, Receipts, Photos (carrier sheet required), Business Cards, Plastic/Laminated Cards (including embossed), Index Card |
| Automatic Document Feeder (ADF) | Yes |
| ADF Capacity | 80 pages |
| USB Ports | SuperSpeed USB 3.0 (USB 2.0 compatible) |
| Other Ports | Wireless 802.11 b/g/n, Ethernet |
| Power Consumption | Power Consumption - Power Off/Ready/Scanning/Sleep: 0.1W / 8.6W / 26W / 1.7W |
| Operating Systems Supported | Windows 7 SP1, 8.1, 10 Home, 10 Pro, 10 Education, 10 Enterprise; Windows Server 2012, 2012 R2, 2016, 2019; macOS v10.14.x, v10.15.x, v11.x, v12.x. |
| Features | Fast scan speeds Scans single and double-sided materials in a single pass, in both color and black / white, at up to 40ppm. Multi-page scanning. Quickly scan a variety of document sizes and types via the large, 80-page capacity auto document feeder to help optimize efficiency. Add additional sheets with continuous scanning mode for even greater productivity. Flexible connectivity options. Easy to set up on your wireless or wired network with built-in wireless or Ethernet network interfaces. Equipped with a USB 3.0 interface for local connectivity. Scan-to your mobile device with AirP |
| Dimensions | 11.70" x 8.50" x 7.50" |
| Weight | 6.40 lbs. |
| Package Contents | Brother ADS-4700W, AC Adapter, USB 3.0 Interface Cable, Quick Setup Guide |
| Shipping weight | 3.72 kg |
| Package size | 394 × 318 × 241 mm |
Questions about this item
Does the ADS-4700W come in different speed or capacity versions?
This model is offered as a single configuration with an 80-page ADF and a maximum scan speed of 80 ipm.
What does the 80 ipm rating mean for everyday two-sided scanning?
In duplex mode the scanner captures both sides in one pass at up to 40 ppm, so the 80 ipm figure represents the combined page count per minute.
What does the SuperSpeed USB 3.0 connection limit in practice?
The USB 3.0 interface supports the full 80 ipm scan rate; USB 2.0 fallback will reduce throughput when used.
