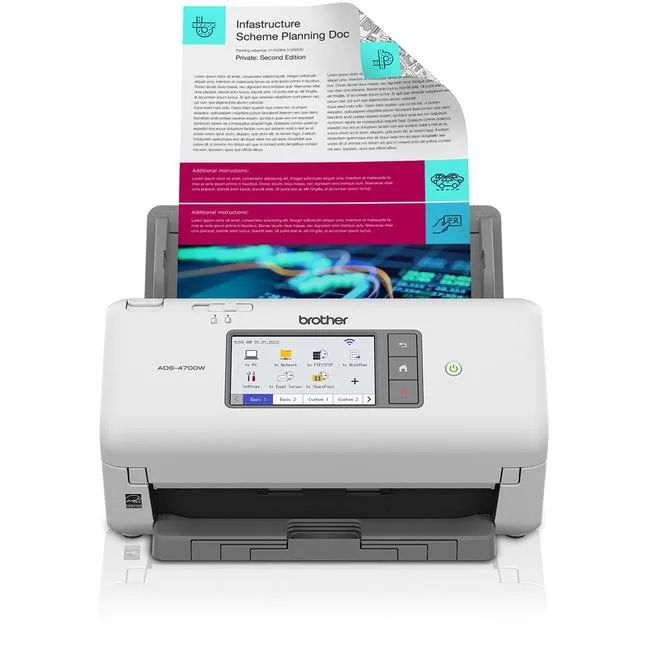

Rectangular white desktop document scanner with 4.3 inch touchscreen and paper feed tray

Brother

Brother ADS-4700W document scanner

SKU CH-C5H6-CFVVD MPN ADS-4700W

Duplex desktop scanner handles up to 80 two-sided pages per minute with a 4.3" touchscreen, wireless, Ethernet and USB 3.0 connectivity

  • TypeDuplex
  • Scanning SpeedSimplex: Up to 40ppm (black / color) Duplex: Up to 80ipm (bl
  • Optical Resolution600 x 600 dpi
  • Interpolated Resolution1200 x 1200 dpi
  • Max. Document Size8.5" x 14"
  • Media TypePlain, Receipts and Photos (carrier sheet recommended), Busi
  • Fast two-sided capture up to 40 ppm simplex and 80 ipm duplex
  • 80-page auto document feeder handles large batches without reloading
  • 3-inch colour touchscreen simplifies job setup and preview
  • USB 3.0, Ethernet and wireless interfaces connect to networks and PCs
  • Included OCR and PDF software turns scans into searchable, editable files

Professional duplex document scanner

The Brother ADS-4700W is a desktop duplex scanner built for offices that need fast, two-sided capture. It handles plain paper, receipts, photos, business cards and laminated cards up to 8.5 by 14 inches. A 4.3 inch colour touchscreen simplifies job selection and walk-up operation.

80-page ADF and 40 ppm simplex throughput

The 80-sheet automatic document feeder feeds stacks for unattended batch scanning. Simplex speed reaches 40 pages per minute in black or colour, while duplex scanning delivers up to 80 images per minute. Optical resolution is 600 by 600 dpi, with interpolated output at 1200 by 1200 dpi for enhanced detail when required.

USB 3.0, Ethernet and wireless network integration

Connectivity includes USB 3.0, wired Ethernet and built-in wireless for direct network attachment. Drivers cover TWAIN, WIA, ISIS and SANE across Windows 7 SP1 through 10 Enterprise, Windows Server 2012 to 2019 and macOS 10.14 to 11.1. Bundled software adds OCR, PDF editing and mobile scanning via Brother Mobile Connect. Not suited for high-volume production environments needing larger feed trays or faster daily duty cycles.

Highlights

  • Fast two-sided capture up to 40 ppm simplex and 80 ipm duplex
  • 80-page auto document feeder handles large batches without reloading
  • 3-inch colour touchscreen simplifies job setup and preview
  • USB 3.0, Ethernet and wireless interfaces connect to networks and PCs
  • Included OCR and PDF software turns scans into searchable, editable files

Specifications

BrandBrother
ModelADS-4700W
TypeDuplex
Scanning SpeedSimplex: Up to 40ppm (black / color)
Duplex: Up to 80ipm (black / color)
Optical Resolution600 x 600 dpi
Interpolated Resolution1200 x 1200 dpi
Max. Document Size8.5" x 14"
Media TypePlain, Receipts and Photos (carrier sheet recommended), Business Cards, Plastic / Laminated Cards (including embossed), Index Card
USB PortsUSB 3.0
Other PortsEthernet
Operating Systems SupportedWindows 7 SP1, 8.1, 10 Home, 10 Pro, 10 Education, 10 Enterprise
Windows Server 2012, 2012 R2, 2016, 2019
macOS v10.14.x, v10.15.x, v11, v11.1.x
Dimensions7.50" x 11.70" x 8.50"
Weight6.40 lbs.
Package ContentsBrother ADS-4700w
AC Adapter
USB 3.0 Interface Cable
Quick Setup Guide
Software IncludedBrother Mobile Connect for iOS and Android
Brother ScanEssentials for Windows
Brother iPrint&Scan (desktop) for Windows and Mac
Kofax PaperPort 14SE with OCR for Windows
Kofax Power PDF v3 for Windows
Shipping weight3.86 kg
Package size391 × 320 × 244 mm

Questions about this item

Will the USB 3.0 port work with my older PC that only has USB 2.0?

Yes, the USB 3.0 interface is backward compatible with USB 2.0 ports, though transfer speeds will be limited to USB 2.0 rates.

How can I confirm the duplex scanner is capturing both sides at the rated 80ipm?

Run a test batch through the 80-page ADF and check the output file count; the 4.3" touchscreen shows real-time page counts and error alerts.

Does the box include a carrier sheet for photos and a network cable for the Ethernet port?

The package contains the ADS-4700W, AC adapter, USB 3.0 cable and quick setup guide; carrier sheets and Ethernet cables are sold separately.
