Brother

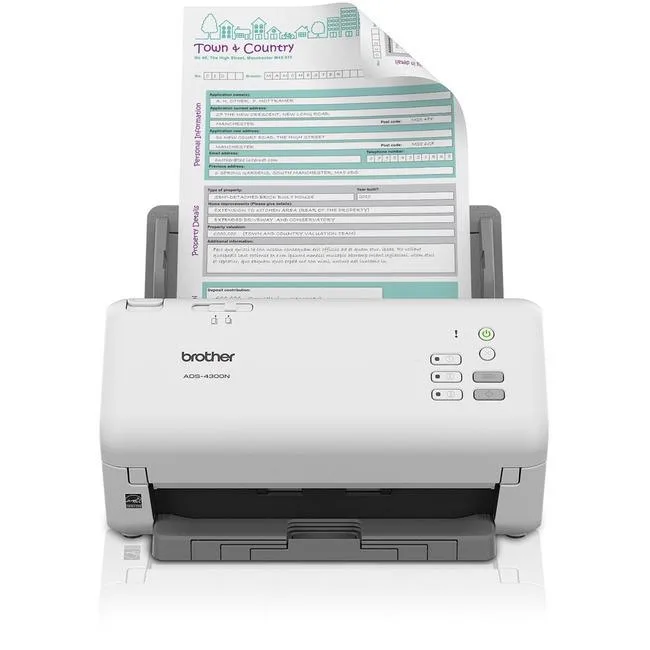

Brother ADS-4300N document scanner
Duplex document scanner captures up to 80 images per minute at 600 dpi with USB 3.0 and Ethernet connectivity
- TypeDuplex
- Scanning SpeedSimplex: Up to 40ppm (black / color) Duplex: Up to 80ipm (bl
- Optical Resolution600 x 600 dpi
- Interpolated Resolution1200 x 1200 dpi
- Max. Document Size8.5" x 14"
- Media TypePlain, Receipts and Photos (carrier sheet recommended), Busi
- Scans two-sided pages at up to 80 images per minute
- Captures detail at 600 x 600 dpi optical resolution
- Handles cards, receipts and legal-size sheets up to 8.5" x 14
- Connects via USB 3.0 or Ethernet for network sharing
- Includes OCR and PDF software for Windows and Mac
Network-ready duplex scanner
The Brother ADS-4300N is a duplex document scanner built for offices that need fast, two-sided capture without a PC connection. It scans up to 40 pages per minute in simplex mode and up to 80 images per minute in duplex mode at 600 x 600 dpi optical resolution. An Ethernet port lets the device sit on a shared network, while USB 3.0 provides a direct local link for single workstations.
Power draw and acoustics
The unit ships with an external AC adapter so the scanner itself runs on low-voltage DC power, keeping heat and fan noise low at the desktop. With a footprint of 7.50 by 11.70 by 8.50 inches and a weight of 6.10 pounds, it stays stable during high-speed feeds without vibrating the surface. No internal power supply means less waste heat in a confined cabinet or shelf.
Integration and media handling
The ADF accepts documents up to 8.5 by 14 inches and handles plain paper, receipts, photos with a carrier sheet, business cards, plastic cards and index cards. Included software covers Windows and Mac desktops plus iOS and Android mobile apps, with OCR and PDF tools bundled for Windows. Buyers who need wireless scanning or a larger daily duty cycle should look at other models.
Highlights
- Scans two-sided pages at up to 80 images per minute
- Captures detail at 600 x 600 dpi optical resolution
- Handles cards, receipts and legal-size sheets up to 8.5" x 14
- Connects via USB 3.0 or Ethernet for network sharing
- Includes OCR and PDF software for Windows and Mac
Specifications
| Brand | Brother |
|---|---|
| Model | ADS-4300N |
| Type | Duplex |
| Scanning Speed | Simplex: Up to 40ppm (black / color) Duplex: Up to 80ipm (black / color) |
| Optical Resolution | 600 x 600 dpi |
| Interpolated Resolution | 1200 x 1200 dpi |
| Max. Document Size | 8.5" x 14" |
| Media Type | Plain, Receipts and Photos (carrier sheet recommended), Business Cards, Plastic / Laminated Cards (including embossed), Index Card |
| USB Ports | USB 3.0 |
| Other Ports | Ethernet |
| Dimensions | 7.50" x 11.70" x 8.50" |
| Weight | 6.10 lbs. |
| Package Contents | Brother ADS-4300n AC Adapter USB 3.0 Interface Cable Quick Setup Guide |
| Software Included | Brother Mobile Connect for iOS and Android Brother ScanEssentials for Windows Brother iPrint&Scan (desktop) for Windows and Mac Kofax PaperPort 14SE with OCR for Windows Kofax Power PDF v3 for Windows |
| Shipping weight | 3.63 kg |
| Package size | 391 × 320 × 244 mm |
Questions about this item
How do I install the ADS-4300N and which step is often missed?
Connect the AC adapter, link the USB 3.0 cable or Ethernet to the network, run the Quick Setup Guide, then install the ScanEssentials, iPrint&Scan and Kofax software from the included media.
What maintenance or replacement will the ADS-4300N need later?
The pick rollers and separation pad wear with use; Brother rates them for high volume, so plan to replace them when feed errors or double-feeds become frequent.
What limit appears first during sustained scanning on the ADS-4300N?
Continuous duplex runs at up to 80ipm can heat the transport path; the scanner will pause automatically to cool before resuming.
