Silver 1U rack-mount switch with 48 RJ-45 ports and front ventilation

Brocade

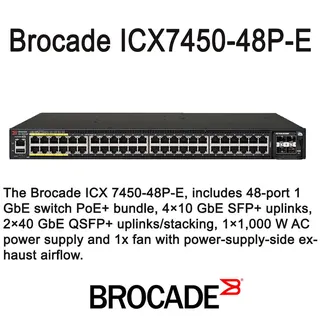

Brocade ICX7450-48P-E 48-port PoE+ network switch

SKU CH-8W69-6KYRB MPN ICX7450-48P-E

A managed 48-port PoE+ switch delivering 30 W on 40 ports and 95 W on 8 ports with 336 Gbps switching capacity and 12-unit stacking

  • FormatRack-mountable - 1U
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.
  • Network Management TypeManaged
  • Primary Ports40 x 1000Base-T - RJ-45 - PoE+ - 30 W 8 x 1000Base-T - RJ-45
  • MAC Address Table32000 entries
  • VLAN SupportVirtual interfaces (VLANs) : 4096
  • 48 PoE+ ports power access points and phones directly
  • 336 Gbps switching capacity handles heavy campus traffic
  • Stack up to 12 units for 576 GbE ports
  • Dual hot-plug supplies keep the rack running
  • L3 static routing plus 4096 VLANs segment the network

48-Port PoE+ Managed Switch

The Brocade ICX7450-48P-E is a 1U rack-mountable managed switch providing 48 Gigabit Ethernet ports. Forty ports deliver up to 30 W PoE+ and eight ports deliver up to 95 W PoH for high-power devices. It supports Layer 3 routing with static IPv4 and IPv6 routes.

Suited for Enterprise Access Layers

This switch fits networks needing dense PoE+ distribution, stacking up to 12 units, and 4096 VLANs. Buyers who require 10 GbE or 40 GbE uplink modules must add optional cards not included here. Environments without rack mounting or PoE needs should consider simpler switches.

336 Gbps Switching Capacity

The forwarding plane delivers 336 Gbps switching capacity and 250 Mpps forwarding performance. This specification determines whether the switch can handle your aggregate traffic load. An optional second hot-plug power supply adds 1+1 redundancy for the 1000 W PoE budget.

Highlights

  • 48 PoE+ ports power access points and phones directly
  • 336 Gbps switching capacity handles heavy campus traffic
  • Stack up to 12 units for 576 GbE ports
  • Dual hot-plug supplies keep the rack running
  • L3 static routing plus 4096 VLANs segment the network

Specifications

BrandBrocade
ModelICX7450-48P-E
FormatRack-mountable - 1U
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Network Management TypeManaged
Primary Ports40 x 1000Base-T - RJ-45 - PoE+ - 30 W
8 x 1000Base-T - RJ-45 - PoH - 95 W
MAC Address Table32000 entries
VLAN SupportVirtual interfaces (VLANs) : 4096
Jumbo Frames9216 bytes
ProtocolsRouting Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
PoEYes
StackableYes
SNMPYes
QoSYes
LACPYes
LayerL3
Port MirroringYes
PowerInternal power supply - hot-plug
Installed Qty: 1 (installed) / 2 (max)
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Power Provided: 1000 W
Voltage Required: AC 120 / 230 V, 50 / 60 Hz
Power Consumption Operational: 106 W
FeaturesSwitching capacity: 336 Gbps
Forwarding performance: 250 Mpps
Stacking bandwidth: 160 Gbps
Spanning Tree Protocol instances: 254
IPv4 routes: 16000
IPv6 routes: 3000
Max Units In A Stack: 12
Encryption Algorithm: AES
Authentication Method: RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Interface
1 x 1000Base-T - RJ-45 - management
1 x mini-USB - management
1 x USB - Type A
(0 / 3) Expansion Slot
Flow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirro
Dimensions1.72" x 17.32" x 15.50"
Weight15.87 lbs.
TemperatureOperating Temperature: -5 °C - 50 °C
Storage Temperature: -25 °C - 70 °C
Humidity5% - 95%, Non-condensing
Shipping weight8.01 kg
Package size491 × 445 × 95 mm

Questions about this item

How many 95 W PoH ports are available on the ICX7450-48P-E?

The switch provides eight 1000Base-T RJ-45 ports rated for 95 W PoH, in addition to forty 30 W PoE+ ports.

What is the typical power draw when all PoE+ and PoH ports are fully loaded?

The internal supply delivers up to 1000 W, enough for forty ports at 30 W and eight ports at 95 W simultaneously.

Which uplink modules must be purchased separately to activate the three modular slots?

Optional modules add up to twelve SFP/SFP+ ports, twelve 10GBASE-T ports, or three 40 GbE QSFP+ ports for uplinks or stacking.
