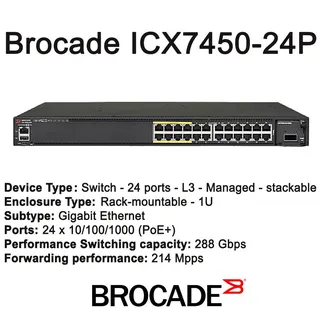

Silver rack-mount network switch with 24 RJ45 ports and status LEDs

Brocade

Brocade ICX7450-24P 24-port PoE network switch

SKU CH-EN17-NSEHX MPN ICX7450-24P

A managed Layer 3 switch with 24 PoE RJ45 ports at 10/100/1000Mbps, stackable design and 9216-byte jumbo frames

  • Switch TypeLayer 3 Switch
  • FormatStackable
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.
  • Network Management TypeManaged
  • Uplink Portsauto-uplink
  • Primary Ports24 x RJ45
  • Power devices through the network with 24 PoE ports
  • Manage traffic at Layer 3 with static IPv4 and IPv6 routing
  • Scale capacity by stacking multiple units together
  • Secure access using AES encryption and IEEE 802.1x authentication
  • Handle large data transfers with 9216-byte jumbo frames

24-Port PoE Layer 3 Switch

The Brocade ICX7450-24P is a managed Layer 3 switch with 24 RJ45 ports operating at 10/100/1000Mbps. It supports Power over Ethernet under IEEE 802.3af and 802.3at standards. The unit is stackable and includes auto-uplink capability for flexible deployment.

Suited for managed PoE access layers

Network administrators needing Layer 3 routing, VLANs, QoS, LACP and port mirroring on a 24-port PoE platform will find this switch appropriate. It fits environments requiring stackable managed access with static IPv4 and IPv6 routing, IGMP and MLD snooping. Buyers needing higher port density, 10GbE primary ports or integrated 10G uplinks should evaluate other models.

32K MAC table and 9216-byte jumbo frames

The 32K MAC address table handles typical access-layer forwarding tables. Jumbo frame support up to 9216 bytes accommodates large MTU workloads. PoE power budget depends on installed power supplies; the chassis accepts up to two hot-plug supplies with optional 1+1 redundancy. Operational draw is rated at 75 watts.

Highlights

  • Power devices through the network with 24 PoE ports
  • Manage traffic at Layer 3 with static IPv4 and IPv6 routing
  • Scale capacity by stacking multiple units together
  • Secure access using AES encryption and IEEE 802.1x authentication
  • Handle large data transfers with 9216-byte jumbo frames

Specifications

BrandBrocade
ModelICX7450-24P
Switch TypeLayer 3 Switch
FormatStackable
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Network Management TypeManaged
Uplink Portsauto-uplink
Primary Ports24 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table32K
VLAN SupportYes
Jumbo Frames9216 bytes
ProtocolsRouting Protocol:
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD
Remote Management Protocol:
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
SecurityEncryption Algorithm: AES
PoEYes
StackableYes
SNMPSNMP 1, SNMP 3, SNMP 2c
QoSYes
LACPYes
Port MirroringYes
PowerInstalled Qty:
0 (installed) / 2 (max)
Power Consumption: 75 Watt (operational)
Power Device:
Internal power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
FeaturesFlow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, High Availability, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) suppo
Dimensions1.72" x 17.32" x 15.50"
Weight15.21 lbs.
TemperatureOperating temperature: -5 °C to 50 °C
Storage temperature: -25 °C to 70 °C
HumidityOperating: 5 - 95% (non-condensing)
Storage: 0 - 95% (non-condensing)
Shipping weight7.71 kg
Package size508 × 445 × 94 mm

Questions about this item

What power source must I provide for the 24 PoE ports on the ICX7450-24P?

The switch ships with zero installed power supplies and accepts up to two hot-plug internal units; you must install at least one to deliver PoE power.

Will my existing 10/100 Mbps devices work on the 24 RJ45 ports of the ICX7450-24P?

Yes, each primary port auto-negotiates at 10, 100 or 1000 Mbps, so legacy 10/100 gear connects without configuration.

How can I verify the ICX7450-24P is forwarding traffic correctly after installation?

Check the MAC address table for learned entries up to 32K, confirm VLAN tags pass on tagged ports, and monitor SNMP or RMON counters for increasing packet counts.
