Silver rack-mount network switch with 24 RJ45 ports

Brocade

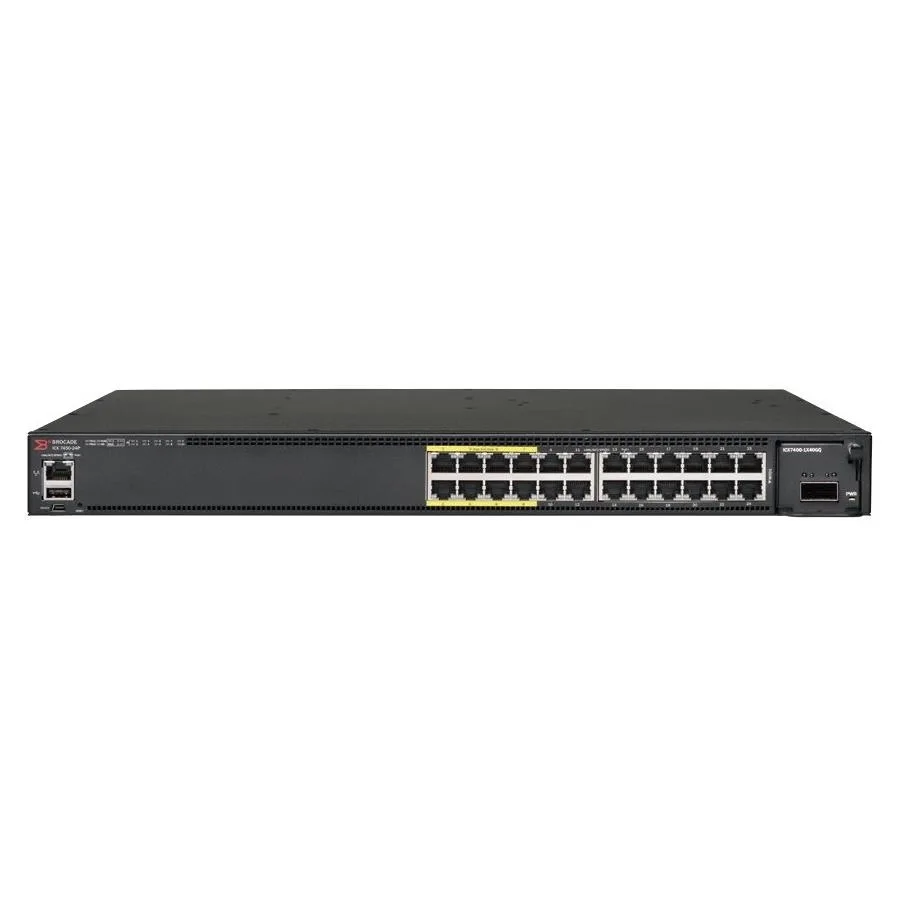

Brocade ICX7450-24 24-port network switch

SKU CH-GH4Z-47JT7 MPN ICX7450-24

A managed 24-port Gigabit switch with 32K MAC table, VLAN, QoS and optional 1+1 power redundancy

  • FormatStackable
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.
  • Network Management TypeManaged
  • Uplink Portsauto-uplink
  • Primary Ports24 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • 24 RJ45 ports deliver 10/100/1000 Mbps connectivity
  • Stackable design expands capacity with up to three modules
  • Managed operation provides SNMP, HTTPS and CLI control
  • 32K MAC table and 9216-byte jumbo frames handle heavy traffic
  • Hot-plug power supply with optional 1+1 redundancy keeps networks running

24-port stackable managed switch

The Brocade ICX7450-24 is a stackable managed switch with 24 RJ45 ports running at 10/100/1000Mbps. It supports a 32K MAC address table, VLANs, jumbo frames up to 9216 bytes and static IPv4 or IPv6 routing with ECMP. Remote management uses SNMP, RMON, Telnet, HTTPS, TFTP and CLI.

Upgrade from unmanaged or non-stackable switches

This model replaces unmanaged switches that lack VLAN, QoS, LACP or port mirroring, and non-stackable managed units that cannot share a single control plane. The jump is worth it when you need Layer 3 static routing, multicast snooping with IGMP or MLD, AES encryption and the ability to add up to three modules or a second hot-plug power supply for 1+1 redundancy.

24 copper ports with module and power headroom

The 24 primary ports handle Gigabit connections for access-layer deployments, while three module slots and a second power supply bay provide headroom for uplink expansion and failover. Operational draw is 69 Watt. Networks requiring more than 24 copper ports, built-in uplinks beyond auto-uplink, or routing protocols beyond static and multicast will need additional switches or a different platform.

Highlights

  • 24 RJ45 ports deliver 10/100/1000 Mbps connectivity
  • Stackable design expands capacity with up to three modules
  • Managed operation provides SNMP, HTTPS and CLI control
  • 32K MAC table and 9216-byte jumbo frames handle heavy traffic
  • Hot-plug power supply with optional 1+1 redundancy keeps networks running

Specifications

BrandBrocade
ModelICX7450-24
FormatStackable
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az
Network Management TypeManaged
Uplink Portsauto-uplink
Primary Ports24 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table32K
VLAN SupportYes
Jumbo Frames9216 bytes
ProtocolsRouting Protocol:
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD
Remote Management Protocol:
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
SecurityEncryption Algorithm: AES
StackableYes
SNMPSNMP 1, SNMP 3, SNMP 2c
QoSYes
LACPYes
Port MirroringYes
Module Support0 (installed) / 3 (max)
PowerInstalled Qty:
0 (installed) / 2 (max)
Power Consumption: 69 Watt (operational)
Power Device:
Internal power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
FeaturesFlow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, High Availability, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) suppo
Dimensions1.72" x 17.32" x 15.50"
Weight14.11 lbs.
TemperatureOperating temperature: -5 °C to 50 °C
Storage temperature: -25 °C to 70 °C
HumidityOperating: 5 - 95% (non-condensing)
Storage: 0 - 95% (non-condensing)
Shipping weight7.76 kg
Package size516 × 445 × 94 mm

Questions about this item

What optional modules does the stackable ICX7450-24 accept for uplink expansion?

The switch has three module slots available; zero are populated from the factory.

How do you install a redundant power supply in the ICX7450-24 and what mistake should be avoided?

Insert the second hot-plug unit into the empty bay while the first remains live; do not power down the switch during the swap.

When will the internal fan assembly on the ICX7450-24 need replacement?

Fans are field-replaceable; plan replacement when acoustic noise rises or the chassis health monitor reports a fan fault.
