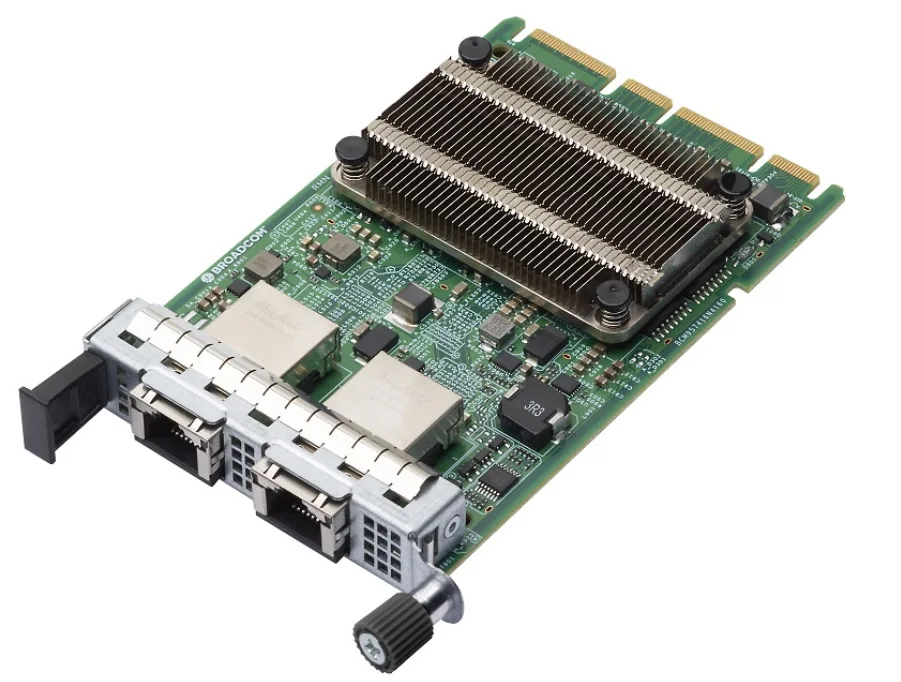

Broadcom dual-port 10GBASE-T OCP 3.0 card with pull-tab bracket

Broadcom

Broadcom BCM957416N4160C dual-port 10GBASE-T network card

SKU CH-SVH1-HS3DC MPN BCM957416N4160C

Dual-port 10GBASE-T adapter with PCI Express 3.0 x8 and SR-IOV supporting 128 virtual functions

  • Speed10Gbps
  • InterfacePCI-Express 3.0 x8
  • FeaturesDual Port 10 Gb/s 10GBASE-T interface: - 10GBASE-T IEEE 802.
  • Dual 10 Gb/s ports for high-speed networking
  • PCI Express 3.0 x8 interface delivers ample bandwidth
  • SR-IOV with up to 128 virtual functions enables efficient virtualization
  • RoCE support accelerates storage and compute workloads
  • OCP 3.0 small form factor fits dense server deployments

Dual-Port 10GBASE-T Adapter

The Broadcom BCM957416N4160C is a dual-port 10GBASE-T network adapter built to the OCP 3.0 small-form-factor specification. It connects through a PCI Express 3.0 x8 interface and uses the Broadcom BCM57416 controller. The card supports 10GBASE-T and 1000BASE-T Ethernet on Category 6, 6A, or 7 twisted-pair cables, with 1000BASE-T also operating on standard Category 5e UTP.

Suited For Virtualised And High-Throughput Servers

This adapter suits servers that need two 10 Gb/s copper links with SR-IOV virtualization, supporting up to 128 virtual functions, and hardware offloads for tunnelling protocols such as VXLAN, NVGRE, and Geneve. It also provides RDMA over Converged Ethernet and DCB features including PFC, ETS, QCN, and DCBx. Buyers who require fibre connectivity, a single-port design, or a lower-speed 1 Gb/s-only card should consider other options.

Deciding Specification: PCI Express 3.0 x8 Interface

The card requires a PCI Express 3.0 x8 slot to operate at its rated 10 Gb/s per port. If the host system only offers x4 or PCIe 2.0 lanes, throughput will be limited and the adapter may not function as intended. Verify that the server or workstation provides a compatible x8 slot before purchase.

Highlights

  • Dual 10 Gb/s ports for high-speed networking
  • PCI Express 3.0 x8 interface delivers ample bandwidth
  • SR-IOV with up to 128 virtual functions enables efficient virtualization
  • RoCE support accelerates storage and compute workloads
  • OCP 3.0 small form factor fits dense server deployments

Specifications

BrandBroadcom
ModelBCM957416N4160C
Speed10Gbps
InterfacePCI-Express 3.0 x8
FeaturesDual Port 10 Gb/s 10GBASE-T interface:
- 10GBASE-T IEEE 802.3an.
- 1000BASE-T IEEE 802.3ab.
- EEE on 10GBASE-T and 1000BASE-T.
- Auto sense mode.
- Detection and correction of pair swaps (MDI crossover), pair skew, and pair polarity.
- Auto-negotiation with next page support.
- IEEE fast retrain and link monitoring.
x8 PCI Express 3.0 compliant.
SR-IOV with up to 128 virtual functions (VFs).
Function-Level Reset (FLR) support.
TruFlow flow processing engine.
Virtual Network Termination - XVXLAN, NVGRE, Geneve, GRE encap/decap.
vSwitch Acceleration.
Tunnel-aware stateless offloads.
DC
Shipping weight0.91 kg
Package size178 × 127 × 76 mm

Questions about this item

Is the BCM957416N4160C available in a single-port version or only as the dual-port model shown?

The BCM957416N4160C is supplied as a dual-port 10GBASE-T adapter; other port counts would carry different part numbers.

What does the 10 Gb/s rating mean when the card is installed in a server?

Each port can negotiate 10GBASE-T or 1000BASE-T on Category 6, 6A or 7 cabling, with Energy Efficient Ethernet active on both speeds.

The card uses a PCIe 3.0 x8 interface — what does that cap in practice?

The x8 PCIe 3.0 link provides the electrical bandwidth for two 10 Gb/s ports plus SR-IOV with up to 128 virtual functions and RoCE offloads.
