Green printed circuit board with silver metal bracket and two SFP28 cages

Broadcom

Broadcom BCM957414A4142CC 25 Gbps dual-port SFP28 network card

SKU CH-ND8E-YCJP3 MPN BCM957414A4142CC

Dual-port SFP28 card delivers 25 Gbps line-rate throughput with NIC partitioning for 16 physical functions and TruFlow engine for VM density

  • Speed25Gbps
  • Connectors2 x SFP28
  • InterfacePCI-Express
  • FeaturesStandards-compliant 25/10G dual-port SFP28 PCIe NIC with lin
  • Line-rate 25 Gbps throughput per port
  • Dual SFP28 ports support 10 and 25 Gbps speeds
  • NIC partitioning creates 16 physical functions
  • TruFlow engine accelerates vSwitch and raises VM density
  • BroadSAFE Silicon Root of Trust secures the platform

Dual-port 25 Gbps SFP28 NIC for enterprise servers

This Broadcom BCM957414A4142CC card delivers two 25/10 Gbps SFP28 ports over a PCIe 3.0 x8 interface. It targets cloud-scale and enterprise servers that need line-rate, full-duplex throughput for virtualization, storage disaggregation, and high-performance computing workloads. Hardware features include NIC partitioning with 16 physical functions, a TruFlow engine for vSwitch acceleration, and BroadSAFE silicon root of trust for platform security.

PCIe 3.0 x8 bandwidth and SFP28 transceiver limits

The card operates at PCIe 3.0 x8 speeds, so the host slot must provide at least eight lanes of third-generation bandwidth to sustain dual-port 25 Gbps line rate. Each SFP28 cage accepts 25G or 10G transceivers and corresponding direct-attach or optical cables; 100 Gbps or 200 Gbps modules are not supported on these ports. Congestion-avoidance logic and RoCE support run entirely on the controller, but total throughput cannot exceed the electrical limits of the x8 link or the SFP28 interface.

Verify slot width, transceiver type.

Confirm the server motherboard has a free PCIe 3.0 x8 or wider slot with adequate bracket clearance for a low-profile or full-height bracket as supplied. Select SFP28 optics or DACs rated for 25 Gbps or 10 Gbps that match your link distance and fiber type. Ensure the target operating system or hypervisor includes a driver for the Broadcom P225P controller family to enable NIC partitioning, TruFlow, and congestion-management features.

Highlights

  • Line-rate 25 Gbps throughput per port
  • Dual SFP28 ports support 10 and 25 Gbps speeds
  • NIC partitioning creates 16 physical functions
  • TruFlow engine accelerates vSwitch and raises VM density
  • BroadSAFE Silicon Root of Trust secures the platform

Specifications

BrandBroadcom
ModelBCM957414A4142CC
Speed25Gbps
Connectors2 x SFP28
InterfacePCI-Express
FeaturesStandards-compliant 25/10G dual-port SFP28 PCIe NIC with line-rate, full-duplex throughput
NIC partitioning supporting 16 physical functions (PFs)
TruFlow engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing
Industry's most secure PCIe NIC solution leveraging Broadcom's BroadSAFE technology to provide unparalleled platform security via Silicon Root of Trust

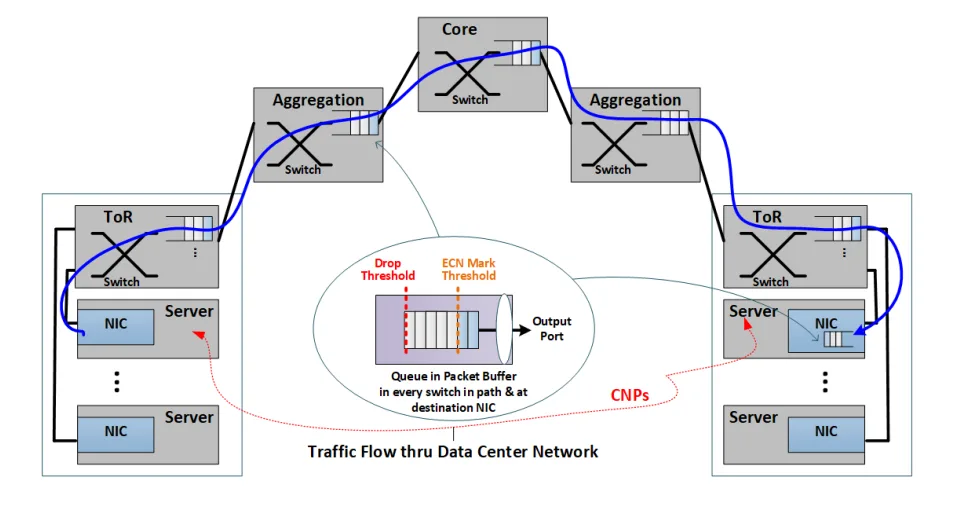

New end-to-end congestion avoidance and management to anticipate and eliminate congestion before it happens
Support for advanced networking technologies including RoCE, SDN, NFV an
Shipping weight0.22 kg
Package size241 × 165 × 32 mm

Questions about this item

Should I choose the dual-port 25 Gbps SFP28 card or a single-port alternative?

This card provides two SFP28 ports, each running at 25 or 10 Gbps, doubling the available links for redundancy or bandwidth aggregation in a single PCIe slot.

What does the 25 Gbps rating deliver inside a server?

Each port sustains line-rate, full-duplex 25 Gbps throughput, so the card moves 50 Gbps of combined traffic without host-CPU bottlenecks.

How does the PCI Express 3.0 x8 interface affect the 25 Gbps speed?

The PCIe 3.0 x8 link supplies enough bandwidth for both 25 Gbps ports at full duplex, so the bus does not cap the advertised line rate.
