Clear plastic push-button lockout base, adhesive mounted, fits one padlock

Brady

Brady 130823 Push Button Lockout Base Clear Plastic 1 Padlock personal protective equipment

SKU CH-RHC7-05PSR

Clear polycarbonate push-button lockout base fits buttons up to .87 in and accepts one padlock with a 69/250 in shackle, mounting permanently via adhesive strip

  • Clear polycarbonate shows button status at a glance
  • Adhesive strip mounts permanently without drilling tools
  • Fits 0.87 in push buttons for exact coverage
  • Accepts one padlock with 69/250 in shackle max
  • Compact 2.5 in square by .3 in profile saves panel space

Push Button Lockout Base for Single Padlock

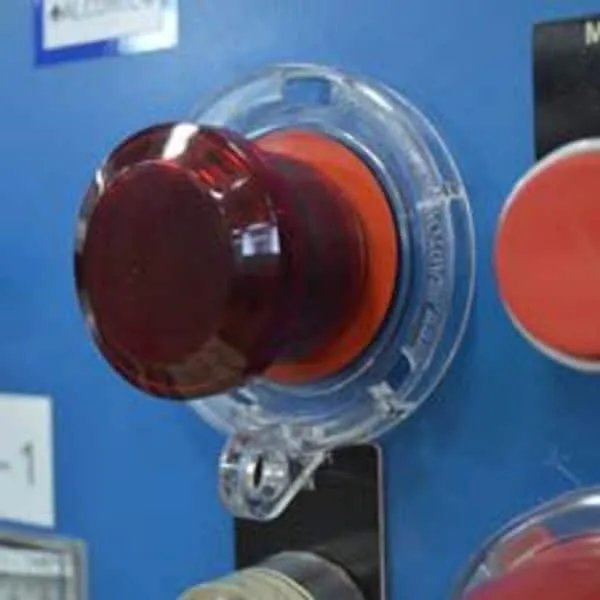

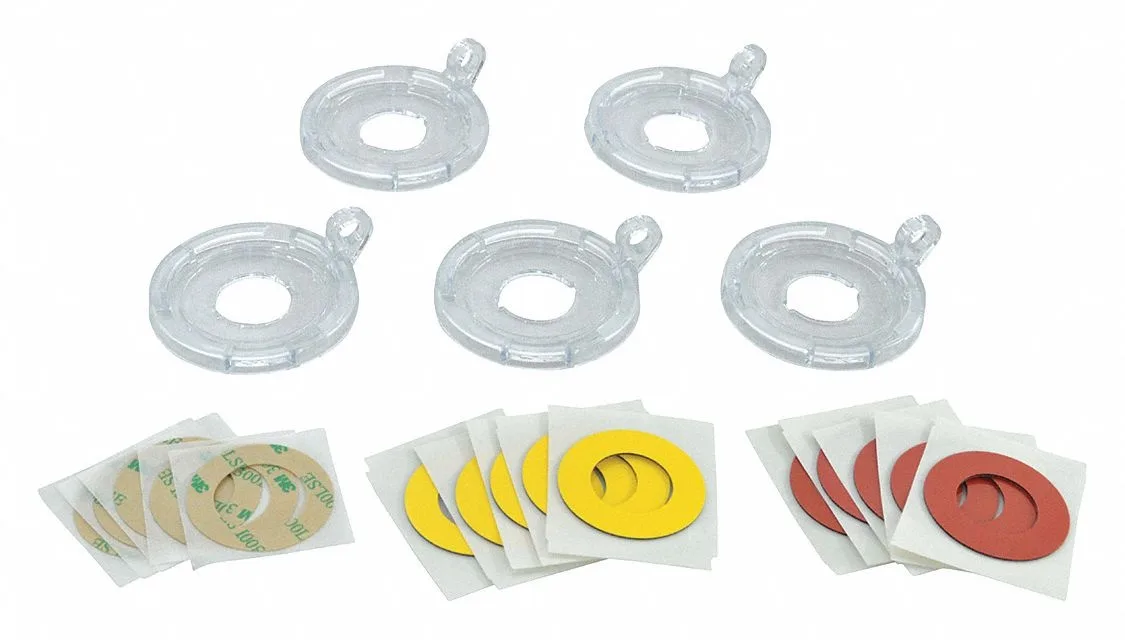

The Brady 130823 is a clear polycarbonate safety cover designed to lock out push-button switches. It accepts one padlock with a maximum shackle diameter of 69/250 in and fits buttons measuring exactly .87 in. The unit mounts permanently via an adhesive strip.

Low-Profile Design Adds Minimal Bulk

At .3 in tall and 2.5 in square, the base sits close to the panel without protruding into walkways. The transparent polycarbonate lets operators confirm button status at a glance while the lockout remains engaged. No power draw or moving parts are involved.

Adhesive Mounting Suits Permanent Installations

The peel-and-stick backing bonds directly to clean, flat surfaces so no drilling or tools are required. Because the header is absent, the cover relies entirely on the adhesive for alignment. It is not suited for curved panels, textured finishes or temporary lockout scenarios.

Highlights

  • Clear polycarbonate shows button status at a glance
  • Adhesive strip mounts permanently without drilling tools
  • Fits 0.87 in push buttons for exact coverage
  • Accepts one padlock with 69/250 in shackle max
  • Compact 2.5 in square by .3 in profile saves panel space

Specifications

BrandBrady

Questions about this item

How do I install the adhesive-backed base on a push button, and what step is often missed?

Clean the mounting surface thoroughly, peel the adhesive strip liner, align the 2.5 in square base over the 0.87 in button, press firmly for full contact, and allow the adhesive to cure before applying any lockout force.

What part of this lockout base will need replacement after repeated use?

The polycarbonate body resists impact, but the adhesive strip is single-use; if the base is removed for any reason, a new adhesive-backed base must be installed to maintain permanent attachment.

What physical limit determines the largest button or shackle this device can secure?

It fits push buttons up to 0.87 in diameter and accepts one padlock with a shackle no thicker than 69/250 in; exceeding either dimension prevents proper lockout engagement.
