Green circuit board with six black relay cubes, screw terminals, USB-C port and DIN-rail plastic case

BoYata

BoYata ESP32-S3 6-Channel WiFi Relay Module 2 in 1 accessory

SKU CH-S1WM-2CVX3

Six-channel Wi-Fi and Bluetooth relay board switches up to 10 A at 250 VAC with RS485 and Pico HAT expansion

  • Dual-core 32-bit processor at 240 MHz enables fast AIoT edge computing
  • 4 GHz Wi-Fi and Bluetooth LE provide dual-mode wireless control
  • Six relays rated 10 A at 250 VAC switch mains appliances directly
  • 7–36 V wide-range input suits industrial power environments
  • Isolated RS485 plus 40-pin Pico HAT header expand industrial connectivity

Industrial 6-Channel ESP32-S3 Relay

The BoYata module is an industrial-grade IoT controller built around an ESP32-S3 dual-core processor running at 240 MHz. It provides six relay channels rated at 10A for 250VAC or 30VDC loads. Integrated 2.4GHz Wi-Fi and Bluetooth LE enable wireless remote operation, while an isolated RS485 interface supports wired industrial networks.

Upgrade from basic single-channel boards

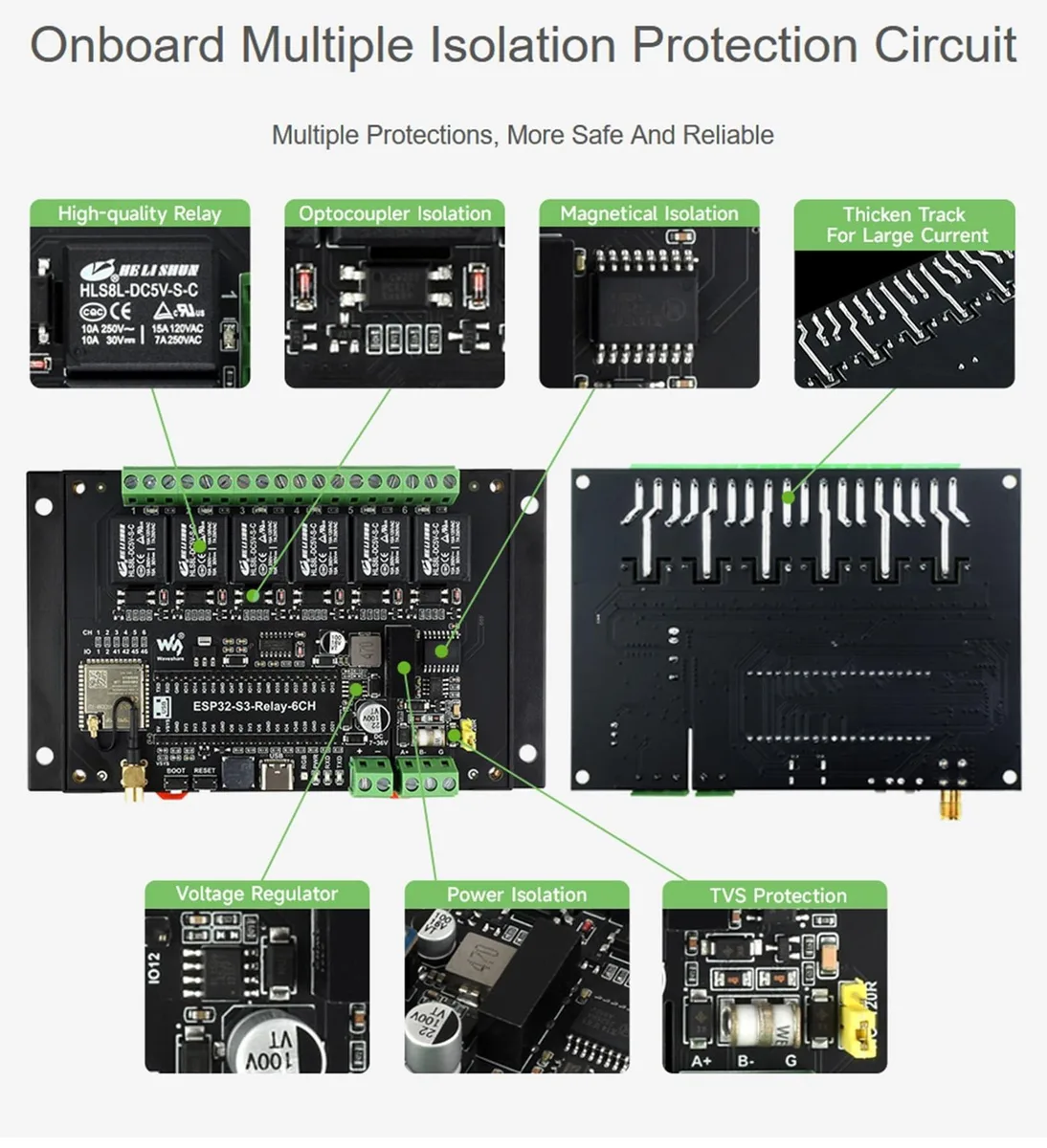

This unit replaces simple relay shields that lack isolation or wide-voltage power input. The jump is worth it when you need to switch multiple 220VAC appliances from one enclosure, require Modbus connectivity over RS485, or must protect the controller from high-voltage transients on the load side.

Fits DIN-rail cabinets and Pico HAT ecosystems

A rail-mount case secures the board inside electrical panels powered from 7 to 36V via screw terminals. The 40-pin header accepts Raspberry Pi Pico HATs for adding RTC, CAN, RS232, LoRa or extra sensors. A USB Type-C port handles firmware flashing and debugging without opening the cabinet. Builders needing more than six channels or a different wireless band should look elsewhere.

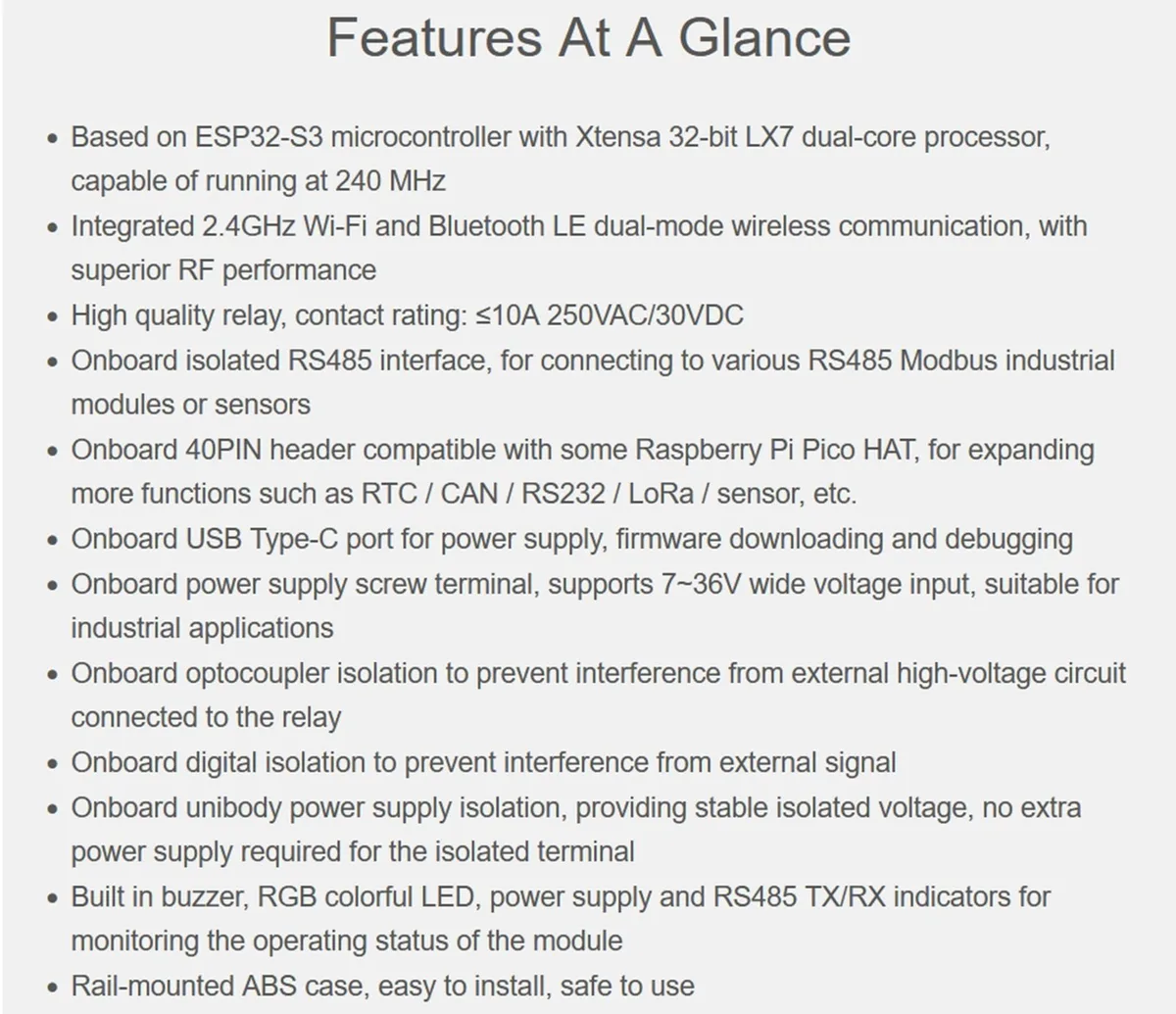

Highlights

  • Dual-core 32-bit processor at 240 MHz enables fast AIoT edge computing
  • 4 GHz Wi-Fi and Bluetooth LE provide dual-mode wireless control
  • Six relays rated 10 A at 250 VAC switch mains appliances directly
  • 7–36 V wide-range input suits industrial power environments
  • Isolated RS485 plus 40-pin Pico HAT header expand industrial connectivity

Specifications

No published specifications for this item yet.
