Two 2.8 inch ESP32 touchscreen display boards with TFT LCD screens and pin headers

BoYata

BoYata ESP32 2.8" Touchscreen Display Kit 2 in 1 accessory

SKU CH-B7TQ-M8QN8

Two 2.8 inch ESP32 touchscreen kits with 240 by 320 TFT LCD, dual-core MCU, Wi-Fi and Bluetooth for Arduino LVGL development

  • 8 inch 240x320 TFT touchscreen for clear visuals
  • ESP32 dual-core up to 240 MHz handles demanding tasks
  • Built-in Wi-Fi 802.11 b/g/n/e/i connects IoT projects
  • TF card slot up to 4G stores images and data
  • Multiple low-power sleep modes extend battery life

ESP32 2.8" Touchscreen Development Kit

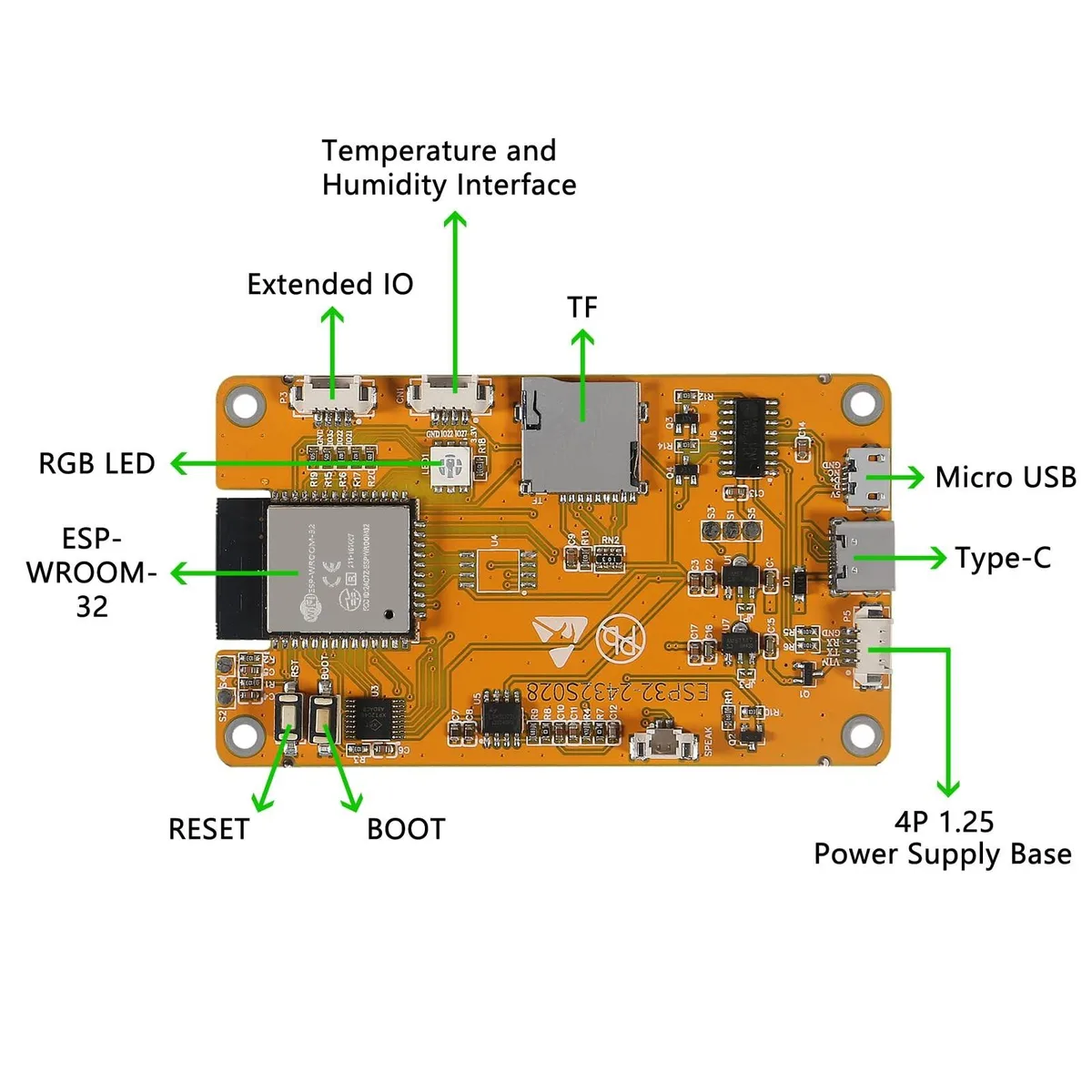

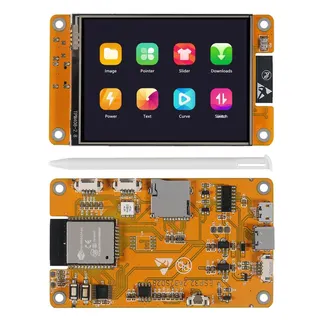

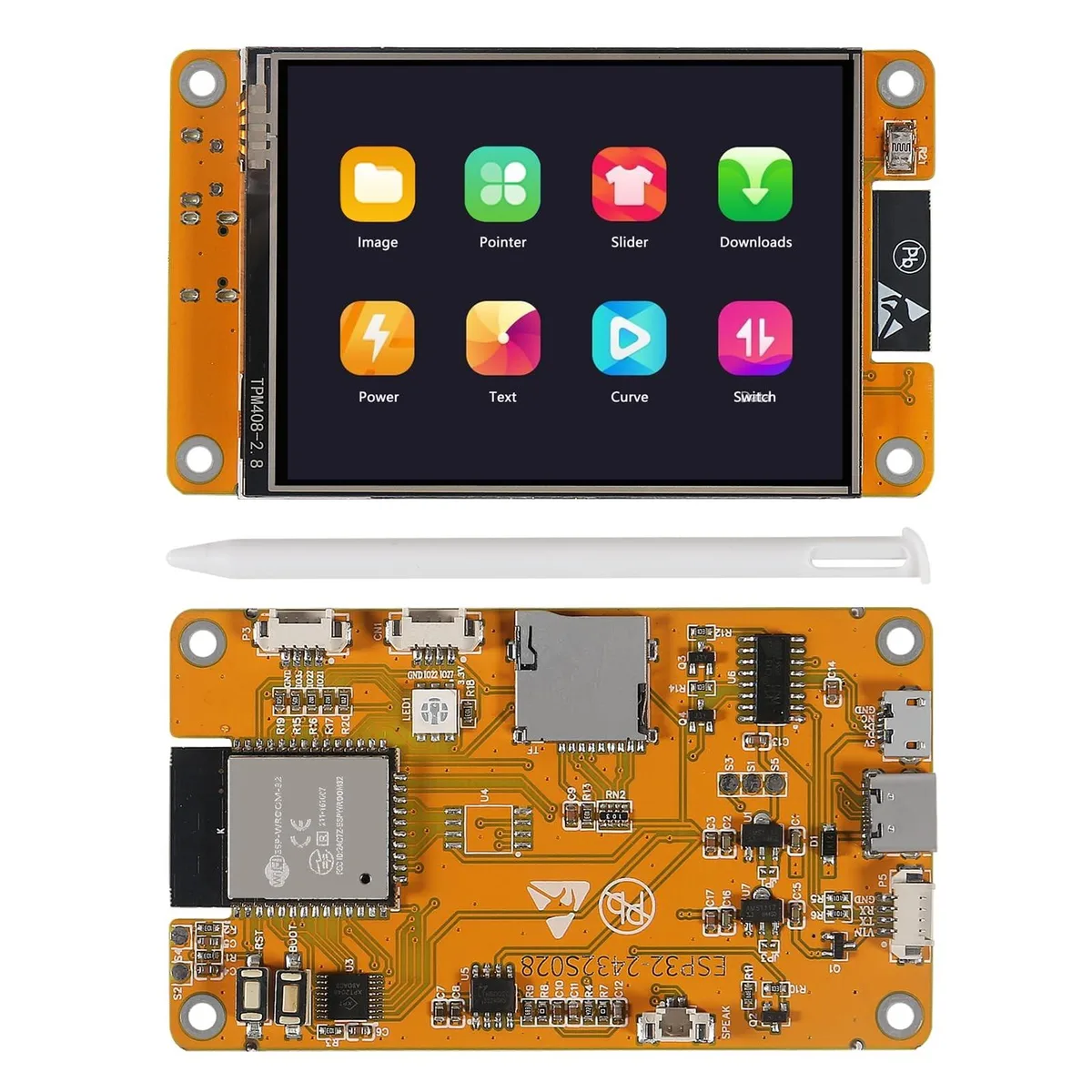

The BoYata ESP32 2.8" Touchscreen Display Kit provides two complete ESP32 development boards, each with a 2.8 inch 240x320 TFT LCD and resistive touch panel. Onboard ESP-WROOM-32 modules deliver dual-core 32-bit processing up to 240 MHz and 600 DMIPS with 520 KB SRAM. Wi-Fi 802.11 b/g/n/e/i and Bluetooth connectivity support STA, AP and STA+AP modes plus smart-config provisioning. Interfaces include UART, SPI, I2C, PWM, ADC and DAC, plus a TF card slot for up to 4 GB storage.

Makers building Wi-Fi IoT prototypes

Developers who need a ready-to-use display, touch input and wireless stack in a single module will benefit from the integrated PCB antenna, FreeRTOS and LwIP support, and one-click download mode. The kit is less suitable for applications requiring capacitive touch, higher resolution graphics, or camera-based vision tasks beyond the supported OV2640 and OV7670 modules. Builders needing more GPIOs or larger screens should consider other platforms.

Dual-core ESP32 at 240 MHz

The defining specification is the combination of a 240 MHz dual-core ESP32 MCU and a 2.8 inch 240x320 TFT LCD with resistive touch. This determines whether the board fits your GUI complexity, touch interaction style and wireless processing budget. Power draw ranges from 6 mA in deep-sleep to 310 mA with flash and maximum brightness at 5 V.

Highlights

  • 8 inch 240x320 TFT touchscreen for clear visuals
  • ESP32 dual-core up to 240 MHz handles demanding tasks
  • Built-in Wi-Fi 802.11 b/g/n/e/i connects IoT projects
  • TF card slot up to 4G stores images and data
  • Multiple low-power sleep modes extend battery life

Specifications

No published specifications for this item yet.

Questions about this item

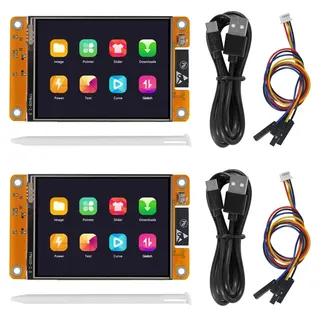

What boards, screens and accessories are included in the package?

The package includes two ESP32 development board display screen kits. Each kit provides a 2.8 inch 240x320 TFT LCD with resistive touch panel, the ESP-WROOM-32 module with 32 Mbit SPI flash and 520 KB internal RAM, plus onboard PCB antenna and TF card slot.

Which of the two identical kits should I choose for a project that needs Wi‑Fi, Bluetooth and camera support?

Both kits are identical. Each board delivers 802.11 b/g/n/e/i Wi‑Fi, Bluetooth 4, TF card support up to 4 GB, and camera interfaces for OV2640 or OV7670 modules, so either kit satisfies those requirements.

What does the 600 DMIPS figure mean when the board is running a real application with the display active?

The dual‑core 32‑bit MCU reaches 600 DMIPS at up to 240 MHz. With the screen at maximum brightness and flash enabled the board draws 310 mA at 5 V; in deep‑sleep it can drop to 6 mA at 5 V.
