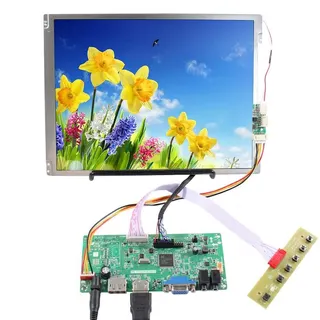

10.4 inch TFT LCD screen with controller board and keyboard

BoYata

BoYata 10.4" 800x600 4:3 TFT LCD Screen & DP VGA Controller Board 2 in 1 accessory

SKU CH-BZ2T-CF8ND

A 10.4 inch 800x600 4:3 TFT LCD screen with DP and VGA controller board, 500 nit brightness and 12V DC power input

  • 4 inch 800x600 4:3 TFT LCD screen delivers sharp visuals for retro gaming
  • 500 cd/m² brightness and 500:1 contrast ratio ensure clear images in bright environments
  • DP and VGA video inputs with 8 ohm 2W speaker output provide flexible connectivity
  • 12V DC power input over 2A via 5.5x2.1mm port supports stable operation

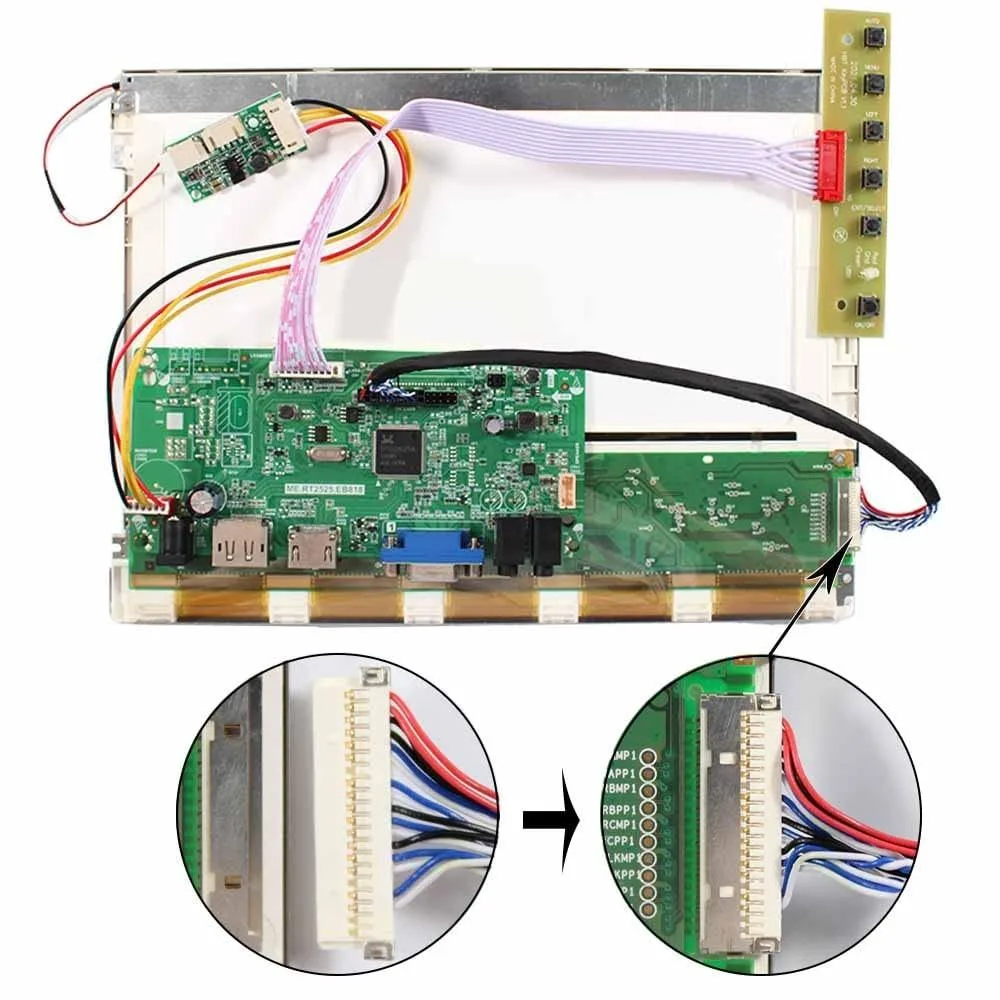

  • Plug and play kit includes controller board RT2525.EB818, screen, converter board, LVDS cable and keyboard

Compact 10.4" 4:3 Display Kit

This kit combines a 10.4 inch TFT LCD panel with a DP and VGA controller board for embedded or secondary-screen projects. The screen delivers an 800 by 600 resolution in a 4:3 aspect ratio with a typical brightness of 500 cd/m². It suits hobbyists, developers or technicians building custom monitors, kiosk interfaces or portable test displays.

Input and Power Constraints

Video reaches the controller through DP or VGA ports while audio exits via an 8 ohm 2 watt speaker header. The board requires a 12 V DC supply capable of more than 2 A through a 5.5 by 2.1 mm barrel jack which must be sourced separately. Operation is specified for an insulated environment and the panel itself runs on a 3.3 V typical input.

Capacity and Headroom

The active area measures 211.2 by 158.4 mm giving a modest canvas for legacy 4:3 content or simple graphical interfaces. Viewing angles of 80 degrees left, right and down and 60 degrees up keep the image readable from most off-centre positions. A 500:1 typical contrast ratio and 6-bit LVDS interface limit colour depth and black-level performance for demanding imaging work.

Highlights

  • 4 inch 800x600 4:3 TFT LCD screen delivers sharp visuals for retro gaming
  • 500 cd/m² brightness and 500:1 contrast ratio ensure clear images in bright environments
  • DP and VGA video inputs with 8 ohm 2W speaker output provide flexible connectivity
  • 12V DC power input over 2A via 5.5x2.1mm port supports stable operation
  • Plug and play kit includes controller board RT2525.EB818, screen, converter board, LVDS cable and keyboard

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick the 10.4 inch 800x600 4:3 screen or a different size for my build?

This kit includes only the 10.4 inch VS104T-001A panel at 800x600 with a 4:3 aspect ratio; no other screen sizes or resolutions are supplied.

What does the 500 cd/m² brightness mean when the display is running in a case?

The panel delivers a typical 500 cd/m² brightness with WLED backlight, so it stays clearly visible in normal indoor lighting and moderately bright environments.

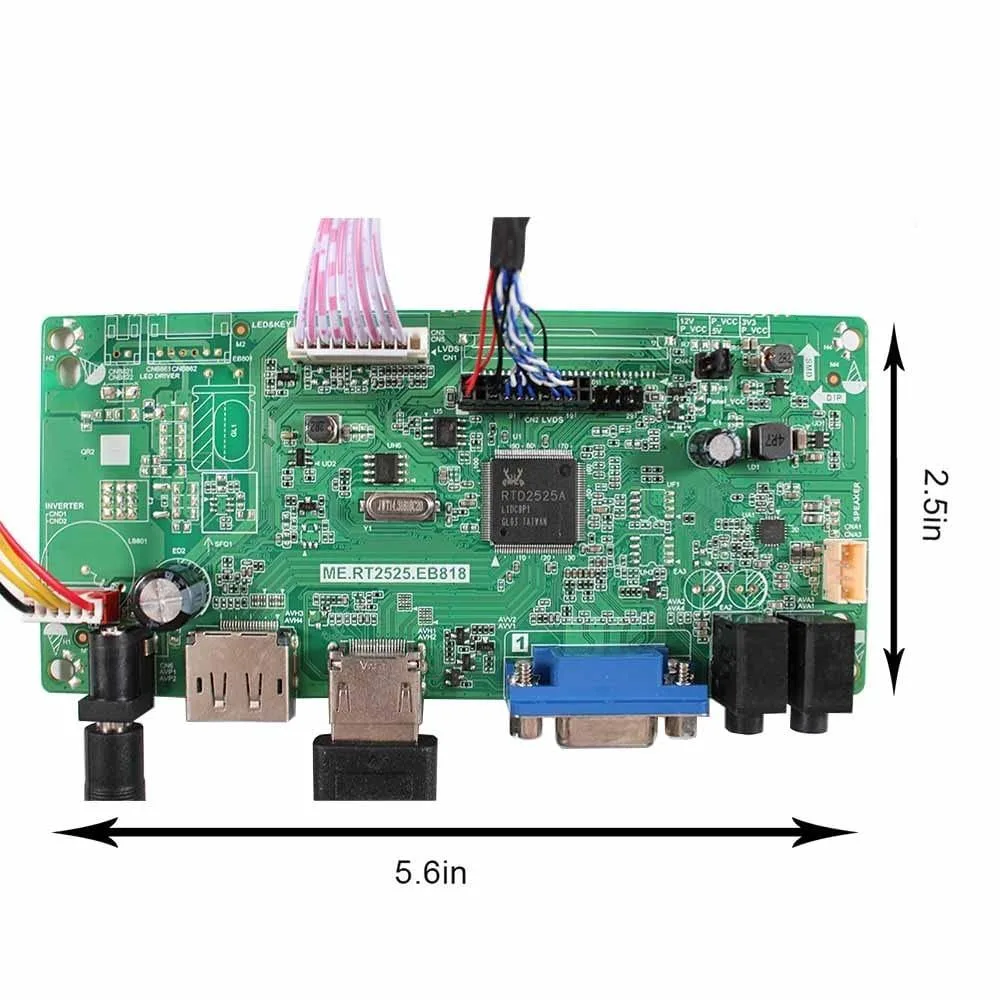

Which video inputs does the RT2525.EB818 controller board accept and what resolution do they support?

The board provides DP and VGA inputs and drives the LVDS panel at its native 800x600 resolution with plug-and-play operation.
