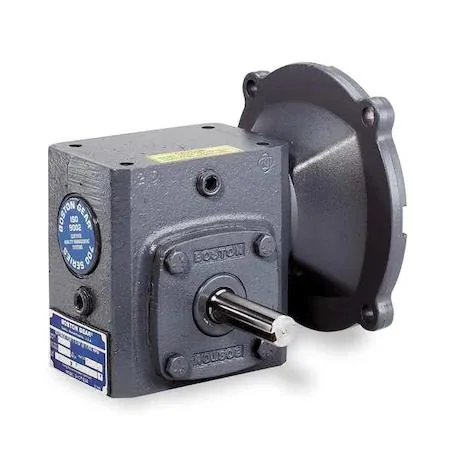

Cast iron speed reducer with C-face input and round output shaft

Boston Gear

Boston Gear F710-5-B5-G Speed Reducer 5:1 56C

SKU CH-GGBA-XM5R5

Worm-gear speed reducer with 56C C-face input, 5:1 ratio, 350 RPM max output, 82 in-lb torque and 150 lb overhung load capacity

  • 5:1 ratio delivers precise speed reduction for 56C motors
  • 5 hp input handles moderate power transmission tasks
  • 82 in-lb output torque drives light industrial loads
  • 350 RPM maximum output suits slower-speed applications
  • Cast iron housing with tapered roller bearings ensures durability

Speed Reducer for 56C Motors

The Boston Gear F710-5-B5-G is a worm-gear speed reducer built for a 56C motor frame. It delivers a fixed 5:1 reduction ratio with a maximum output speed of 350 RPM. The unit accepts a maximum input of .5 horsepower and provides up to 82 in-lb of output torque.

Replaces Larger or Direct-Drive Setups

This reducer suits applications that need lower speed and higher torque from a .5 hp motor without moving to a larger frame size. The jump is worth it when space is limited and the 1-inch worm center distance fits the mounting envelope. It is not suited for loads exceeding 150 lb overhung capacity or for ratios other than 5:1.

Worm-Gear Constraints and Mounting

The cast-iron housing mounts at any angle using tapered roller bearings and hardened, ground steel gearing. Rotation is reversible in both CW and CCW directions. California Proposition 65 warnings apply for cancer and reproductive harm. Buyers needing higher input power or different output shaft configurations must select another model.

Highlights

  • 5:1 ratio delivers precise speed reduction for 56C motors
  • 5 hp input handles moderate power transmission tasks
  • 82 in-lb output torque drives light industrial loads
  • 350 RPM maximum output suits slower-speed applications
  • Cast iron housing with tapered roller bearings ensures durability

Specifications

BrandBOSTON GEAR

Questions about this item

What motor frame fits the 56C C-face input?

The reducer accepts a 56C frame motor with a C-face connection.

How do you install the speed reducer and what step is often missed?

Mount at any angle using the 1.31 in base-to-center dimension and ensure the 1 in worm center distance aligns with the driven shaft.

What maintenance will the worm gear need later?

Check lubrication periodically for the hardened and ground steel worm gear running on tapered roller bearings.
