Compact M.2 to USB 3.1 adapter with copper heat rod, black PCB, Type-A connector

BONAEVER

BONAEVER M.2 NVME SATA USB 3.1 10Gbps 4TB Adapter

SKU CH-7T4A-MF4GJ

Connects M.2 NVME or SATA SSDs up to 4 TB via USB 3.1 Gen2 at 10 Gbps using RTL9210B chip with UASP and TRIM support

  • TypeOthers
  • Read NVMe and SATA drives with one adapter
  • Transfer at 10Gbps over USB 3.1 Gen2
  • Install SSDs up to 4TB capacity
  • RTL9210B controller with UASP and TRIM
  • Copper heat-spreader keeps temperatures low

BONAEVER M.2 NVME SATA USB 3.1 Adapter

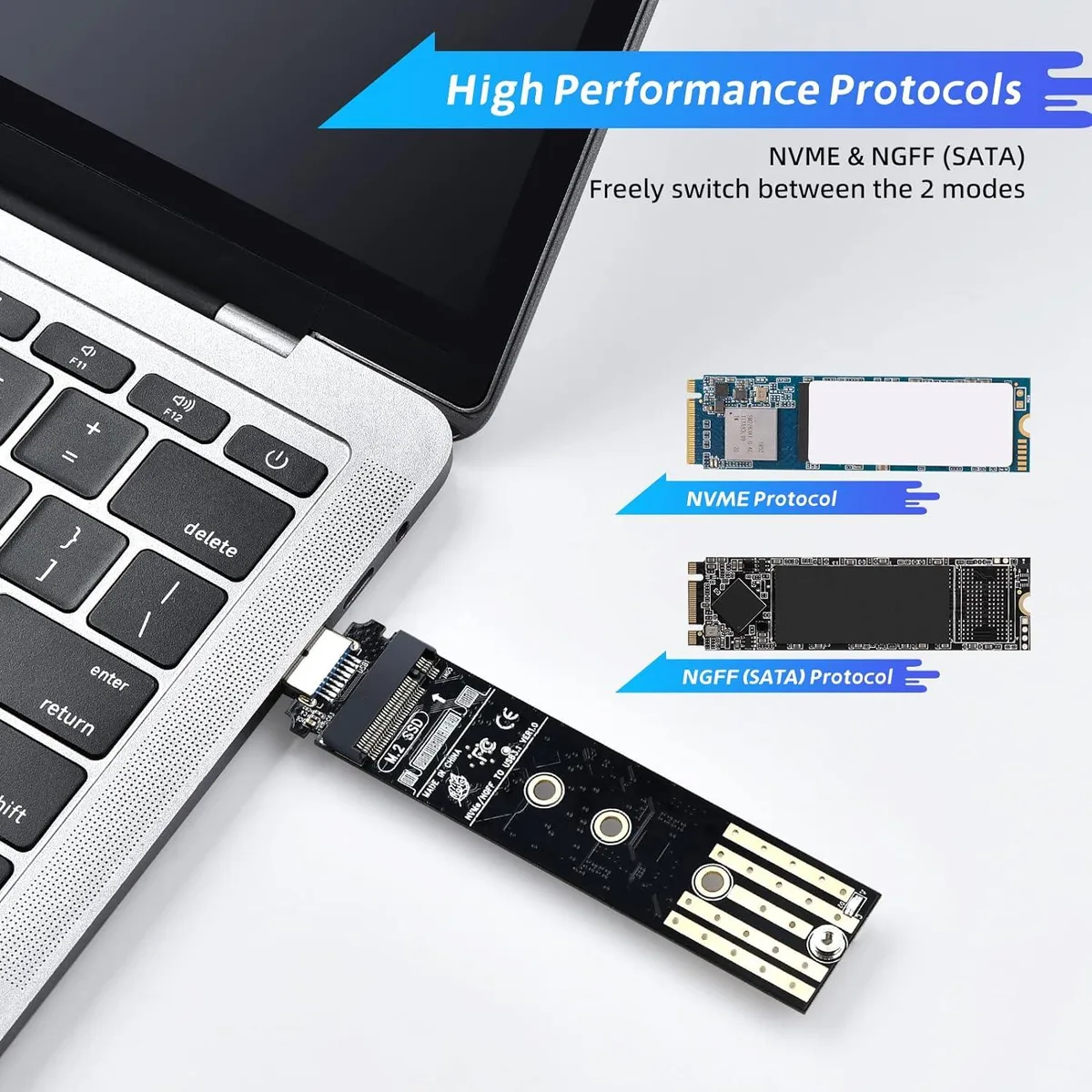

This BONAEVER adapter connects M.2 NVME or NGFF (SATA) solid-state drives to a USB Type-A port. It accepts 2230, 2242, 2260 and 2280 form factors with B-key, M-key or B+M-key layouts. The RTL9210B controller provides UASP and TRIM support for reduced overhead. It suits technicians and users who need quick external access to different M.2 drives.

Upgrade from single-protocol docks

The adapter replaces separate NVME-only or SATA-only readers by handling both protocols in one unit. The jump is worth it when you regularly move data between NVME and NGFF drives and want a single compact device. PCI-E AHCI protocol drives are not supported, so owners of those modules will need a different solution.

Capacity and headroom

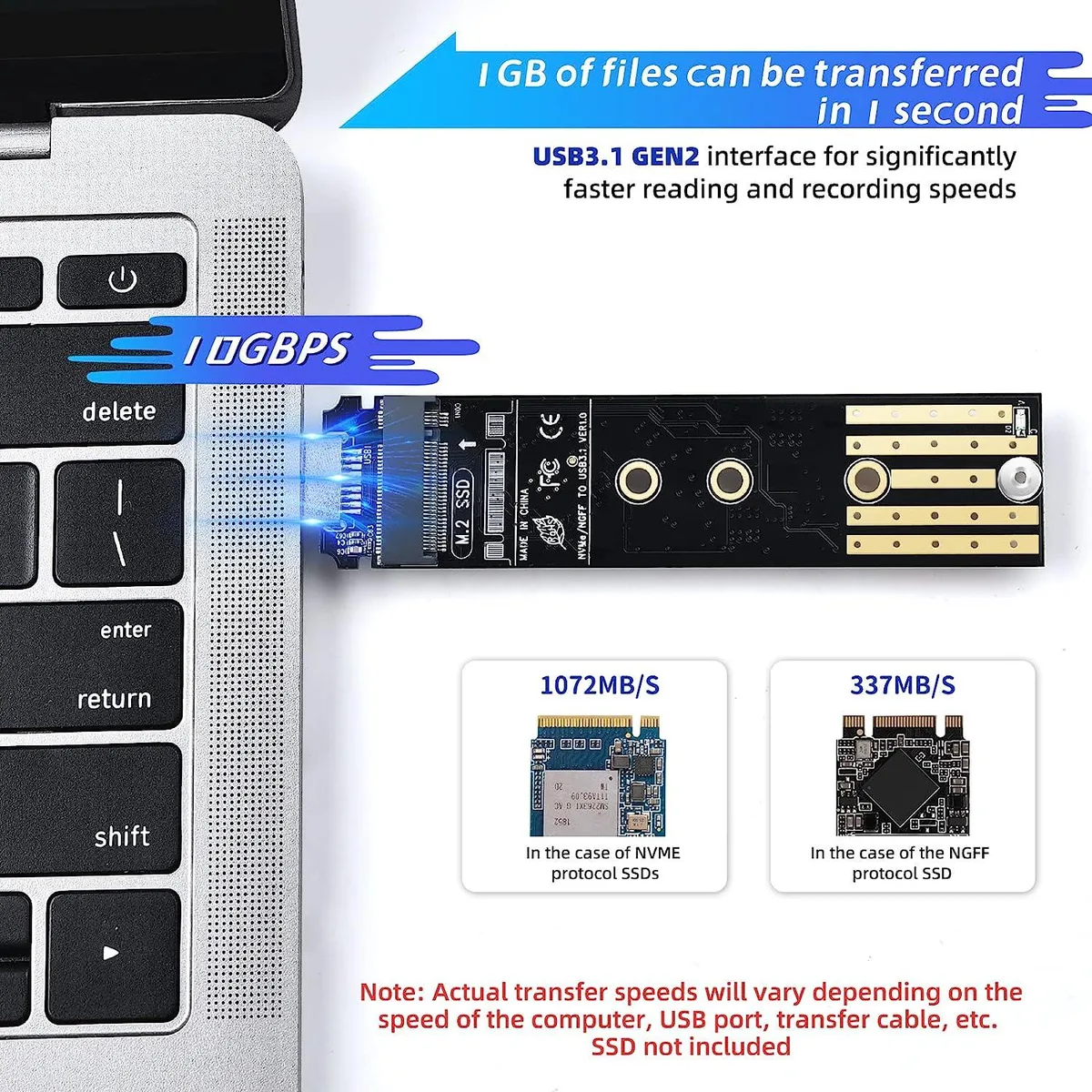

Drives up to 4 TB can be installed, giving ample space for large backups or media libraries. Theoretical throughput reaches 10 Gbps for NVME and 5 Gbps for NGFF, with a referenced read speed of 1000 MB/s. Performance scales with the drive used; slower USB 2.0 ports will limit transfer rates.

Highlights

  • Read NVMe and SATA drives with one adapter
  • Transfer at 10Gbps over USB 3.1 Gen2
  • Install SSDs up to 4TB capacity
  • RTL9210B controller with UASP and TRIM
  • Copper heat-spreader keeps temperatures low

Specifications

TypeOthers

Questions about this item

Which M.2 key types and lengths does the adapter accept?

It fits B-key, M-key and B+M-key drives in 2230, 2242, 2260 and 2280 sizes.

How is the SSD secured during installation?

Slide the drive into the slot at an angle, then press down and fasten the retaining screw so the connector seats fully.

What keeps the controller cool during long transfers?

A copper rod on the PCB and a silicon-based thermal pad draw heat away from the RTL9210B chip.
