Five small grey nylon junction boxes with threaded cable glands and sealing nuts

BONAEVER

BONAEVER IP68 2-Way 2-Pin Junction Box Electrical Cable Connector 5 Pack 24A 400V M20 9-12mm

SKU CH-PMJS-CN3A2

IP68 waterproof two-way M20 junction box for 9–12 mm cables, rated 24 A at 400 V, V-0 flame-retardant PA66, screwdriver installation, pack of five

  • TypeElectrical Boxes
  • IP68 rated for outdoor and wet locations up to 3.5 m depth
  • 24 A 400 V capacity handles mains-voltage circuits safely
  • Nylon PA66 housing with V-0 flame retardant resists heat and fire
  • Tool-free wiring with single screwdriver speeds installation and maintenance
  • Five connectors per pack simplifies multi-point lighting and repair jobs

Outdoor IP68 Junction Box

The BONAEVER IP68 2-way 2-pin M20 junction box connects two cables in a single waterproof enclosure. Rated 24 A and 400 V, it suits garden lamps, street lights, fountains and other outdoor or damp installations. The nylon PA66 housing meets V-0 flame-retardant requirements and resists UV, corrosion and temperature extremes. A pack contains five connectors for multi-point wiring jobs.

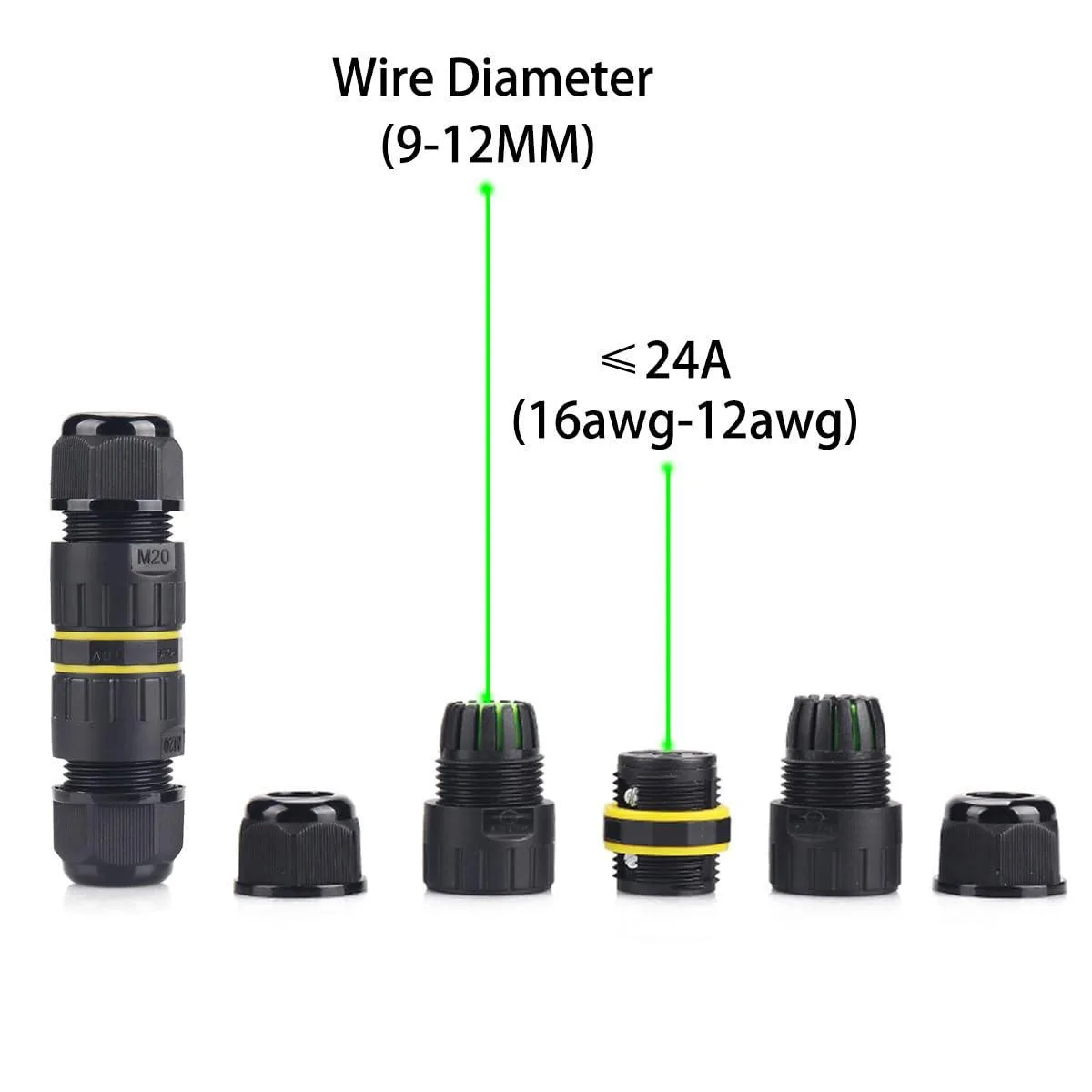

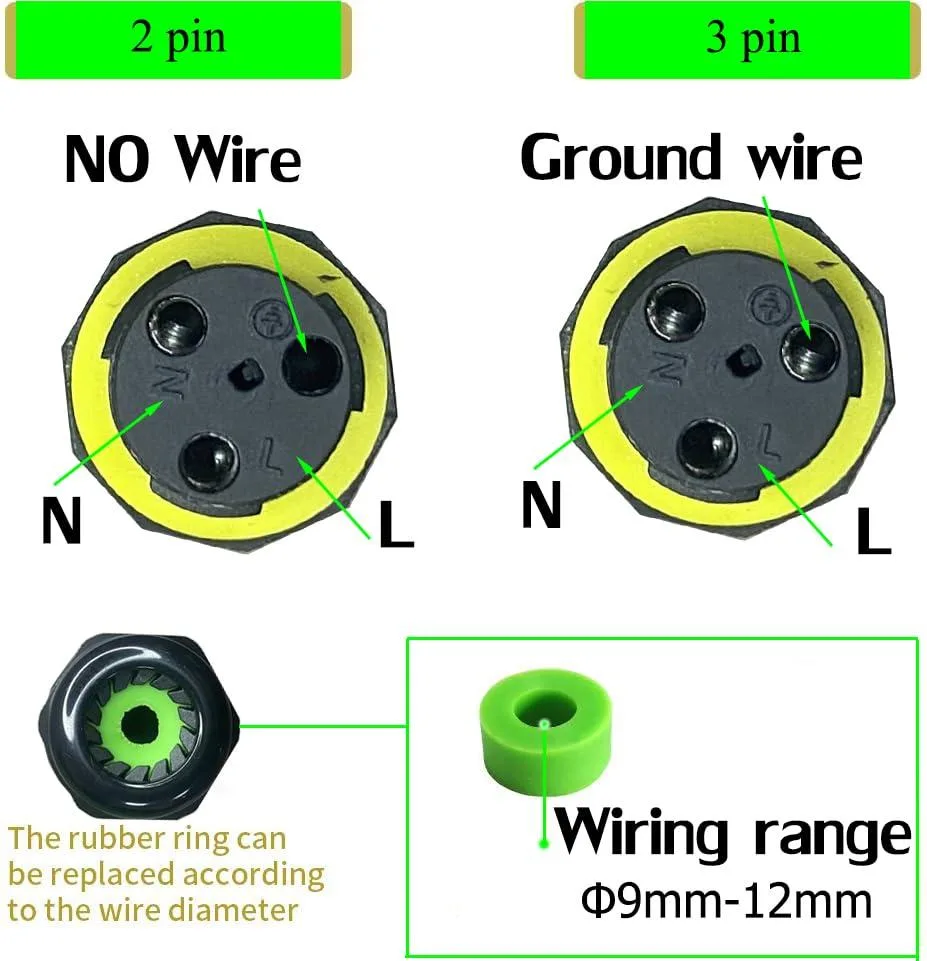

Cable diameter check

Verify that each conductor falls within the 9 mm to 12 mm cable range before ordering. The M20 entry and clamping nut seal only this range; smaller or larger cables will not achieve the IP68 rating. Ensure the circuit does not exceed 24 A or 400 V and that a screwdriver is available to secure the terminal screws and tighten all nuts after wiring.

Sustained load behaviour

Under continuous 24 A operation the PA66 body remains stable within its rated temperature limits and the V-0 rating limits flame spread. The rubber ring and clamping nut maintain the IP68 seal during prolonged exposure to rain, sunlight or temporary immersion up to 3.5 m depth. Periodic inspection of nut tightness preserves the waterproof and mechanical integrity over time.

Highlights

  • IP68 rated for outdoor and wet locations up to 3.5 m depth
  • 24 A 400 V capacity handles mains-voltage circuits safely
  • Nylon PA66 housing with V-0 flame retardant resists heat and fire
  • Tool-free wiring with single screwdriver speeds installation and maintenance
  • Five connectors per pack simplifies multi-point lighting and repair jobs

Specifications

TypeElectrical Boxes

Questions about this item

Does the 5-pack include all gaskets and clamping nuts or must I buy extra sealing parts?

Each of the five connectors ships with its built-in rubber ring and clamping nut already fitted, so no additional sealing components are required.

I see only one wire-range spec of 9-12 mm; how do I know if this M20 size suits my cable?

The M20 housing accepts round cables from 9 mm up to 12 mm diameter; if your conductors fall outside that range you would need a different gland size.

The listing says 24 A and 400 V — will that rating hold up in a permanent outdoor lighting circuit?

Yes, the PA66 V-0 flame-retardant body and IP68 seal are rated for continuous 24 A at 400 V in sunlight, rain or dust, provided the cable stays within the 9-12 mm range and nuts are fully tightened.
