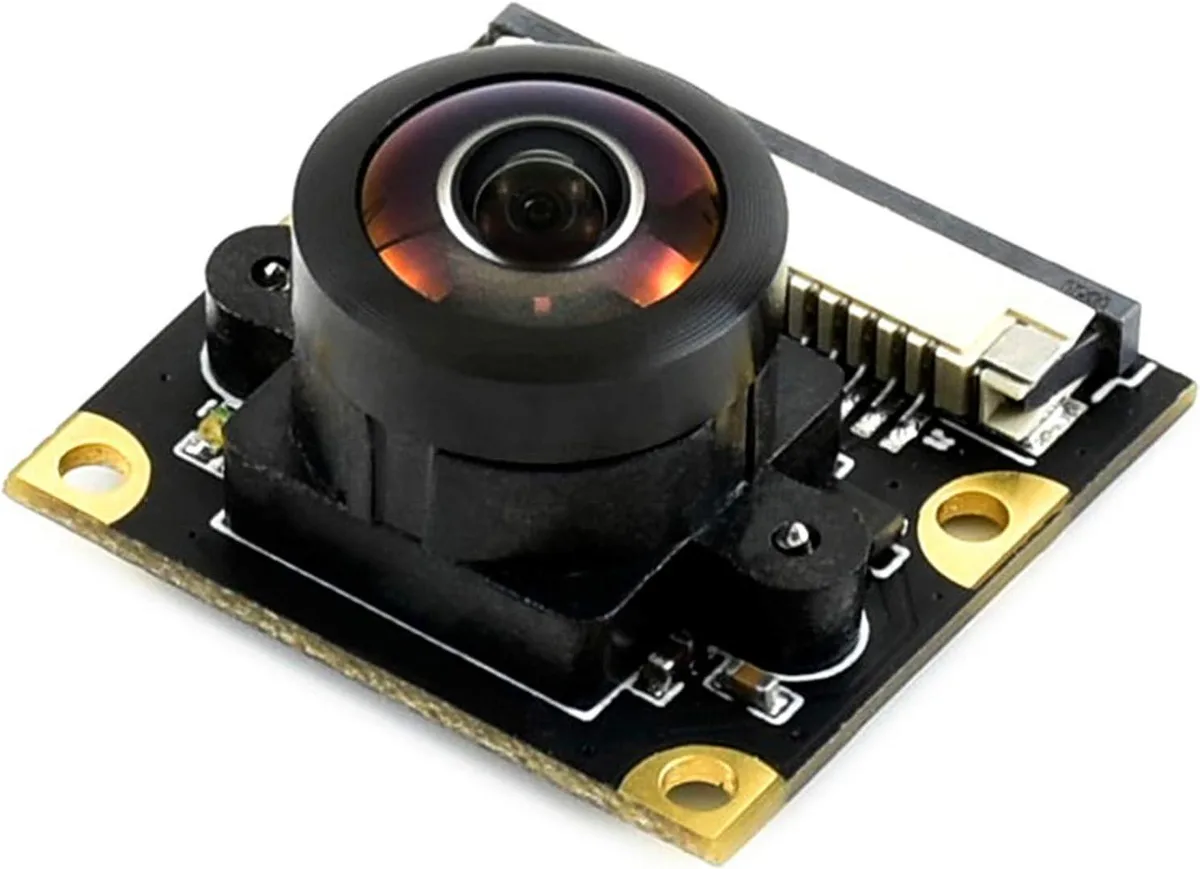

Small square camera board with wide-angle lens and four mounting holes

BONAEVER

BONAEVER IMX219-200 8MP 200° FOV Camera

SKU CH-5GQT-MCYJQ

An 8-megapixel IMX219 camera with a 200-degree field of view for Jetson Nano and Raspberry Pi Compute Module 3/3+ AI projects

  • TypeOthers
  • Wide 200° field of view captures more scene
  • 8 MP IMX219 sensor delivers 3280 × 2464 resolution
  • Compact 25 mm × 24 mm board fits tight spaces
  • Four screw holes and 3.3 V output simplify mounting
  • 15 cm 15-pin FFC cable included for Jetson Nano or Pi CM3/3+

Wide-angle AI camera

The BONAEVER IMX219-200 is an 8-megapixel camera module built around a 1/4-inch IMX219 sensor. It captures stills at 3280 by 2464 resolution through a 0.87 mm focal-length lens with an f/2.0 aperture. The 200-degree diagonal field of view suits robotics and edge-AI projects that need expansive coverage. Distortion is kept below 11 percent for cleaner frame edges.

Jetson Nano and Pi CM3/3+ integration

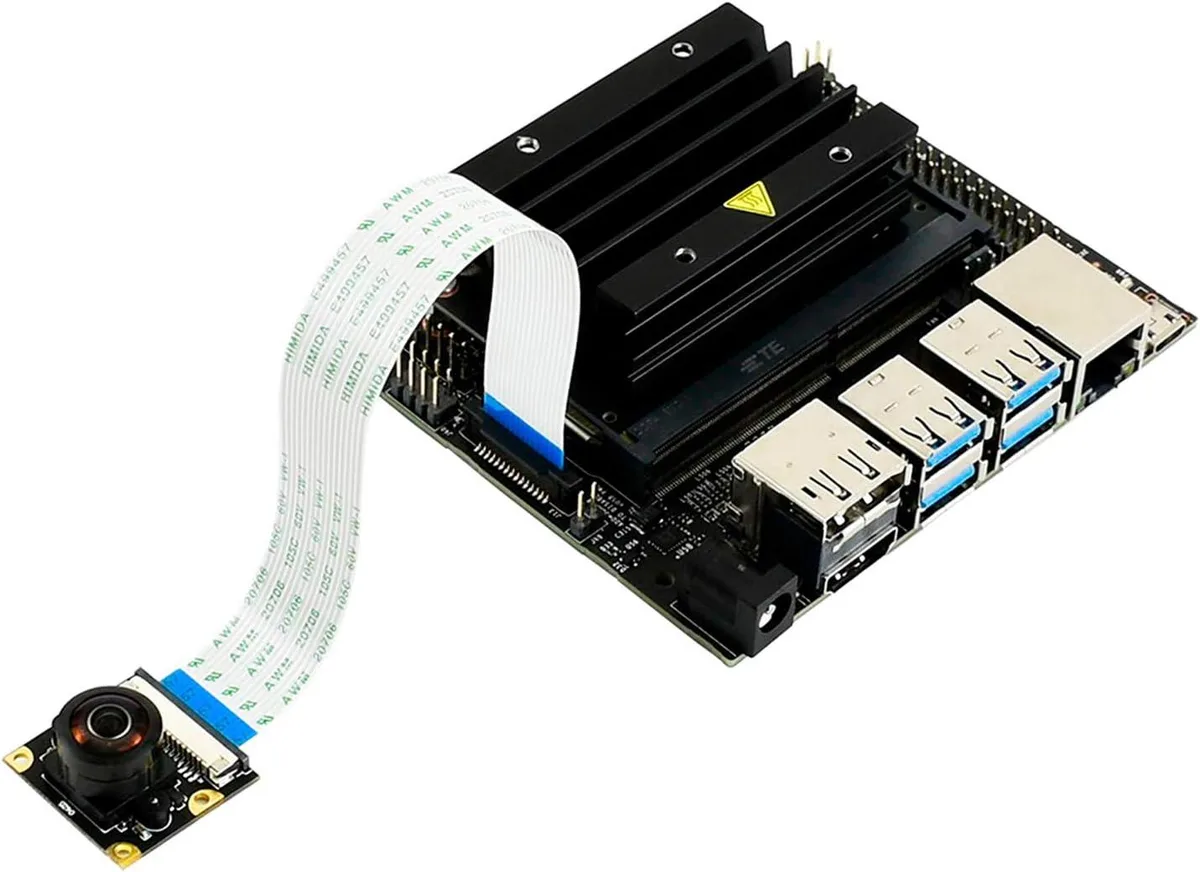

The module mounts via four screw holes and ships with a 15 cm 15-pin FFC on opposite-side contacts. It draws 3.3 V power from the host board, leaving no separate supply to route. The compact 25 by 24 mm footprint fits tight enclosures while the wide lens replaces multiple narrow cameras in surveillance or autonomous navigation rigs. Developers targeting Jetson Nano Developer Kit or Raspberry Pi Compute Module 3 and 3+ can connect directly without adapter boards.

Passive thermal profile

With no active cooling on the board, heat dissipates through the PCB and mounting points into the host device chassis. Power draw stays limited to the 3.3 V rail provided by the compute module, so total system budget is unaffected by the camera itself. Silent operation is inherent, making the unit suitable for noise-sensitive deployments such as indoor monitoring or handheld diagnostic tools.

Highlights

  • Wide 200° field of view captures more scene
  • 8 MP IMX219 sensor delivers 3280 × 2464 resolution
  • Compact 25 mm × 24 mm board fits tight spaces
  • Four screw holes and 3.3 V output simplify mounting
  • 15 cm 15-pin FFC cable included for Jetson Nano or Pi CM3/3+

Specifications

TypeOthers

Questions about this item

What thermal or power limit appears first when the camera runs continuously on a Jetson Nano or Raspberry Pi CM3/3+?

The module draws 3.3 V from the host board, so the host’s 3.3 V rail current limit is the first constraint under sustained capture.

How much heat or noise does the IMX219‑200 produce during all‑day operation?

The camera has no fan or moving parts; it generates only minimal heat from the 1/4‑inch CMOS sensor and runs silently.

Which host board and connector must I already own to use this 200° FOV camera?

You need a Jetson Nano Developer Kit or a Raspberry Pi Compute Module 3/3+ with a 15‑pin CSI connector; the 15 cm FFC cable is included.
