Small green circuit board with a wide-angle camera lens and four mounting holes

BONAEVER

BONAEVER IMX219-160IR 8MP 160° IR Night Vision Camera Module

SKU CH-PSF6-Z02HM

8MP IMX219 camera with 160° FOV and IR night vision for Jetson Nano and Compute Module 3/3+, 25×24mm with 3.3V LED power output

  • TypeOthers
  • 8 MP IMX219 sensor captures 3280 × 2464 detail
  • 160° wide-angle lens covers a broad field of view

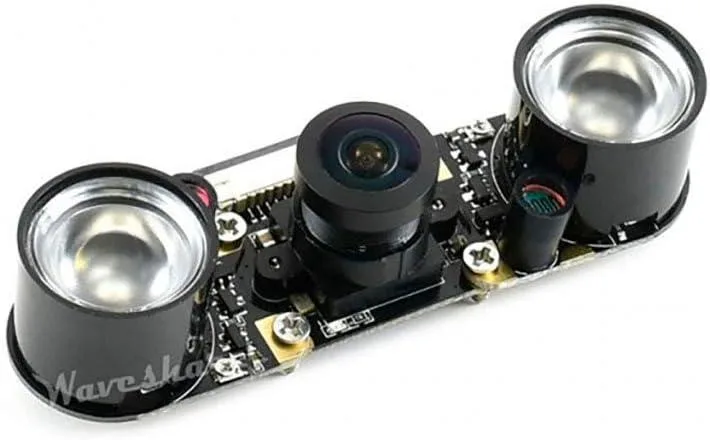

  • Infrared LED support enables night-vision recording
  • 3 V power output drives auxiliary illumination LEDs
  • Four screw holes and 25 × 24 mm size simplify mounting

AI camera module for Jetson Nano and Pi CM 3/3+

This 8-megapixel camera module uses the IMX219 sensor and is built for the NVIDIA Jetson Nano Developer Kit and Raspberry Pi Compute Module 3 or 3+. It adds infrared night vision when paired with external IR LEDs. The board measures 25mm by 24mm and includes four screw holes for secure mounting. It ships new without the developer kit or compute module.

160° diagonal field of view at 3280 × 2464

The lens provides a 160 degree diagonal angle of view with a 3.15mm focal length and an F2.35 aperture. The 1/4-inch CMOS sensor captures stills and video at 3280 by 2464 pixels while keeping distortion below 14.3 percent. This wide perspective suits face recognition, road mark detection and licence plate recognition workloads.

3.3V output for IR LEDs with compact low-heat design

The module supplies a 3.3V power output to drive infrared or fill-flash LEDs for night vision. Its small footprint and passive construction generate minimal heat and no audible noise during normal operation. Power draw stays low, making it suitable for embedded AI projects that run continuously on limited power budgets.

Highlights

  • 8 MP IMX219 sensor captures 3280 × 2464 detail
  • 160° wide-angle lens covers a broad field of view
  • Infrared LED support enables night-vision recording
  • 3 V power output drives auxiliary illumination LEDs
  • Four screw holes and 25 × 24 mm size simplify mounting

Specifications

TypeOthers

Questions about this item

What does the 3280 × 2464 resolution mean when the IMX219 sensor is running on a Jetson Nano?

The sensor delivers 8 megapixel still frames at 3280 × 2464 pixels, giving enough detail for face recognition or licence-plate reading in AI projects.

How does the CSI-2 interface limit the 160° field of view in practice?

The CSI-2 link carries the full 160° diagonal view at 3280 × 2464 without cropping, so the wide angle is preserved in every captured frame.

What mounting holes and board size are needed to fit the 25 mm × 24 mm module?

Four screw holes on a 25 mm by 24 mm PCB allow direct attachment to Jetson Nano or Compute Module carrier boards.
