Black DB9 RS232 breakout board in green ABS case, screw terminals, male D-SUB connector, 58x35x21mm

BONAEVER

BONAEVER DB9 RS232 Serial Adapter Breakout Board with Case

SKU CH-07V5-50BWA

A DB9 male-to-screw-terminal adapter in a protective case, accepting 12-24AWG wire for solder-free RS232 connections

  • Case TypeProtection Case
  • Solder-free wiring with screw terminals for 12-24AWG cables
  • DB9 male to terminal block for RS232 serial connections
  • Compact 58 x 35 x 21 mm case fits tight spaces
  • Insulating ABS+PC shell with anti-slip grip for safe handling
  • Gold-plated copper contacts ensure reliable signal conductivity

DB9 RS232 Breakout Board with Case

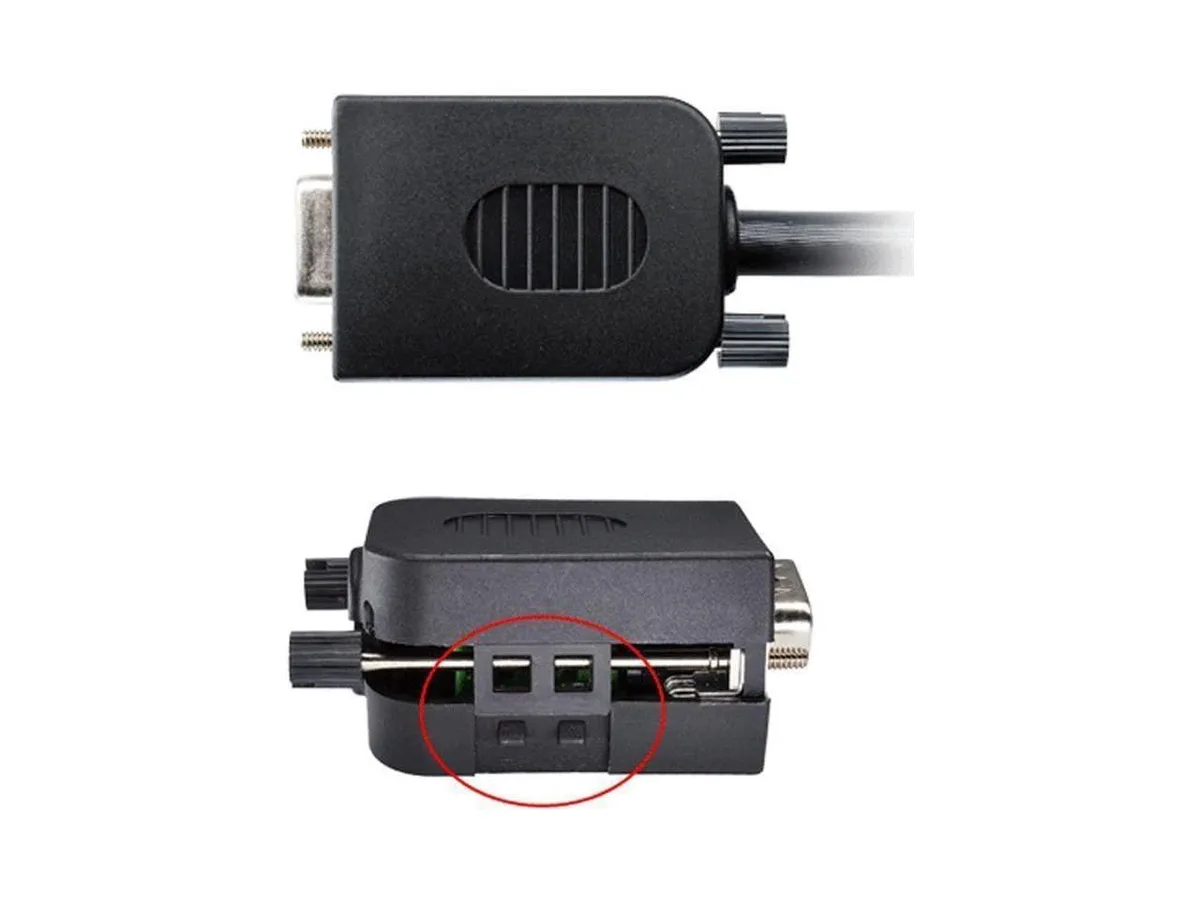

This DB9 breakout board converts a serial D-SUB port to screw terminals for solder-free wiring. The module ships inside a protective case and accepts wire gauges from 12 to 24 AWG. It is aimed at engineers and hobbyists who need a quick, reusable RS232 connection for test benches or field repairs.

Suits bench prototyping and permanent panel mounting

The screw terminals and compact case make it practical for both temporary breadboard work and fixed installations in enclosures. Buyers who need a cable-assembly solution with pre-crimped connectors or a right-angle DB9 orientation should look at a different adapter style.

Handles standard RS232 signal wiring

The terminal block accommodates solid or stranded wire in that gauge range and the gold-plated contacts maintain reliable conductivity. The 10 mm cable entry and 3 mm mounting holes support panel fixation, while the ABS plus PC case provides insulation and strain relief for permanent deployments.

Highlights

  • Solder-free wiring with screw terminals for 12-24AWG cables
  • DB9 male to terminal block for RS232 serial connections
  • Compact 58 x 35 x 21 mm case fits tight spaces
  • Insulating ABS+PC shell with anti-slip grip for safe handling
  • Gold-plated copper contacts ensure reliable signal conductivity

Specifications

Case TypeProtection Case

Questions about this item

What DB9 serial device or cable must I already have to connect to this breakout board?

You need a standard DB9 male or female RS232 cable or device that matches the board's DB9 connector.

Will the screw terminals accept the 20 AWG wires from my legacy RS232 equipment?

Yes, the terminals support a wire range of 12-24 AWG, which includes 20 AWG.

How can I confirm the adapter is passing signals correctly after wiring it?

Use a serial terminal program to verify data transmits and receives on the expected pins.
