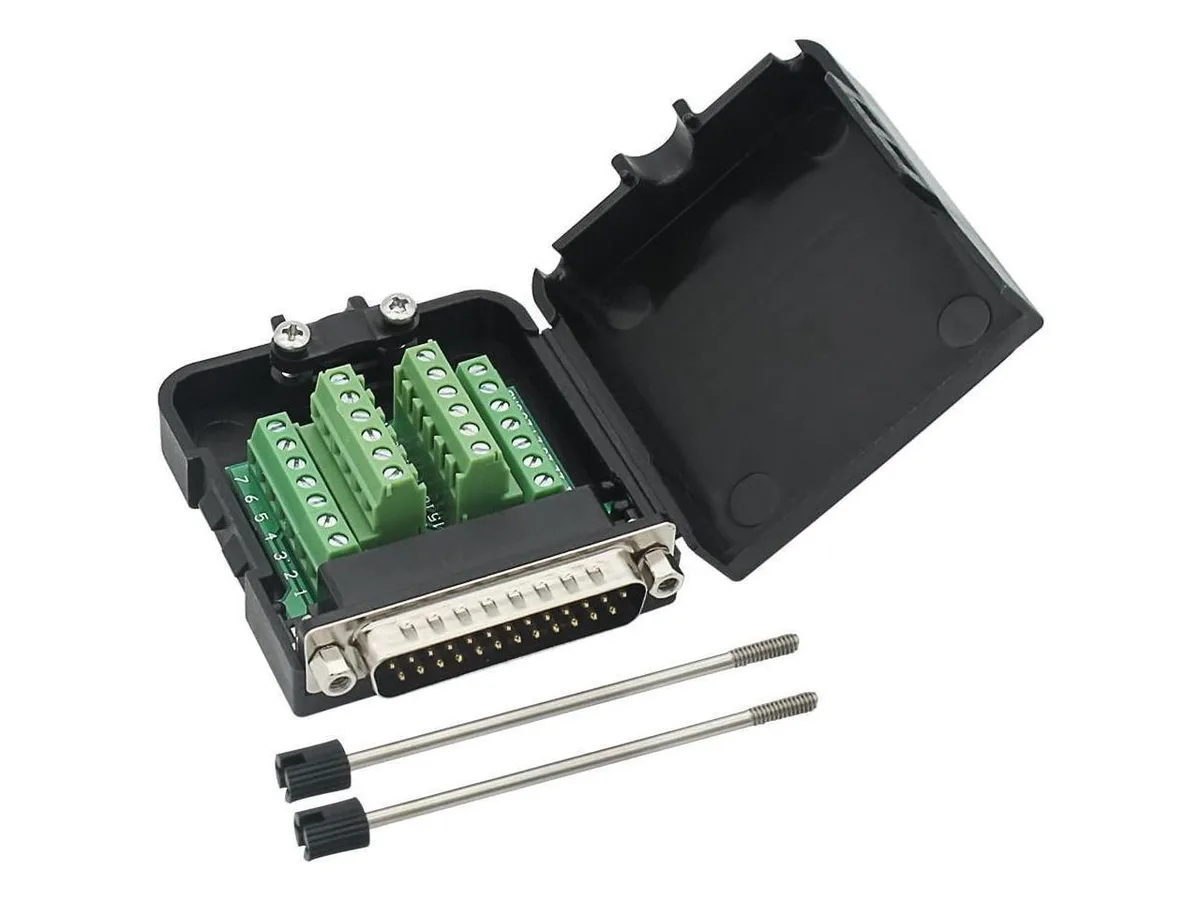

Green DB25 breakout board in black ABS case with screw terminals

BONAEVER

BONAEVER DB25 Breakout Board 25-pin Adapter with Case

SKU CH-DNPX-PMGAB

A solder-free DB25 breakout board with labelled terminals, copper contacts and a protective ABS case

  • Case TypeProtection Case
  • Solder-free terminals simplify wiring for serial and industrial control links

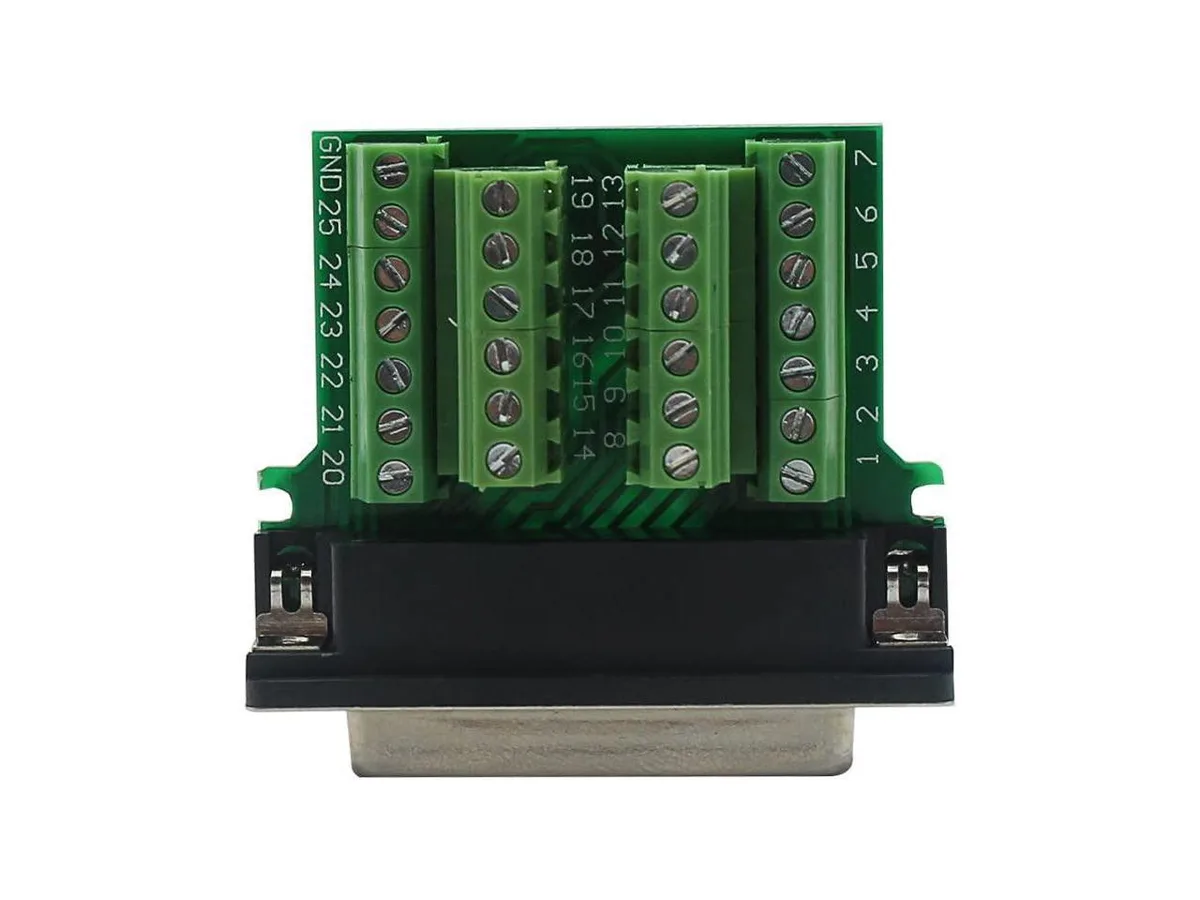

  • Clear pin labelling on the PCB speeds up identification and reduces errors
  • Insulating ABS+PC case with anti-slip shell protects contacts and prevents shorts
  • All-copper nickel-plated base delivers reliable conductivity and resists oxidation
  • Compact 59 x 55.5 x 23 mm footprint fits tight enclosures and panels

Solder-Free DB25 Breakout Board

The BONAEVER DB25 breakout board provides a solder-free male adapter that converts a 25-pin port to clearly labelled screw terminals. It is aimed at engineers and technicians who need quick, reliable access to serial or industrial control signals without picking up a soldering iron.

Fits Into Test And Control Setups

The board measures 59 x 55.5 x 23 mm and ships in an insulating ABS and PC case with a 10 mm cable entry hole. A pure copper base and nickel-plated brass contacts resist oxidation, while the 3 mm terminal holes on a 5 mm pitch accept 26 to 16 AWG wire secured by long bolts and nuts.

Replaces Hand-Wired DB25 Looms

This adapter replaces time-consuming custom cables or fragile soldered headers when prototyping or maintaining legacy equipment. The jump is worth it whenever a project demands repeated re-wiring, clear signal identification, or a rugged 10 A rated connection that survives frequent plug cycles.

Highlights

  • Solder-free terminals simplify wiring for serial and industrial control links
  • Clear pin labelling on the PCB speeds up identification and reduces errors
  • Insulating ABS+PC case with anti-slip shell protects contacts and prevents shorts
  • All-copper nickel-plated base delivers reliable conductivity and resists oxidation
  • Compact 59 x 55.5 x 23 mm footprint fits tight enclosures and panels

Specifications

Case TypeProtection Case

Questions about this item

Does the 10 A current rating limit how long I can run all 25 pins under full load?

The board is rated for 10 A per connection, so sustained use on every pin stays within that limit as long as each circuit does not exceed 10 A.

Will the ABS and PC case get hot or noisy when the adapter carries 10 A continuously?

No active cooling is present; the copper base and plastic case simply conduct and dissipate heat silently during continuous operation.

What wire gauge must I already have to use the screw terminals without soldering?

The terminals accept 26-16 AWG solid or stranded wire, so you need cable in that range and a small screwdriver for the 0.2 Nm torque spec.
