BONAEVER DB15 Male VGA Breakout Board with Case

SKU CH-3RRG-54VBD

A DB15 male VGA breakout board with a protective ABS+PC case, all-copper base, and clearly labelled terminals for 20–26 AWG wires

  • Case TypeProtection Case
  • Prevents short circuits with included ABS+PC protection case
  • All-copper base improves contact and resists oxidation
  • Clear port labels simplify wiring and troubleshooting
  • FR-4 fiberglass PCB ensures reliable signal integrity
  • Supports 20-26AWG wires at 0.5A rated current

DB15 Male Breakout Board with Case

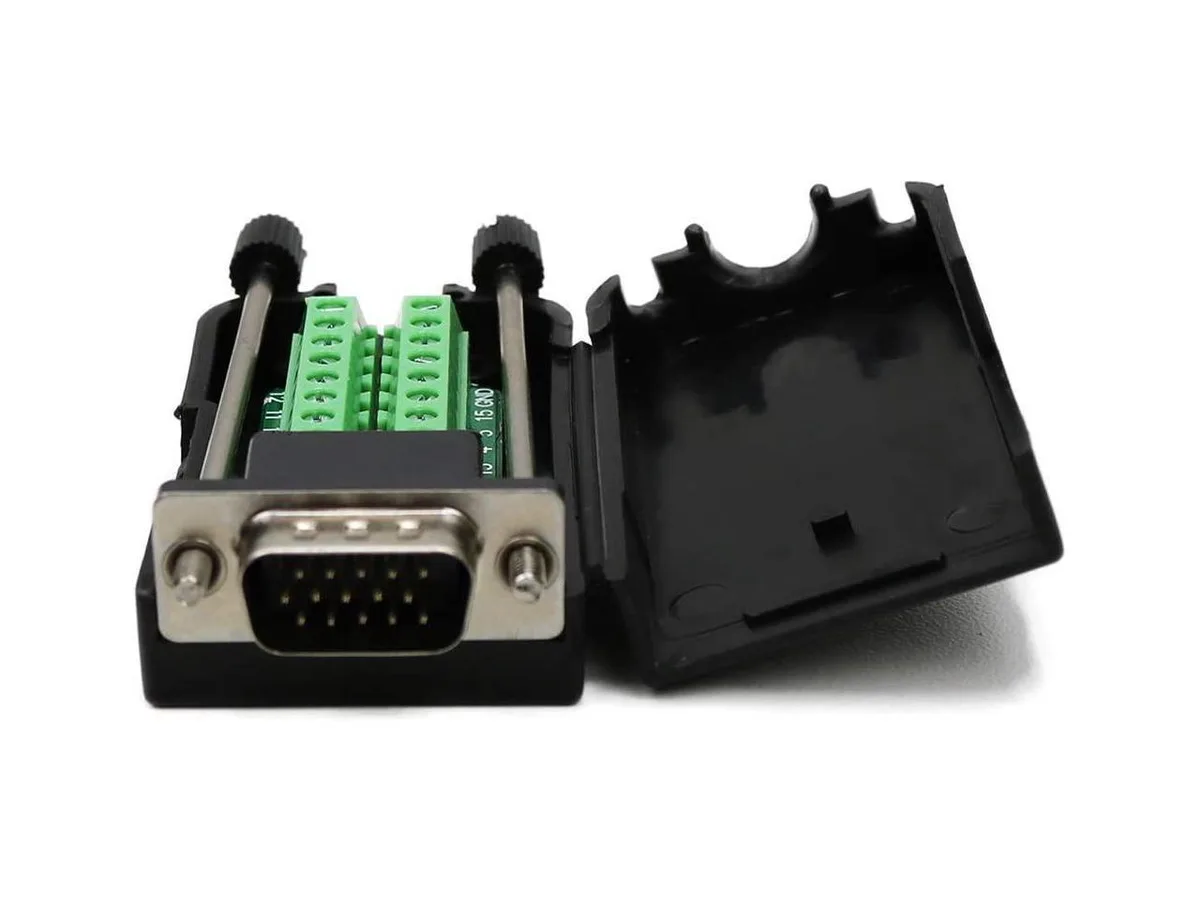

The BONAEVER DB15 male breakout board converts a 15-pin D-SUB VGA port into labelled screw terminals for custom wiring. A protective ABS+PC case encloses the FR-4 PCB and copper base to prevent short circuits. The kit includes the board, a nylon cable pressing plate, two screws and two long bolts for assembly.

Suits prototyping and legacy VGA repair

Engineers and hobbyists who need accessible termination points for 20-26 AWG wires at 0.5 A will find the clearly marked pins convenient. Users requiring a female connector, higher current capacity or a different pin count should select an alternative adapter.

Simple screw-terminal assembly

Wires are secured under the labelled terminals using a 0.2 Nm torque driver; the nylon pressing plate adds strain relief. The main difficulty is fitting all conductors inside the compact 76.83 x 34 x 20.6 mm case without pinching insulation.

Highlights

  • Prevents short circuits with included ABS+PC protection case
  • All-copper base improves contact and resists oxidation
  • Clear port labels simplify wiring and troubleshooting
  • FR-4 fiberglass PCB ensures reliable signal integrity
  • Supports 20-26AWG wires at 0.5A rated current

Specifications

Case TypeProtection Case

Questions about this item

What cable gauge do I need for the 15-pin VGA breakout terminals?

The board accepts 20-26AWG wire for each of the 15 signal terminals.

Will the 32 g board fit inside my existing 76.83 mm deep enclosure?

The assembled unit measures 76.83 x 34 x 20.6 mm, so verify your enclosure has at least that depth and height.

How can I confirm every VGA pin is connected correctly after wiring?

Each terminal is clearly labeled on the FR-4 PCB; use a multimeter to check continuity from each labeled pad to the corresponding DB15 pin.
