Black rectangular ABS case with green circuit board and 15-pin male connector visible

BONAEVER

BONAEVER DB15 Male Adapter with Case

SKU CH-9EMC-T8RAE

A DB15 male breakout board with labelled screw terminals, an ABS/PC case and cable gland for solder-free serial or industrial wiring

  • Case TypeProtection Case

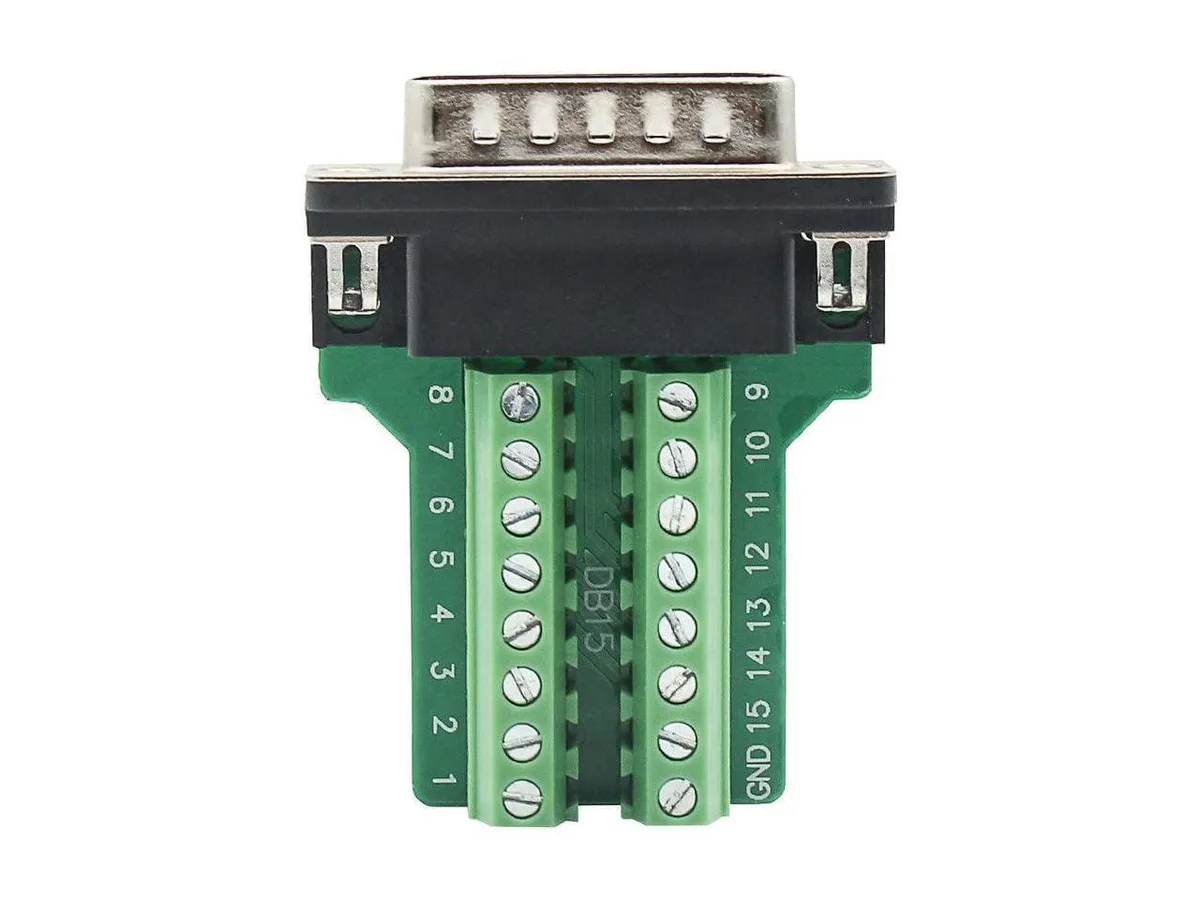

  • Ready-to-wire DB15 male adapter with screw terminals

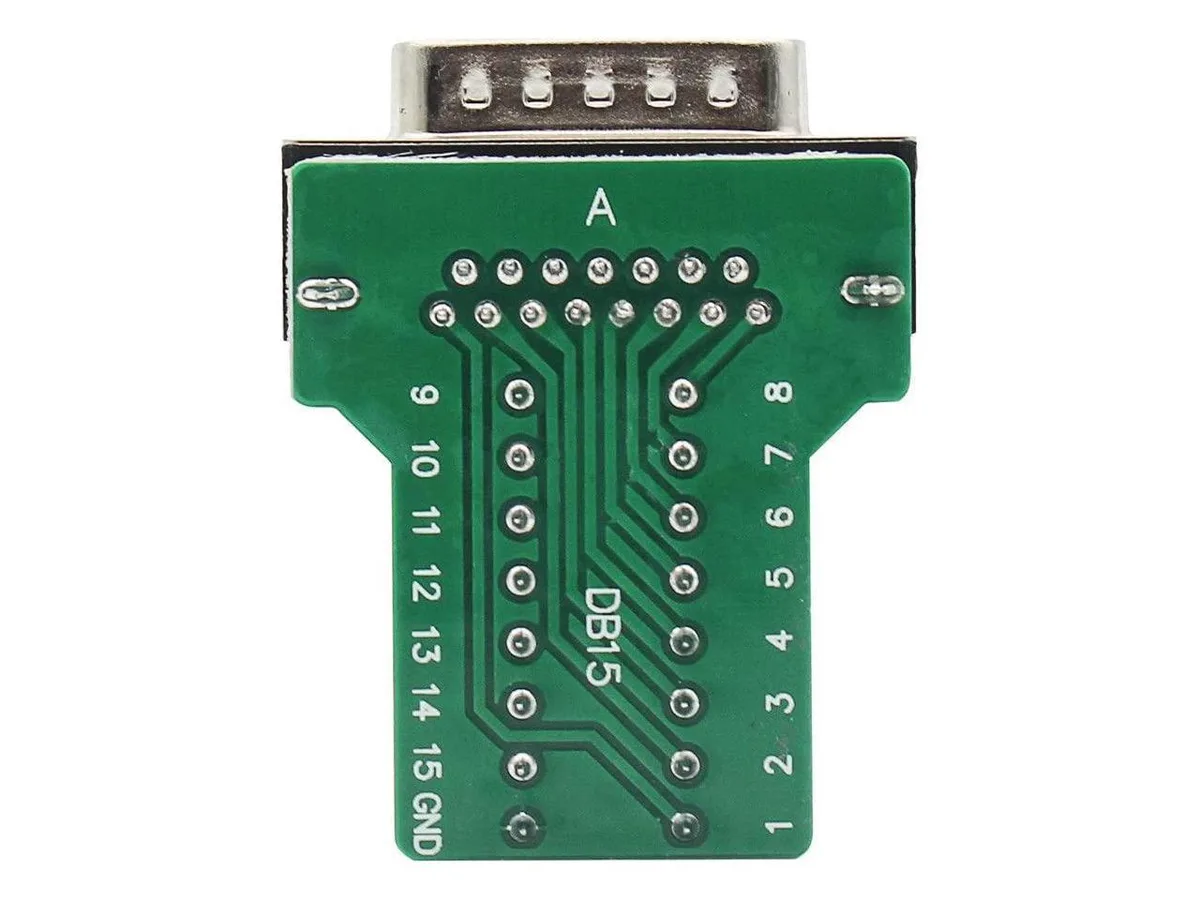

  • Labeled signal ports on a high-quality PCB carrier
  • Protective ABS+PC case with integrated cable strain relief
  • Nickel-plated copper pins rated for 10 A continuous current
  • Compact 60 x 42 x 20 mm footprint weighing 27 g

DB15 Male Breakout Adapter

The BONAEVER DB15 male adapter converts a 15-pin port into labelled screw terminals for industrial signal wiring. A copper base and nickel-plated contacts sit inside an ABS and PC protection case measuring 60 x 42 x 20 mm. The assembly weighs 27 g and includes a cable pressing plate, two screws and two long bolts for secure mounting.

Suits panel builders and technicians

Engineers who need a solder-free way to terminate 26–16 AWG wires into a DB15 interface will find the clearly marked ports and 0.2 Nm torque specification convenient. Installers requiring a female connector, a different pin count or a higher current rating than 10 A should look at alternative terminal blocks.

Handles 10 A per contact with 15 positions

The 3 mm terminal holes on 5 mm centres accept solid or stranded wire up to 16 AWG, giving ample headroom for typical control signals and low-power drives. The 10 mm cable entry limits overall bundle diameter, so applications with very thick multi-core cables may need a larger gland or a different enclosure.

Highlights

  • Ready-to-wire DB15 male adapter with screw terminals
  • Labeled signal ports on a high-quality PCB carrier
  • Protective ABS+PC case with integrated cable strain relief
  • Nickel-plated copper pins rated for 10 A continuous current
  • Compact 60 x 42 x 20 mm footprint weighing 27 g

Specifications

Case TypeProtection Case

Questions about this item

What cable diameter does the 10 mm cable hole on this DB15 male adapter accept?

The cable hole diameter is 10 mm or 0.4 inches, so any cable up to that size will fit through the case opening.

Will the 0.2 inch terminal centre spacing on this adapter match the screw terminals on my existing industrial controller?

The terminal holes are spaced 0.2 inches (5 mm) centre-to-centre, a common pitch for many industrial screw-terminal blocks.

How can I confirm the DB15 male adapter is making good contact after wiring?

Check that each inserted wire (26–16 AWG) is clamped by the nickel-plated copper terminals and that the case screws are tightened to 0.2 Nm (1.7 Lb-In.) for a solid connection.
