Green DB15 female breakout board in black ABS case with labeled screw terminals and cable gland

BONAEVER

BONAEVER DB15 Breakout Connector Female Adapter with Case

SKU CH-P1GA-Z4BZH

DB15 female breakout board converts a 15-pin port to labelled screw terminals for serial or industrial control wiring without soldering, supplied in a protective ABS case with cable gland and hardware

  • Case TypeProtection Case
  • 15-pin breakout simplifies serial wiring
  • Screw terminals eliminate soldering for quick setup
  • Nickel-plated copper pins resist oxidation
  • ABS+PC case protects connections
  • Compact 60 x 42 x 20 mm form factor

DB15 Female Breakout Adapter for Industrial Serial

This DB15 female breakout board converts a 15-pin port into clearly labelled screw terminals for industrial control and serial communication wiring. The board ships inside a protective ABS and PC case with a cable pressing plate, screws and nuts included. A copper base with nickel-plated pins provides oxidation-resistant contacts rated at 10A across a 26-16AWG wire range. Total dimensions are 60 x 42 x 20mm and weight is 27G.

Tool-Free Wiring with Labelled Terminals

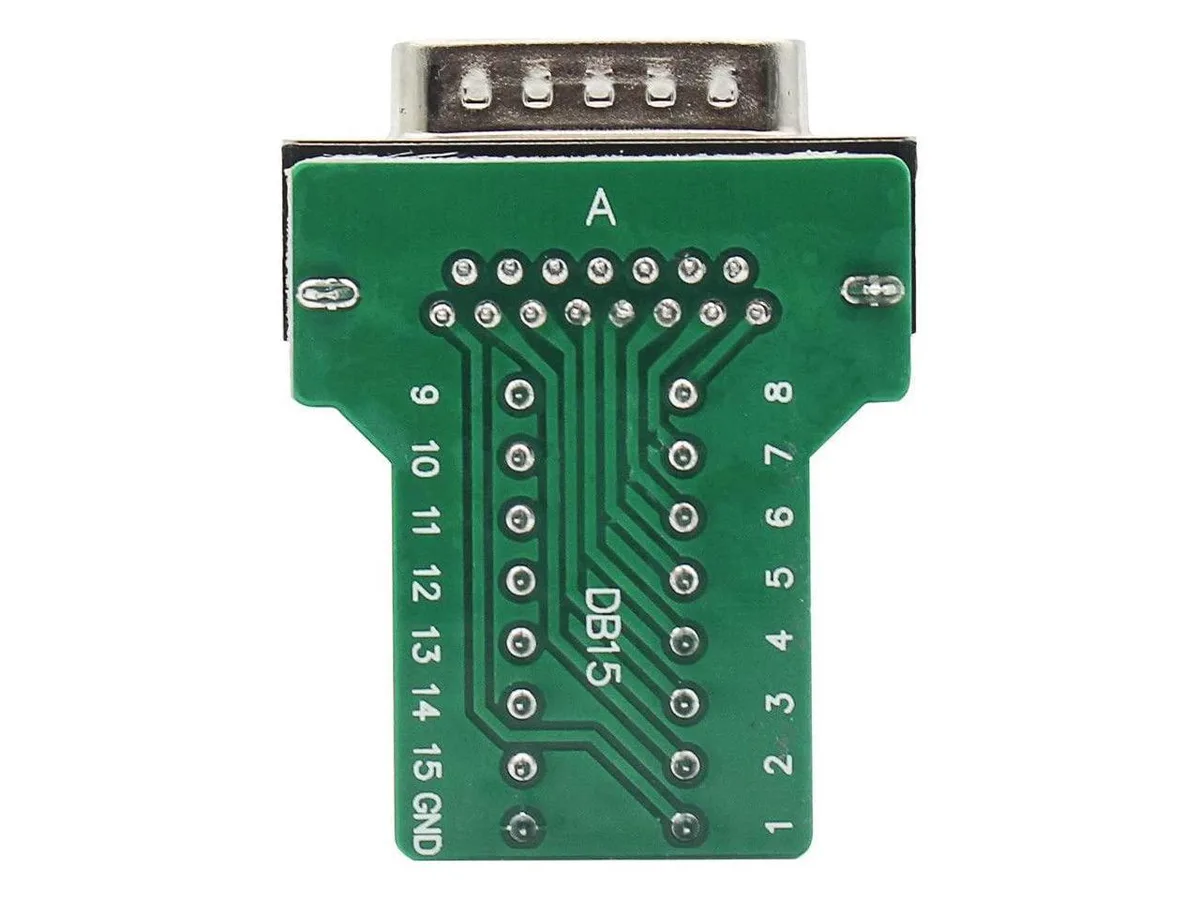

No soldering is required; each signal port is named on the high-quality PCB carrier for quick identification. Terminal holes measure 3mm in diameter with a 5mm centre distance, and the case includes a 10mm cable entry hole. Recommended tightening torque is 0.2Nm (1.7Lb-In) to secure wires without damaging the brass cage terminals.

Verify DB15 Female Port

Confirm your equipment presents a DB15 male connector that matches the female adapter pinout. Ensure the conductors you plan to use fall within the 26-16AWG range and that the 10A current rating suits the application. The 60 x 42 x 20mm case footprint and 10mm cable gland diameter must fit the available panel or enclosure space.

Highlights

  • 15-pin breakout simplifies serial wiring
  • Screw terminals eliminate soldering for quick setup
  • Nickel-plated copper pins resist oxidation
  • ABS+PC case protects connections
  • Compact 60 x 42 x 20 mm form factor

Specifications

Case TypeProtection Case

Questions about this item

How do I confirm the DB15 breakout adapter is working after wiring the screw terminals?

Check that each of the 15 labelled signal ports on the PCB shows continuity to its matching terminal block pin and that the nickel-plated copper needles make firm contact with inserted wires.

What ships in the box and what must I supply myself?

The package includes one DB15 female breakout board with ABS+PC case, one cable pressing plate, two screws and two nuts; you must provide 26-16 AWG wire and a 0.2 Nm torque tool for the terminal screws.

Which version should I choose for a 10 mm cable entry and 10 A rated current?

This single model has a 10 mm cable hole diameter, 10 A current rating, 15-pin DB15 female connector with nut, and 26-16 AWG wire range, so it fits those requirements directly.
