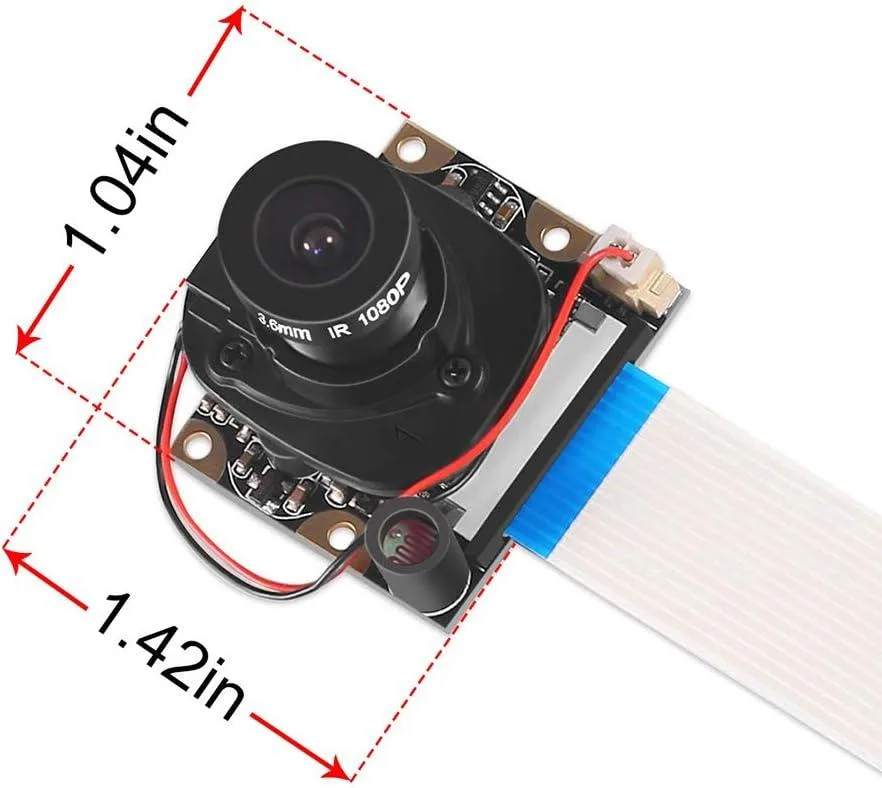

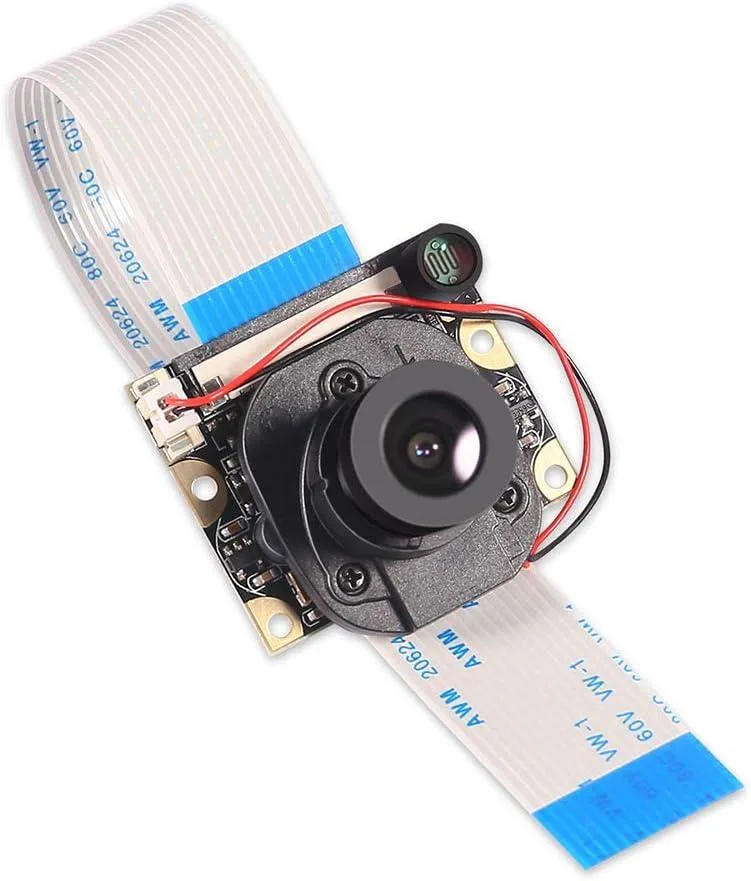

Small green circuit board with a silver adjustable lens module and a flexible ribbon cable attached

BONAEVER

BONAEVER 5MP OV5647 IR-Cut Camera Module 1080p30 720p60 640x480p90

SKU CH-7PVN-3YE4X

A 5MP OV5647 camera module with automatic IR-cut switching, adjustable focus, and CSI interface for Raspberry Pi boards

  • TypeOthers
  • Captures 2592 x 1944 stills for detailed images
  • Records 1080p at 30 fps and 720p at 60 fps for smooth video
  • Automatic IR-cut switching delivers clear day and night vision
  • Adjustable 3.6 mm lens with 72° field of view frames the scene
  • Dedicated CSI interface provides high-bandwidth connection to Raspberry Pi models

5MP OV5647 IR-Cut Camera for Raspberry Pi

This 5MP OV5647 camera module adds day and night vision to Raspberry Pi boards from Model 1 through Model 4. It captures 2592 x 1944 still images and records video at 1080p 30 fps, 720p 60 fps and 640 x 480p 90 fps. The built-in IR-Cut filter switches automatically between modes for clearer footage in changing light. Makers, educators and hobbyists monitoring plants, pets or security zones will find the adjustable-focus lens and 72-degree field of view practical for close-range projects.

CSI ribbon installation and focus adjustment

The module connects through the dedicated CSI ribbon cable that plugs into the Pi’s camera port; no soldering is required. Four mounting holes let you secure the board in an enclosure or on a bracket. Focus is set by turning the lens barrel by hand until the image is sharp — over-tightening can strip the fine threads, so stop when resistance increases. The 3.3 V power pin can drive an optional IR or flash LED, but the LED itself is not included.

Check CSI port and software before ordering

Verify that your Raspberry Pi model has an exposed CSI connector; the Compute Module and Zero variants need a different adapter board. The camera relies on the standard libcamera or legacy raspivid stack, so ensure your OS image includes the necessary kernel modules. No external driver install is needed, but the IR-Cut auto-switching only functions when the sensor receives sufficient ambient light to trigger the filter.

Highlights

  • Captures 2592 x 1944 stills for detailed images
  • Records 1080p at 30 fps and 720p at 60 fps for smooth video
  • Automatic IR-cut switching delivers clear day and night vision
  • Adjustable 3.6 mm lens with 72° field of view frames the scene
  • Dedicated CSI interface provides high-bandwidth connection to Raspberry Pi models

Specifications

TypeOthers

Questions about this item

How can I verify the OV5647 sensor is capturing 1080p video at 30 fps after connecting it to the CSI interface?

Use the Raspberry Pi camera tools to record a short clip at 1080p 30 fps, then play it back and check the reported resolution and frame rate in the file properties to confirm the sensor is performing as specified.

What comes in the box with the BONAEVER camera module, and do I need a separate CSI ribbon cable for my Raspberry Pi 4?

The module includes the camera board with the OV5647 sensor, adjustable 3.6 mm lens, IR-cut mechanism, and four mounting holes; a compatible CSI ribbon cable for your specific Pi model must be purchased separately if not already owned.

Which version of this 5MP OV5647 module should I choose for a Raspberry Pi 3 Model B+ project needing night vision?

This single module version supports all listed Pi models including the 3 B+, provides automatic IR-cut switching for day and night use, and delivers 1080p30, 720p60, and 640x480p90 video — choose it if those resolutions and the 72-degree field of view fit your project.
