Rectangular 5.25 bay front panel with multiple ports and card slots

BONAEVER

BONAEVER 5.25 Bay Protection Case

SKU CH-7GVM-XCCV7

A 5.25-inch bay front panel adds USB 3.0, USB 2.0, eSATA, SATA, audio and a multi-format card reader to a desktop PC

  • Case TypeProtection Case
  • ABS front panel resists rust and scratches for lasting durability
  • 20-pin interface connects USB 3.0, USB 2.0, eSATA, SATA, audio and power in one bay
  • Dual USB 3.0 ports deliver up to 5.0Gbps transfer speed for fast file access
  • All-in-one card reader supports SD, MMC, CF, MS, TF and M2 formats
  • Fits standard 5.25 bay to add front-panel connectivity without extra cables

5.25 Bay Front Panel Hub

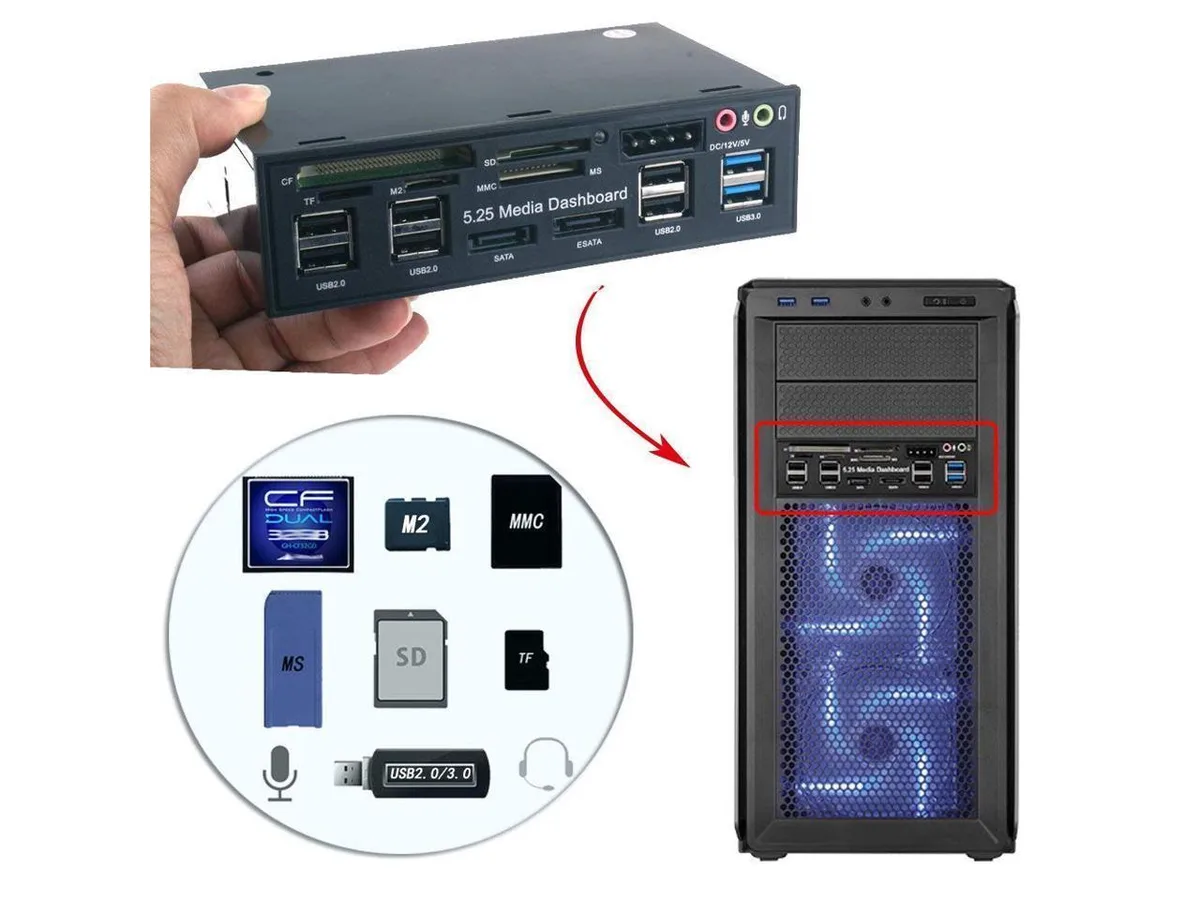

This 5.25 inch bay device adds a front-panel media dashboard to a desktop PC. It combines USB 3.0 and USB 2.0 ports, eSATA and SATA connectors, audio jacks and an all-in-one card reader in a single ABS housing. The unit draws power through a 4 pin IDE or DC 12V connection and fits standard drive bays. It is built for system builders who want external connectivity without opening the case.

Interface Speed Limits

USB 3.0 ports reach 5.0 Gbps while USB 2.0 ports reach 480 Mbps. The eSATA interface runs at 3.0 Gbps and the internal SATA port at 1.5 Gbps. The card reader accepts SD, MMC, CF, MS, TF and M2 media but reads only one card at a time. Builders needing faster SATA throughput or simultaneous multi-card access will find this panel insufficient.

20 Pin Internal Connector

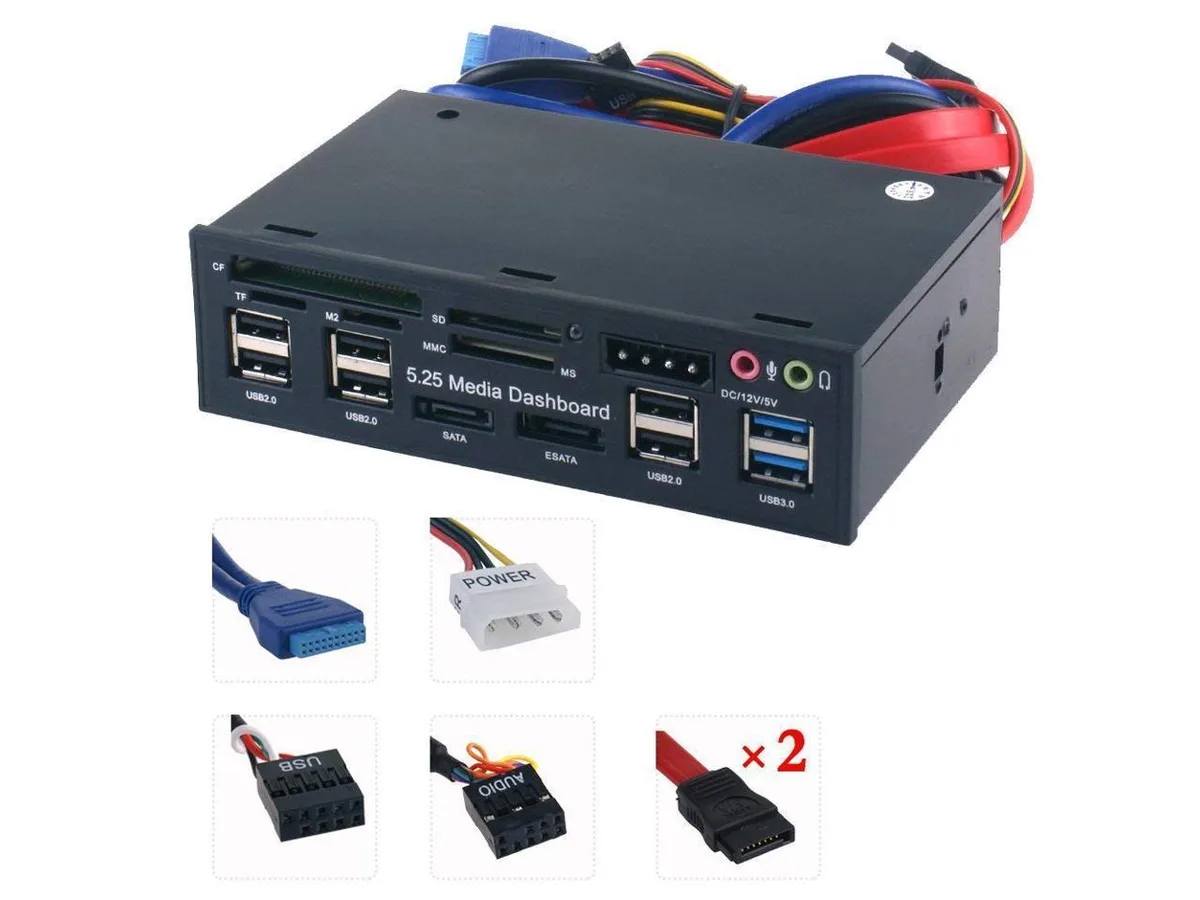

Installation requires a 20 pin motherboard header for the front-panel USB and audio links. The 4 pin power plug must be oriented correctly to avoid a short circuit. Systems lacking a spare 20 pin header or a compatible 4 pin power lead cannot use this dashboard.

Highlights

  • ABS front panel resists rust and scratches for lasting durability
  • 20-pin interface connects USB 3.0, USB 2.0, eSATA, SATA, audio and power in one bay
  • Dual USB 3.0 ports deliver up to 5.0Gbps transfer speed for fast file access
  • All-in-one card reader supports SD, MMC, CF, MS, TF and M2 formats
  • Fits standard 5.25 bay to add front-panel connectivity without extra cables

Specifications

Case TypeProtection Case

Questions about this item

Which version of the 5.25 bay protection case should I choose?

Only one version is offered — a single front-panel unit that fits a standard 5.25 bay and combines USB 3.0, USB 2.0, eSATA, SATA, audio and an all-in-one card reader.

What does the 5.0 Gbps USB 3.0 figure mean once installed?

Each of the two USB 3.0 host ports can reach up to 5.0 Gbps transfer speed when connected to a compatible device and motherboard header.

What interface does the eSATA port use and what speed does it cap at?

The eSATA port uses the eSATA interface and is rated for up to 3.0 Gbps transfer speed in practice.
