Black rectangular PA66 nylon junction box with three cable glands and silicone seals

BONAEVER

BONAEVER 3-Way Y Junction Box IP68 40A 450V 5-12mm

SKU CH-W98R-W6X4J

Three-way junction box with IP68 waterproof rating accepts 5-12 mm cables at up to 40 A and 450 V

  • TypeElectrical Boxes
  • IP68 rated for 4 m water column for 120 hours
  • Handles up to 40 A at 450 V for reliable power distribution
  • Accepts 5-12 mm cables with dual silicone seals for watertight entry
  • PA66 nylon housing resists UV, flame and corrosion in outdoor use
  • Compact 4.84 × 3.22 × 1.65 in enclosure fits tight installations

3-Way Y Junction Box IP68

The BONAEVER junction box provides a three-way Y connection with one input and two outputs rated at 40A and 450V. It accepts cable diameters from 5-12mm and cross-sectional areas of 0.5-6.0mm². The enclosure achieves IP68 protection tested at 4 metres water column for 120 hours. It operates across a temperature range of -40 to 105°C.

Integrated Injection Moulded Enclosure

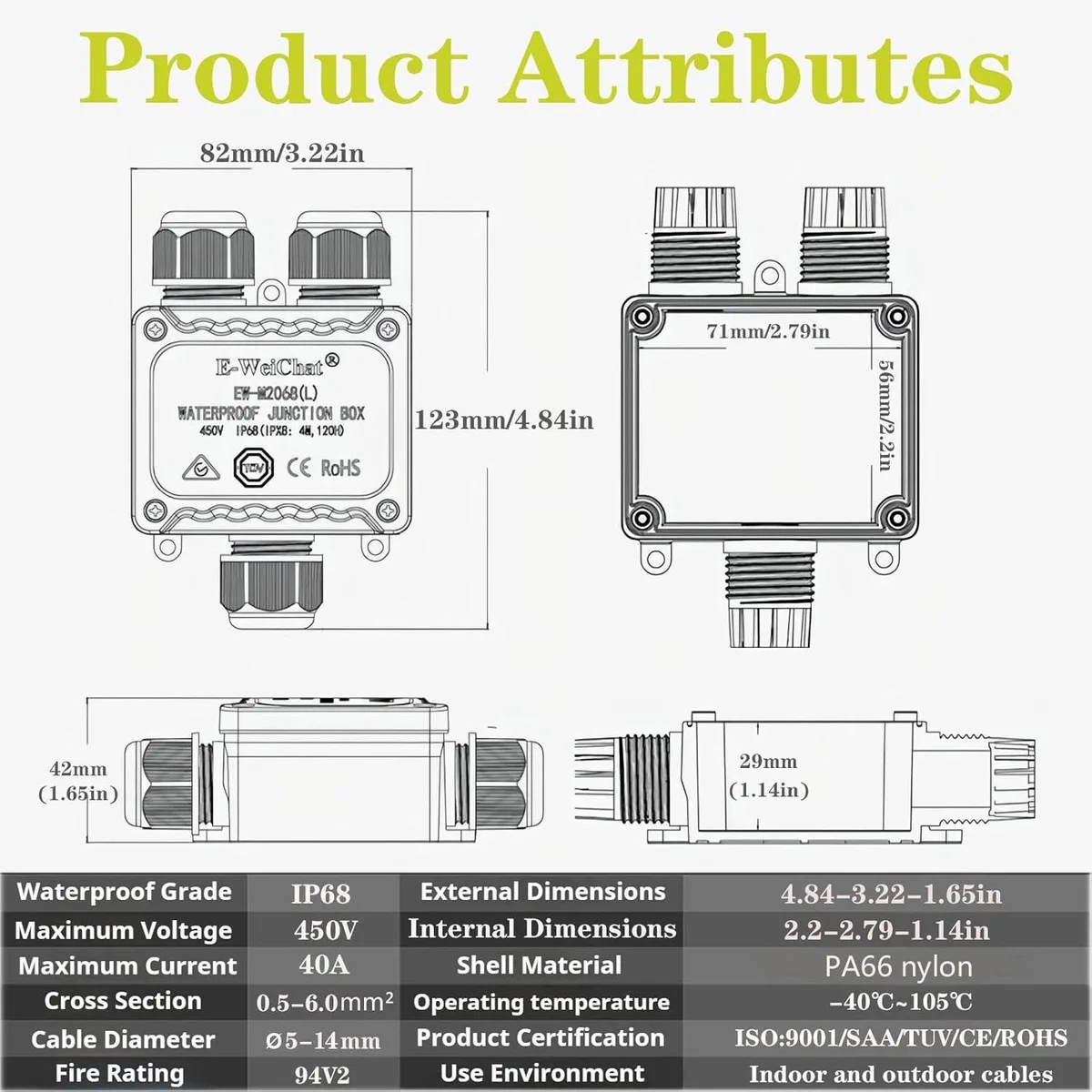

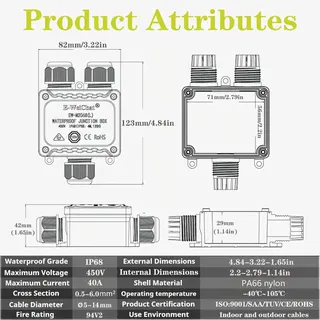

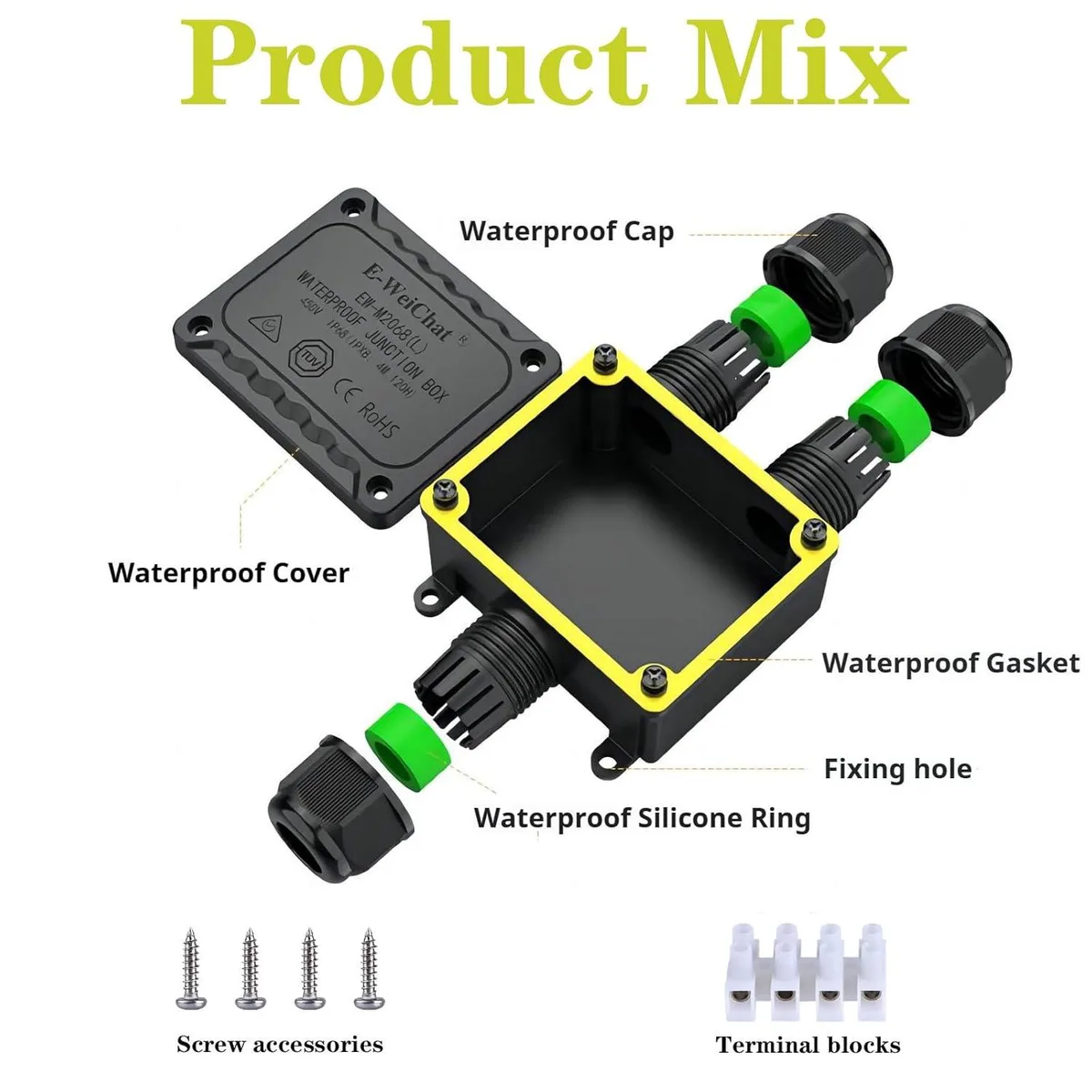

The box uses integrated injection moulded PA66 nylon housing that delivers waterproof, dustproof, flame-retardant and UV resistant performance. Two sets of silicone sealing pads accommodate cables from 5-9mm and 9-12mm. External dimensions measure 4.84 by 3.22 by 1.65 inches with internal space of 2.79 by 2.2 by 1.14 inches. This construction suits outdoor lighting, street lights, buried lights and garden floodlights.

Sustained Environmental Sealing

Under continuous immersion the IP68 seal maintains integrity for the full 120-hour test duration at 4 metres depth. The PA66 material resists UV degradation and temperature cycling from -40 to 105°C without compromising the silicone gasket compression. Flame-retardant properties persist throughout extended operation. Installations needing more than two output branches or cables outside the 5-12mm range require a different enclosure design.

Highlights

  • IP68 rated for 4 m water column for 120 hours
  • Handles up to 40 A at 450 V for reliable power distribution
  • Accepts 5-12 mm cables with dual silicone seals for watertight entry
  • PA66 nylon housing resists UV, flame and corrosion in outdoor use
  • Compact 4.84 × 3.22 × 1.65 in enclosure fits tight installations

Specifications

TypeElectrical Boxes

Questions about this item

What is the maximum continuous current the 40A rated terminals can handle before overheating?

The junction box is rated for ≤ 40A continuous current on its wiring board at ≤ 450V.

How much heat does the PA66 nylon body dissipate when the box runs at full load all day?

The PA66 nylon housing is flame-retardant and rated for a working temperature range of -40 to 105 °C.

Which cable glands and silicone seals do I need to have on hand for a 9mm diameter outdoor cable?

The box includes two sets of silicone sealing pads sized for 5-9mm and 9-12mm cable diameters.
