Five small black cylindrical M20 waterproof junction boxes with clamping nuts and rubber seals

BONAEVER

BONAEVER 2-Way 3-Pin M20 Junction Box IP68 5-Pack

SKU CH-Q09K-2DYHA

IP68-rated M20 junction box joins two 3-pin cables from 5 to 12 mm, rated 450 V and 24 A, submersible to 3.5 m, five per pack

  • TypeElectrical Boxes
  • IP68 rating protects against water ingress up to 3.5 metres
  • Three silicone ring sizes cover cable diameters from 5 to 12 mm
  • Rated for 450 V and 24 A for outdoor lighting circuits
  • M20 2-way 3-pin layout enables quick cable repair or extension

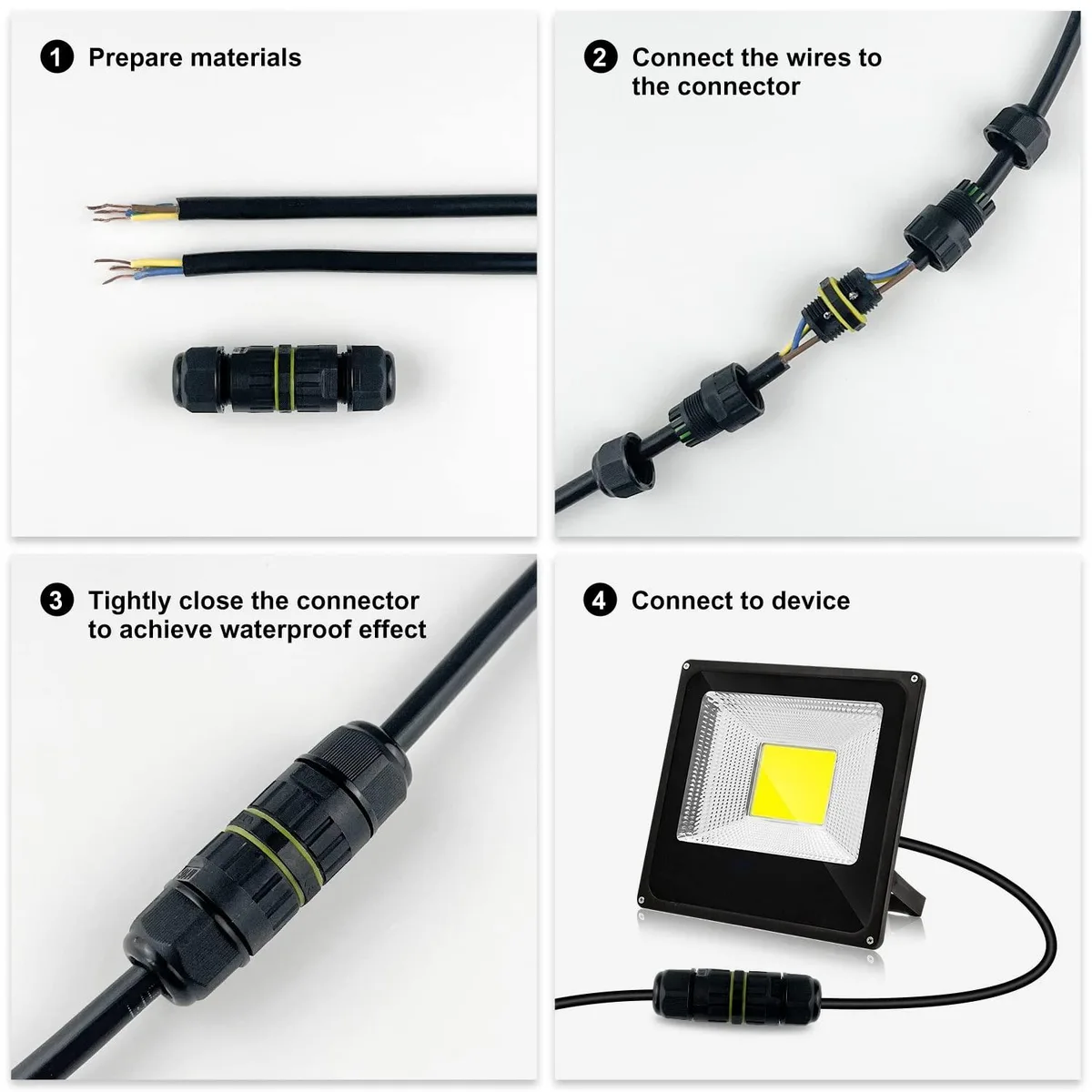

  • Tool-free design installs with only a screwdriver in tight spaces

Outdoor cable junction box

The BONAEVER 2-way 3-pin M20 junction box provides a certified connection point for joining or extending power cables in exterior environments. Each pack contains five units rated for voltages below 450 V and currents below 24 A, making them suitable for outdoor lighting circuits and general external wiring. The IP68 rating confirms protection against dust ingress and continuous immersion up to 3.5 m depth.

Cable diameter range 5 to 12 mm

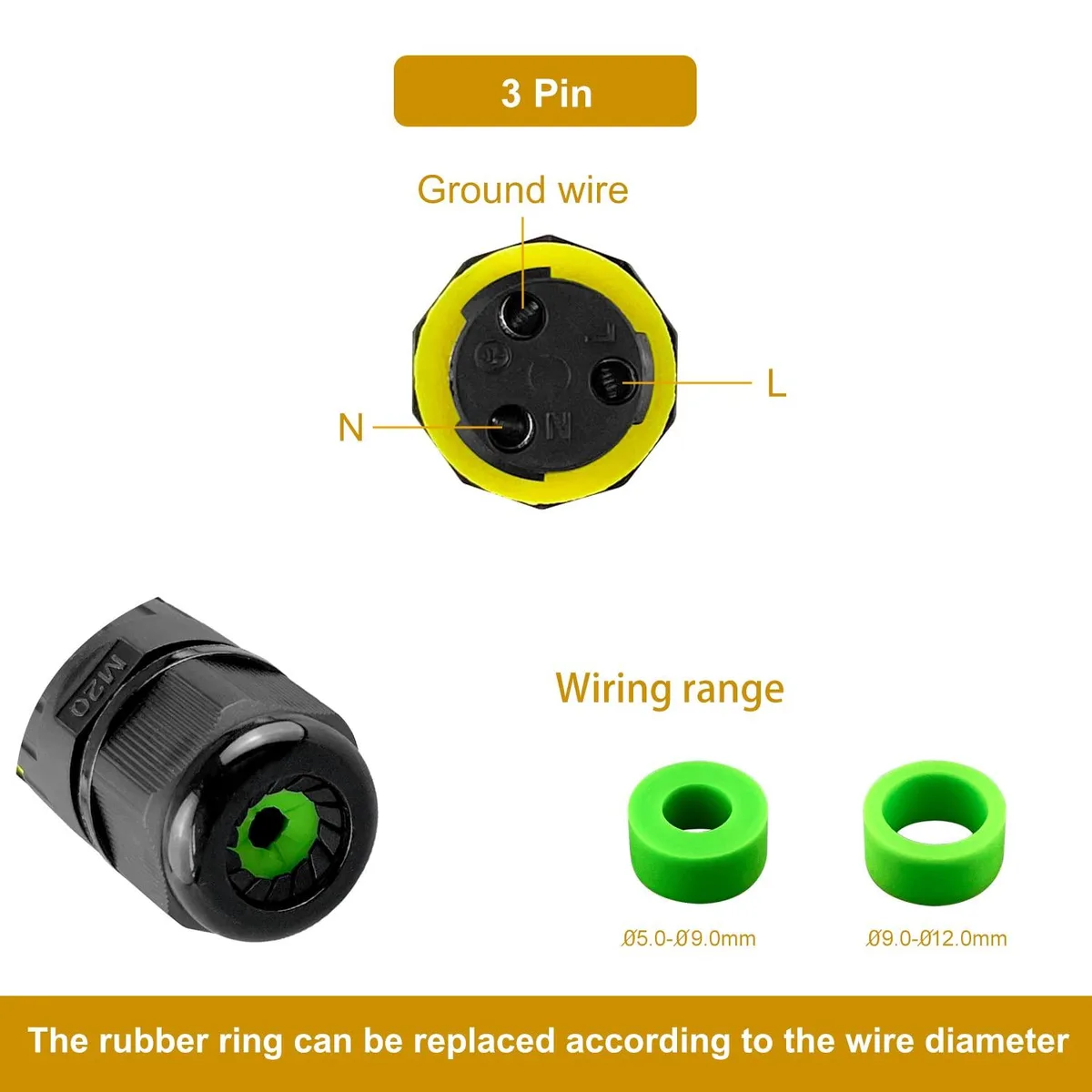

Three interchangeable silicone rings accommodate cables from 5 mm to 12 mm outer diameter, ensuring a watertight seal for the specific conductors on site. Selecting the correct ring size is the single specification that determines whether the connector will maintain its IP68 integrity. An undersized or oversized ring will compromise the moisture and dust barrier.

Sustained immersion and UV exposure

The built-in rubber ring and clamping nut maintain the IP68 seal during prolonged submersion and resist UV degradation in permanent outdoor installations. Under continuous electrical load up to the rated 24 A the connector body remains stable without the overheating risk that can appear in short-term test conditions. The enclosure is not intended for permanent immersion deeper than 3.5 m or for voltages exceeding 450 V.

Highlights

  • IP68 rating protects against water ingress up to 3.5 metres
  • Three silicone ring sizes cover cable diameters from 5 to 12 mm
  • Rated for 450 V and 24 A for outdoor lighting circuits
  • M20 2-way 3-pin layout enables quick cable repair or extension
  • Tool-free design installs with only a screwdriver in tight spaces

Specifications

TypeElectrical Boxes

Questions about this item

What does the IP68 rating mean for this M20 junction box once it is installed?

IP68 means the box is dust-tight and can stay submerged in water up to 3.5 metres deep without moisture or dust ingress.

How does the M20 thread size limit the cables I can use with these connectors?

The M20 thread accepts cables from 5 mm to 12 mm diameter using the three supplied silicone rings.

What clearance do I need behind the mounting surface for the 2-way 3-pin body?

The compact body fits in tight spaces and only requires a screwdriver to secure the clamping nut and cable gland.
