Two aqua duplex fibre cables with LC connectors in a clear bag

Bolton Technical

Bolton Technical LC-LC OM3 Duplex Patch Cable 2m 50/125 2-Pack 2 in 1 accessory

SKU CH-N007-4DZ13

Two-meter LC duplex OM3 fibre patch cables in a 2-pack, 50/125 micron core for 10 Gb multimode links with 3.5 dB/km attenuation at 850 nm

  • Supports 10G Ethernet and Fiber Channel with laser-optimised OM3 multimode fibre
  • Meets IEC 60793-2-10 Type A1a.2 and RoHS for dependable optical performance
  • Low 3.5 dB/km attenuation at 850 nm and 1.5 dB/km at 1300 nm
  • 1500 MHz-km bandwidth suits backbone, horizontal and equipment links
  • Two-metre LC duplex pair supplied as a 2-pack for immediate deployment

LC Duplex Patch Cable 2-Pack

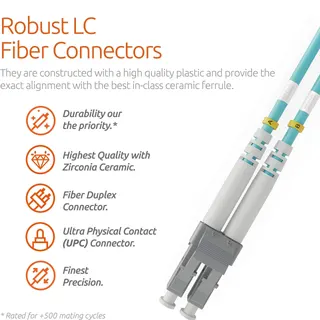

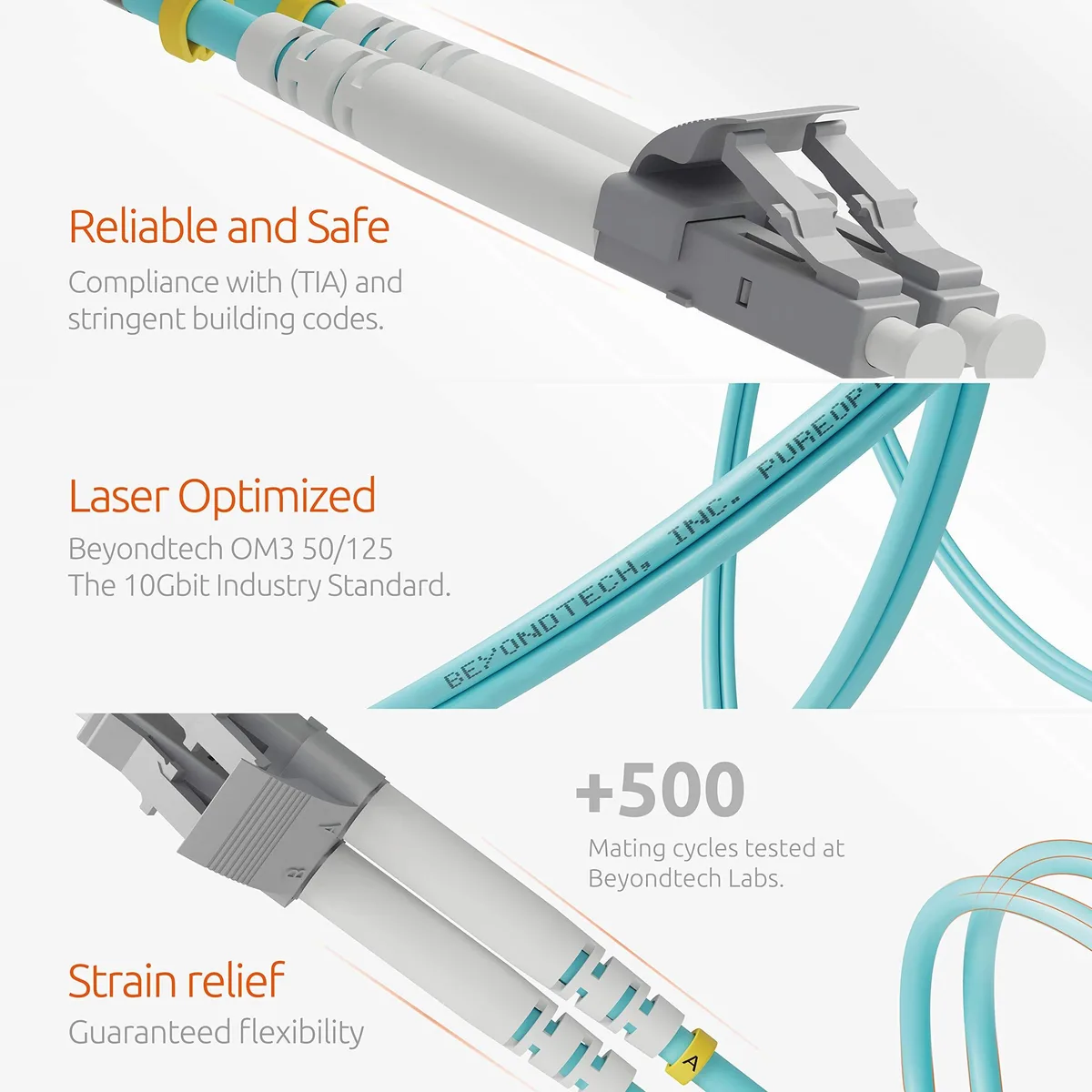

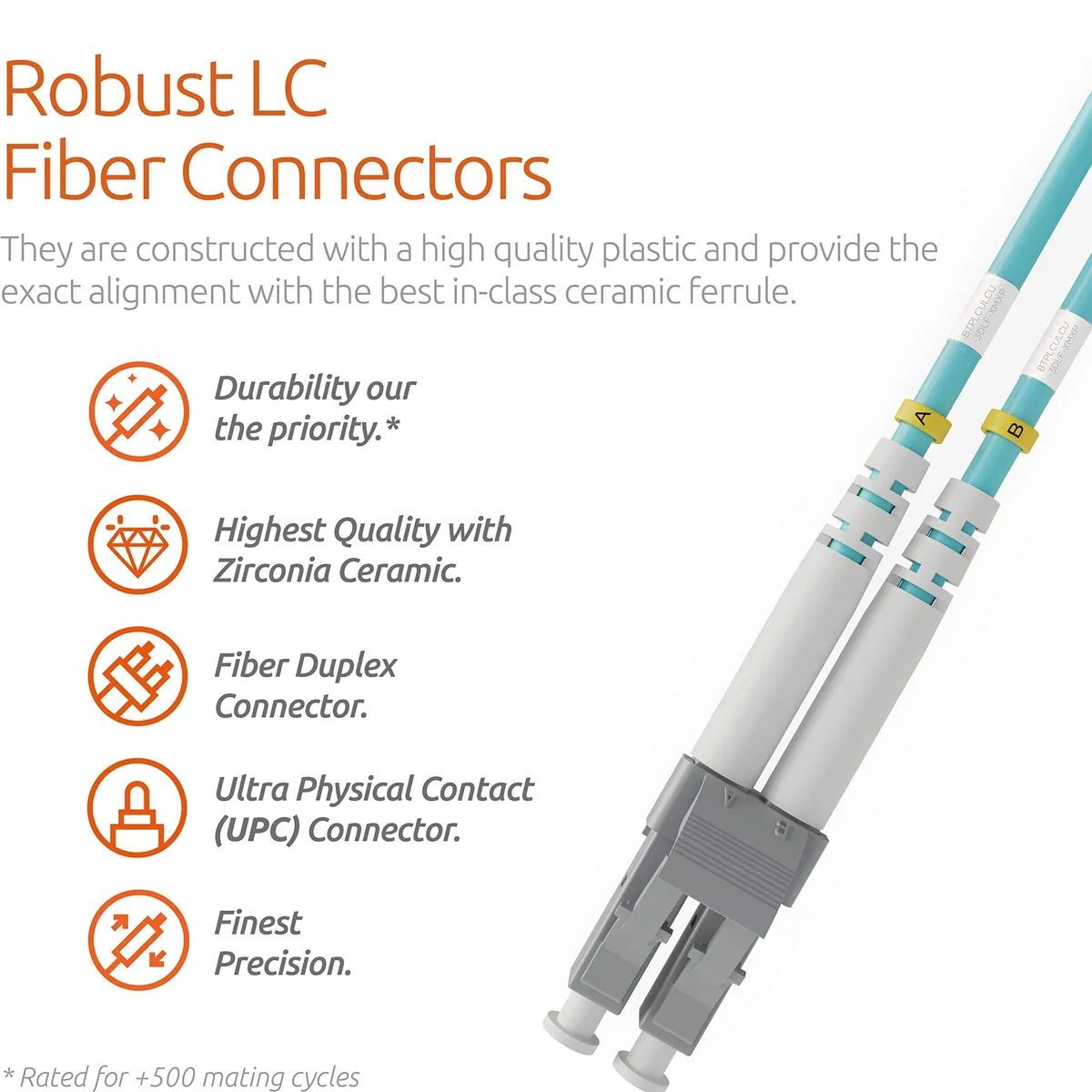

This two-pack of LC to LC multimode fibre patch cables connects transceivers, switches and patch panels in LAN, SAN and data-centre environments. Each 2 metre cable uses a 50/125 micron core optimised for OM3 10 gigabit links, supporting Gigabit Ethernet, Fibre Channel and other multimode applications.

LSZH Jacket and IEC Compliance

The low-smoke zero-halogen sheath meets IEC 60793-2-10 Type A1a.2 specifications and RoHS requirements, making the cables suitable for structured cabling in commercial and enterprise buildings. Laser-optimised OM3 construction provides 3.5 dB/km attenuation at 850 nm and 1.5 dB/km at 1300 nm for short-to-medium distance runs.

Ready-to-Install Duplex Pair

Supplied as a matched duplex pair, the cables eliminate the need to source individual jumpers for bidirectional links. The pre-terminated LC connectors reduce installation time in backbone, horizontal and equipment connections while the 1500 MHz-km bandwidth rating supports consistent performance across the link. Not suited for single-mode infrastructure or longer-haul campus backbones requiring OS2 fibre.

Highlights

  • Supports 10G Ethernet and Fiber Channel with laser-optimised OM3 multimode fibre
  • Meets IEC 60793-2-10 Type A1a.2 and RoHS for dependable optical performance
  • Low 3.5 dB/km attenuation at 850 nm and 1.5 dB/km at 1300 nm
  • 1500 MHz-km bandwidth suits backbone, horizontal and equipment links
  • Two-metre LC duplex pair supplied as a 2-pack for immediate deployment

Specifications

No published specifications for this item yet.

Questions about this item

What bandwidth does the OM3 multimode fibre support for 10G Ethernet links?

The laser-optimised OM3 cable is rated at 1500 MHz-km, suitable for 10G multimode fibre networks over short-to-medium distances.

What connector type and fibre dimensions are needed to mate with this patch cable?

Each end uses an LC duplex connector on 50/125 µm multimode fibre, so the mating ports must accept LC duplex plugs with the same core/cladding size.

How should the duplex LC connectors be oriented when plugging into a transceiver, and what mistake is common?

The duplex clip keeps Tx and Rx fibres paired; a common error is reversing the two connectors so transmit goes to receive, which breaks the link until swapped.
